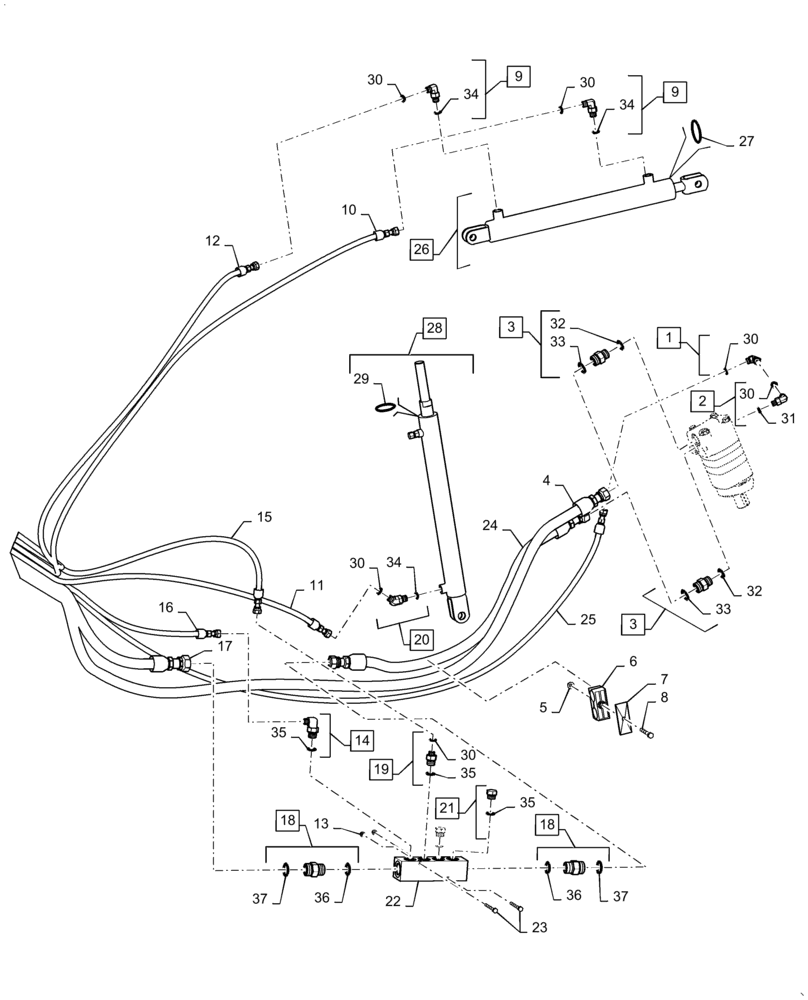

Запчасти Case IH DH363 (35.420.AB[02]) - DOUBLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 36FT (35) - HYDRAULIC SYSTEMS

1

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 30

1шт.

2

87681199

90 ELBOW

Incl 30 - 31

1шт.

3

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 32 - 33

2шт.

4

73356261

HOSE

From Return Line Left Hand Knife Port

1шт.

5

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

6

87625027

CLAMP

1шт.

7

87625028

CLAMP

1шт.

8

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

9

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 30, 34

2шт.

10

73356557

HYDRAULIC HOSE

From Left Hand FORE and AFT Cylinder Rear Port

1шт.

11

73356515

HOSE

From Left Hand Reel Lift Cylinder Top Port

1шт.

12

73356269

HOSE

From FORE and AFT Valve "A" Port

1шт.

13

86532

LOCK NUT

2шт.

14

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 35

1шт.

15

73356284

HOSE

From FORE and AFT Valve "T" Port

1шт.

16

73356278

HOSE

From "P" Port RH Deck Shift Valve

1шт.

17

73356258

HOSE

Return Line to Knife Block "Ret B" Port

1шт.

18

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 36 - 37

2шт.

19

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 30, 35

1шт.

20

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 30, 34

1шт.

21

214389

PLUG,3/4" - 16 ORB

Incl 35

2шт.

22

73356199

MANIFOLD

4 Station Manifold

1шт.

23

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

24

47458419

HYDRAULIC HOSE

1шт.

25

73356262

HOSE

To Return 2 Station Manifold (Center Near Left Hand Side)

1шт.

26

73356202

HYDRAULIC CYLINDER

Incl 27, RH FORE and AFT Cylinder

1шт.

Slave Cylinder

1шт.

27

73356287

SERVICE KIT

1шт.

28

73356203

HYDRAULIC CYLINDER

Incl 29

1шт.

Slave Cylinder

1шт.

29

84542601

SEAL KIT

1шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

31

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

32

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
