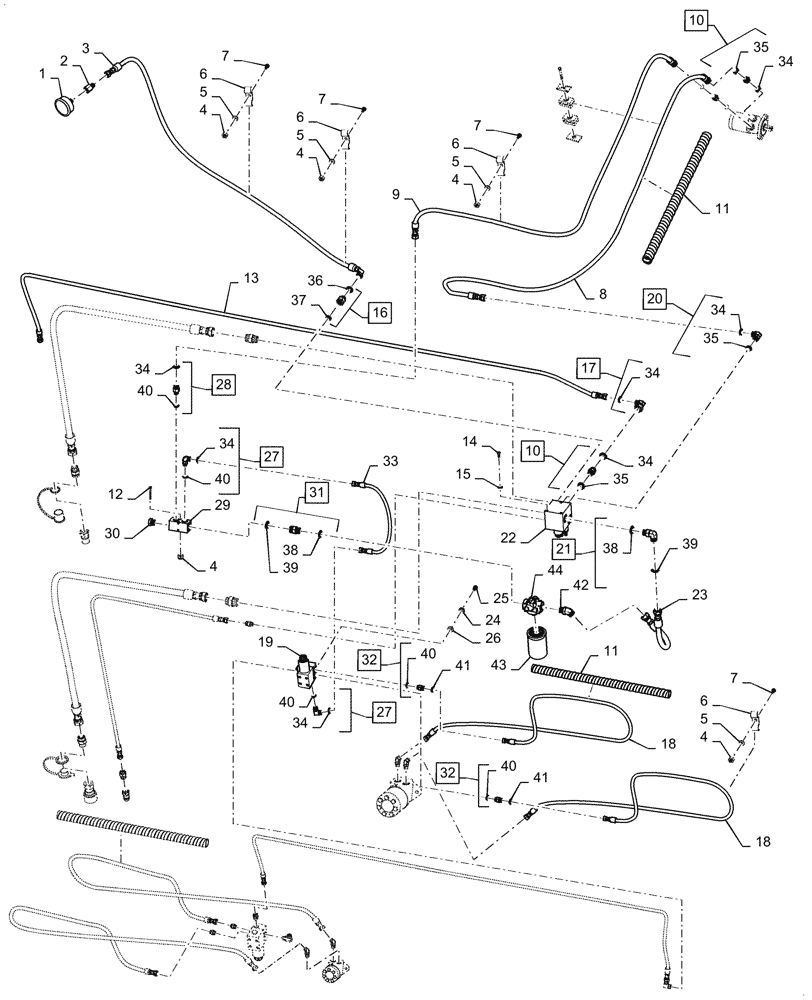

Запчасти Case IH DH363 (35.420.AB[01]) - DOUBLE SWATH, SOLID REEL, DRAPER DRIVE HYDRAULIC 36FT (35) - HYDRAULIC SYSTEMS

1

73356206

GAUGE

1шт.

2

47369945

ADAPTER

1шт.

3

73356386

HOSE

1шт.

4

86532

LOCK NUT

6шт.

5

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

6

86563519

CLAMP

4шт.

7

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

73356304

HOSE

1шт.

9

73356308

HOSE

1шт.

10

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 34 - 35

3шт.

11

84391397

SLEEVE

2шт.

12

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

13

47458418

HYDRAULIC HOSE

1шт.

14

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

86564734

COUPLING

2шт.

16

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 36 - 37

1шт.

17

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

Incl 34

1шт.

18

73356520

HOSE

2шт.

19

87053580

VALVE

1шт.

20

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Incl 34 - 35

1шт.

21

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 41 - 42

1шт.

22

73356289

MANIFOLD

1шт.

23

73356387

HOSE

1шт.

24

322358

2шт.

25

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

27

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

Incl 34, 40

2шт.

28

87351379

HYD CONNECTOR

Incl 34, 40

1шт.

29

73356198

MANIFOLD

1шт.

30

163410

PLUG,1-1/16" - 12 ORB

1шт.

31

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 38 - 39

1шт.

32

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 40 - 41

2шт.

33

73356365

HOSE

1шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

35

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

36

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

39

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

41

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

42

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

43

87050598

HYDRAULIC OIL FILTER

1шт.

44

83976539

FILTER HEAD

Housing

1шт.
