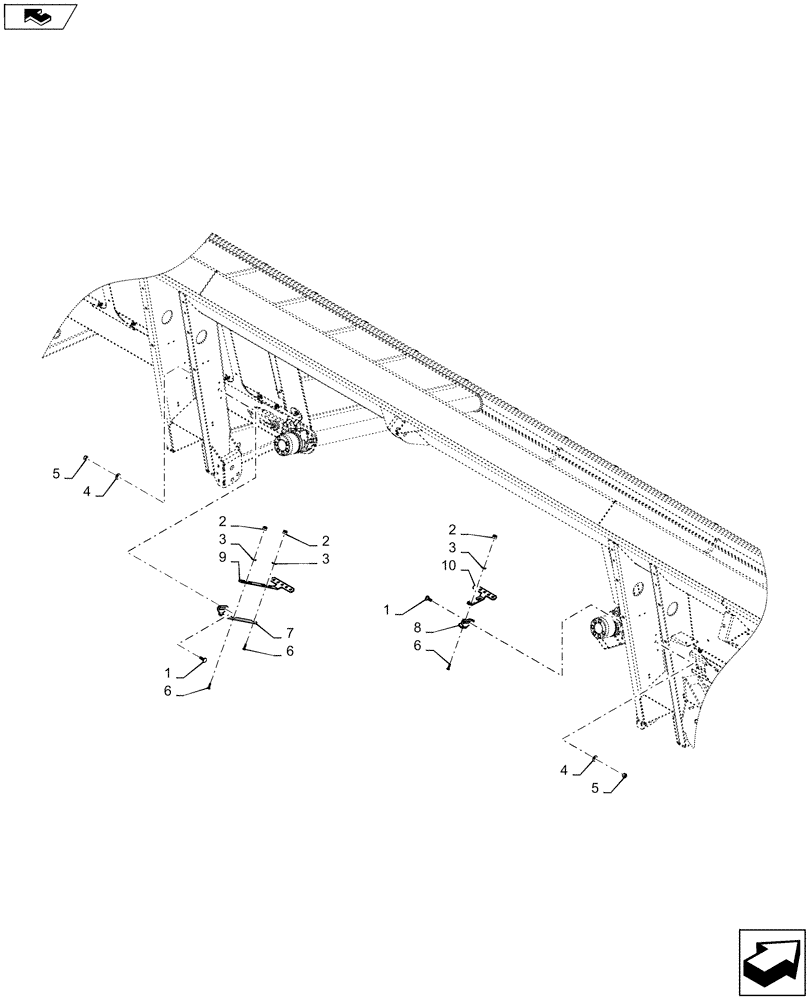

Запчасти Case IH DH363 (58.130.AJ) - DRAPER, RESTRAINING BAR ASSY, SINGLE SWATH (58) - ATTACHMENTS/HEADERS

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

2

86532

LOCK NUT

4шт.

3

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

5

88902

NUT,3/8"-16

2шт.

6

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

7

73356146

BAR

Restrainer Short, LH

1шт.

8

73356147

BAR

Restrainer Short, RH

1шт.

9

73356148

BAR

Restrainer Long, LH

1шт.

10

73356149

BAR

Restrainer Long, RH

1шт.
