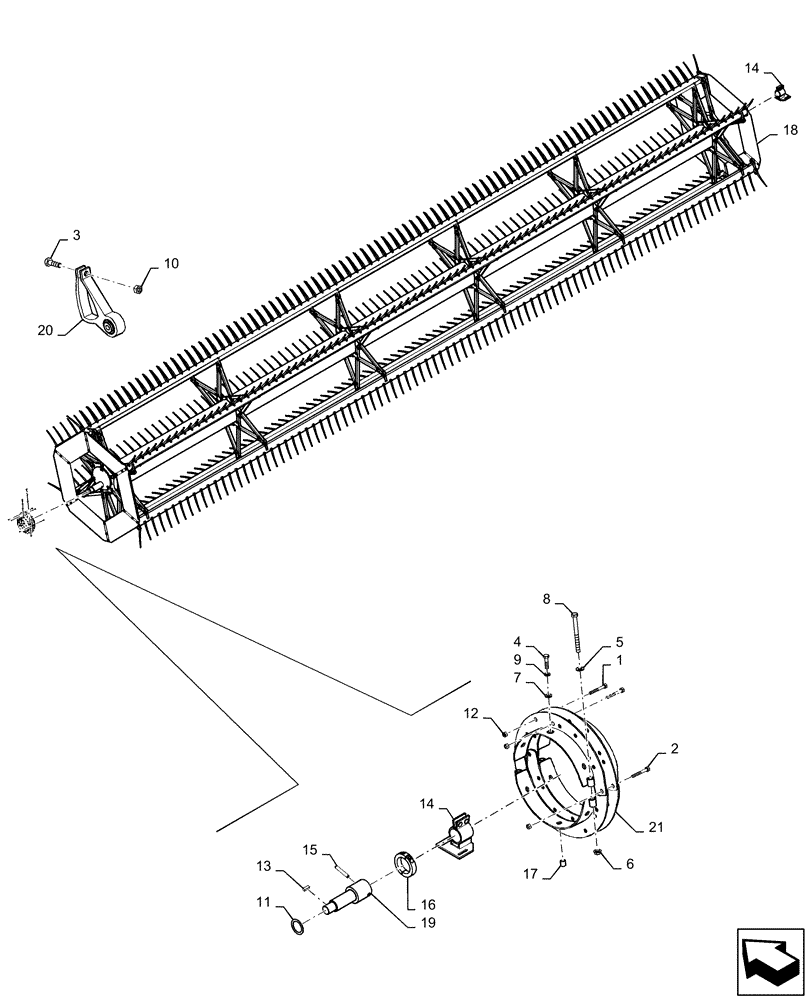

Запчасти Case IH DH303 (58.101.AM[01]) - UII REEL, SINGLE, W/PLASTIC & STEEL FINGERS, 6-BAT (58) - ATTACHMENTS/HEADERS

1

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

20шт.

2

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

4шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

12шт.

4

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

24шт.

5

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

8шт.

6

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

7

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

24шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

10

280736

NUT,5/16"-18, GC

12шт.

11

86562200

WASHER

Shaft

1шт.

12

280129

NUT,1/4"-20

24шт.

13

86565968

KEY

1шт.

14

47418752

MOUNT

Reel Clamp Assy

2шт.

15

70923396

PIN,12.7mm OD x 76.2mm L

1шт.

16

73356393

COLLAR

1шт.

17

73356398

INSERT

24шт.

18

NSS

NOT SOLD SEPARAT

Reel, UII Single W/Plastic & Steel Fingers, 6-Bat

1шт.

19

73356794

SHAFT

Reel Drive

1шт.

20

73356395

KNUCKLE

Control

12шт.

21

73356396

REINFORCEMENT

Clamp

8шт.
