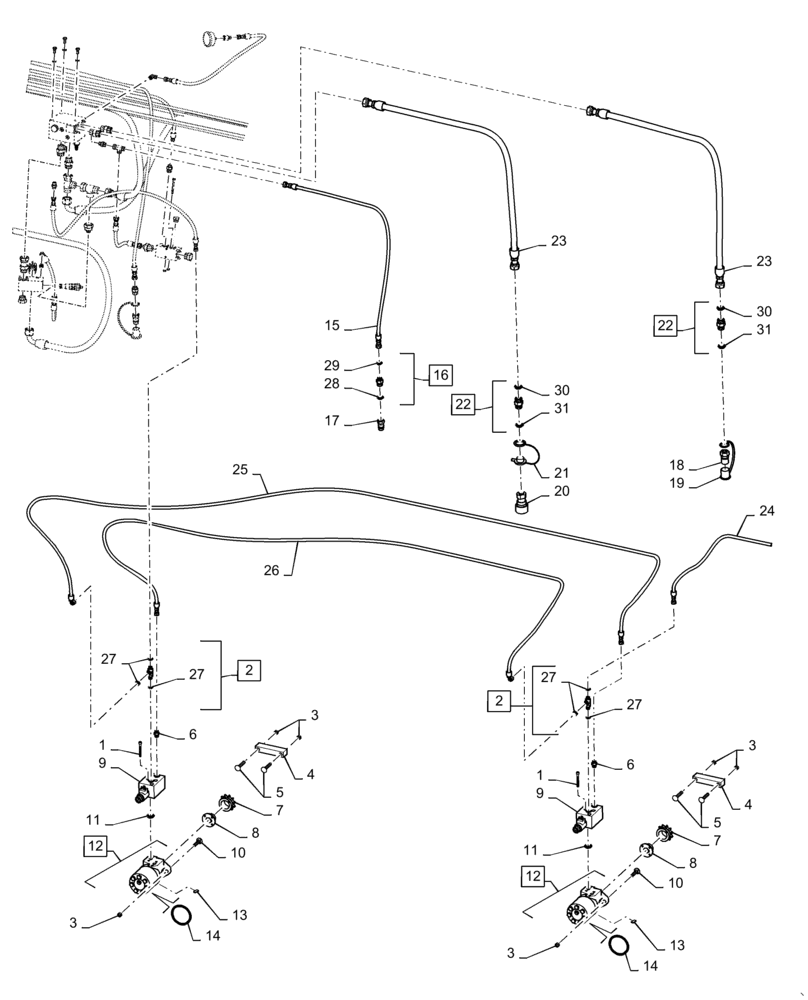

Запчасти Case IH DH303 (35.420.AB[04]) - SINGLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 30FT (35) - HYDRAULIC SYSTEMS

1

87053586

BOLT

8шт.

2

47539775

Incl 27

2шт.

3

88871

NUT,1/2"-13, GC

4шт.

4

73356205

GUARD

2шт.

5

280435

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

4шт.

6

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

2шт.

7

73356201

SPROCKET

2шт.

8

73356197

COLLAR

2шт.

9

87053581

VALVE

Deck Shift

2шт.

10

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

8шт.

11

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

4шт.

12

84197518

HYDRAULIC MOTOR

Incl 13 - 14

2шт.

13

86628576

KEY

1шт.

14

84212782

SEAL KIT

1шт.

15

73356208

HOSE

1шт.

16

84139327

HYD CONNECTOR

Incl 28 - 29

1шт.

17

84265250

QUICK MALE COUPLING

1шт.

18

9820148

COUPLING,1-1/16" - 12

1шт.

19

86595689

CAP

1шт.

20

86564734

COUPLING

1шт.

21

86595687

PLUG

1шт.

22

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 30 - 31

2шт.

23

73356207

HOSE

2шт.

24

73356277

HOSE

To 4 Station Manifold (RH)

1шт.

25

73356519

HOSE

1шт.

26

73356218

HOSE

1шт.

27

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
