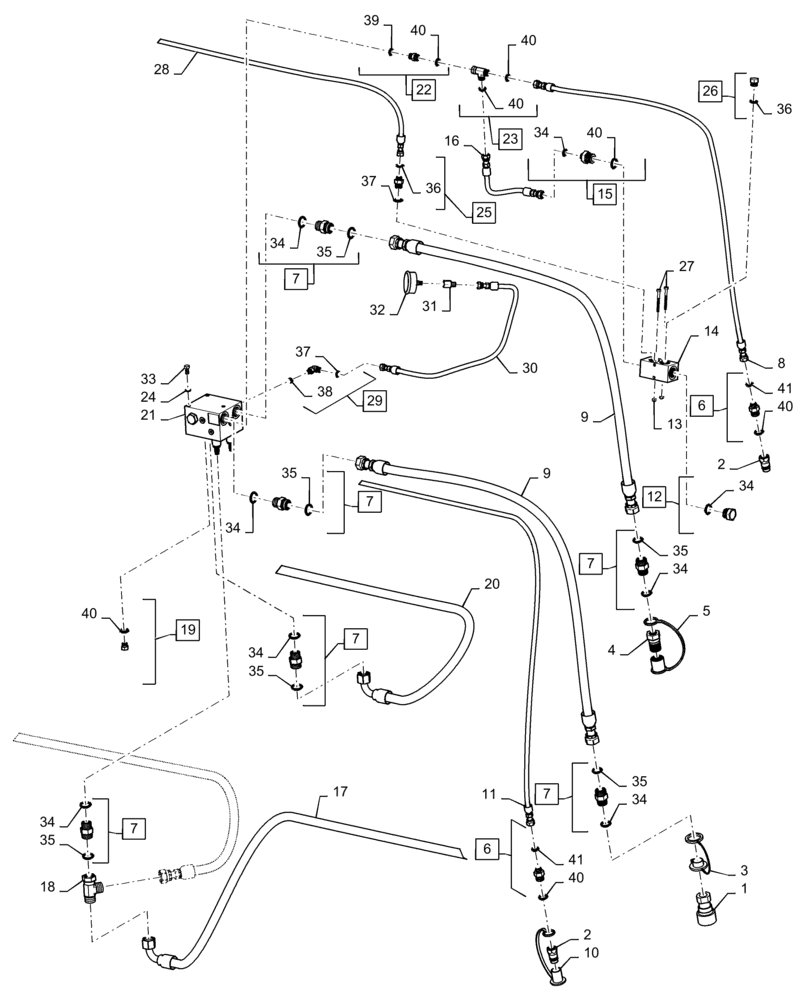

Запчасти Case IH DH303 (35.420.AB[03]) - SINGLE KNIFE, SINGLE SWATH, SOLID REEL, HYDRAULIC LIFT 30FT (35) - HYDRAULIC SYSTEMS

1

86564734

COUPLING

1шт.

2

84265250

QUICK MALE COUPLING

2шт.

3

86595687

PLUG

1шт.

4

9820148

COUPLING,1-1/16" - 12

1шт.

5

86595689

CAP

1шт.

6

84139327

HYD CONNECTOR

Incl 40 - 41

2шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 34 - 35

6шт.

8

73356208

HOSE

1шт.

9

73356207

HOSE

2шт.

10

86564910

DUST CAP

1шт.

11

73356513

HOSE

To Selector Valve "2" Port

1шт.

12

163410

PLUG,1-1/16" - 12 ORB

Incl 34

1шт.

13

86532

LOCK NUT

2шт.

14

73356198

MANIFOLD

2 Station Manifold

1шт.

15

47539754

HYD CONNECTOR

Incl 34, 40

1шт.

16

73356220

HOSE

1шт.

17

73356257

HOSE

From Return Line Station 4 Manifold

1шт.

18

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

19

9843614

PLUG

Incl 40

1шт.

20

73356254

HOSE

Pressure Line to Left Hand Port

1шт.

21

73356200

MANIFOLD

Knife Block

1шт.

22

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 39 - 40

1шт.

23

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 40

1шт.

24

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

25

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 36 - 37

1шт.

26

214389

PLUG,3/4" - 16 ORB

Incl 36

1шт.

27

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

28

73356280

HOSE

From Left Hand Case Drain Port

1шт.

29

87681199

90 ELBOW

Incl 37 - 38

1шт.

30

73356209

HOSE

1шт.

31

47369945

ADAPTER

1шт.

32

73356206

GAUGE

1шт.

33

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

8шт.

35

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

37

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

38

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

41

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
