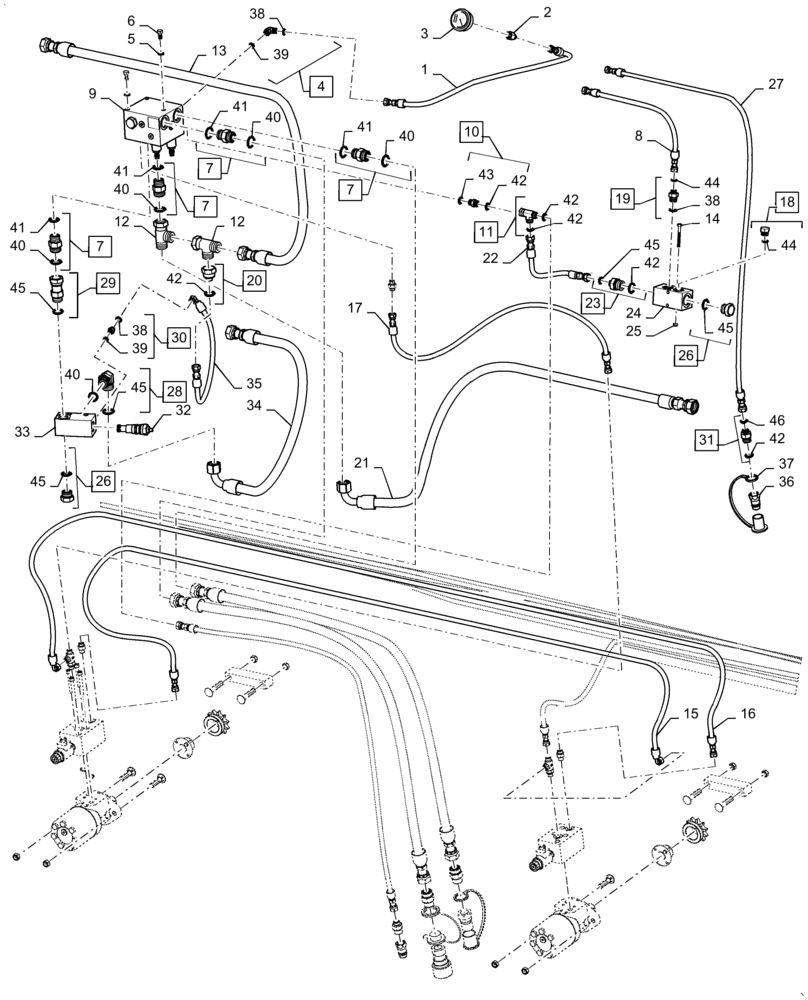

Запчасти Case IH DH303 (35.420.AB[03]) - SINGLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 30FT (35) - HYDRAULIC SYSTEMS

1

73356208

HOSE

1шт.

2

47369945

ADAPTER

1шт.

3

73356206

GAUGE

1шт.

4

87681199

90 ELBOW

Incl 38 - 39

1шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

6

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 40 - 41

4шт.

8

73356280

HOSE

From Left Hand Case Drain Port

1шт.

9

73356200

MANIFOLD

Knife Block

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 42 - 43

1шт.

11

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 42

1шт.

12

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

3шт.

13

73356290

HOSE

From Return Line Left Hand Knife Port

1шт.

14

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

15

73356218

HOSE

To "P" Port RH Deck Shift Valve

1шт.

16

73356519

HOSE

To "T" Port RH Deck Shift Valve

1шт.

17

73356385

HOSE

1шт.

18

214389

PLUG,3/4" - 16 ORB

Incl 44

1шт.

19

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 38, 44

1шт.

20

87026878

HYD CONNECTOR,11/16-16 x 1-3/16-12 ORFS

Incl 42

1шт.

21

73356257

HOSE

From Return Line 4 Station Manifold

1шт.

22

73356220

HOSE

1шт.

23

47539754

HYD CONNECTOR

Incl 42, 45

1шт.

24

73356198

MANIFOLD

2 Station Manifold

1шт.

25

86532

LOCK NUT

2шт.

26

163410

PLUG,1-1/16" - 12 ORB

Incl 45

1шт.

27

73356513

HOSE

To Selector Valve "2" Port

1шт.

28

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 40, 45

1шт.

29

87485024

HYD CONNECTOR

Incl 45

1шт.

30

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 38 - 39

1шт.

31

84139327

HYD CONNECTOR

Incl 42, 46

1шт.

32

73356554

CARTRIDGE

1шт.

33

73356553

MANIFOLD

1шт.

34

73356254

HOSE

Pressure Line to Left Hand Knife Port

1шт.

35

73356555

HYDRAULIC HOSE

1шт.

36

84265250

QUICK MALE COUPLING

1шт.

37

86564910

DUST CAP

1шт.

38

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

40

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

41

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

42

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

43

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

45

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

46

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
