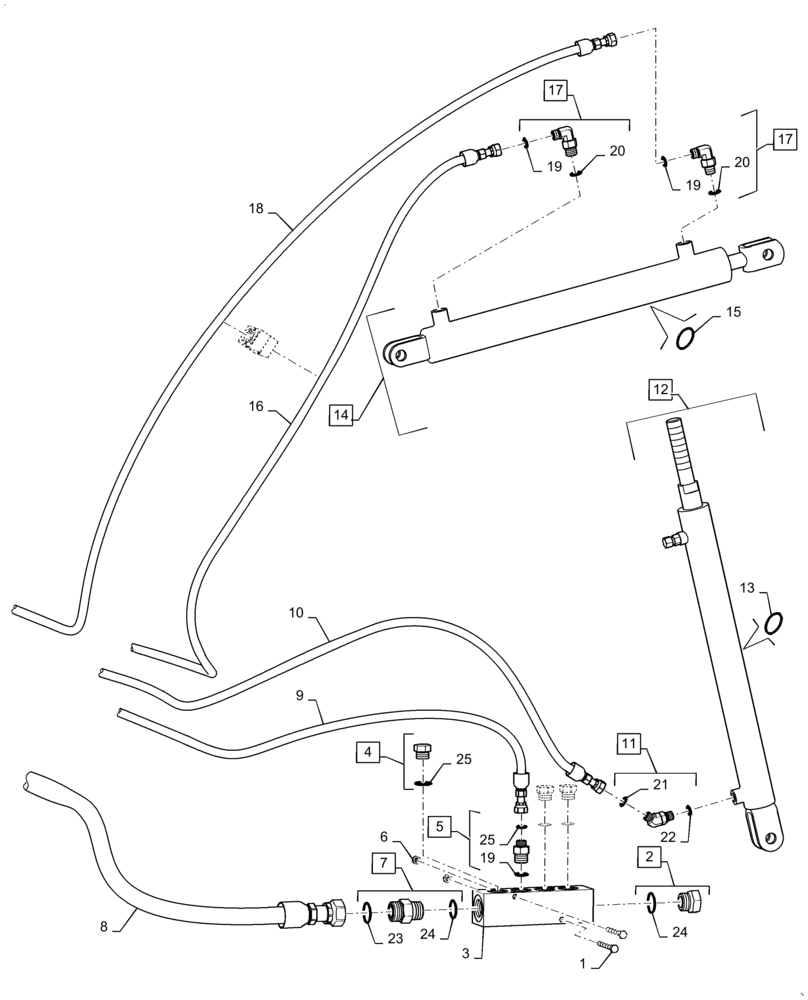

Запчасти Case IH DH303 (35.420.AB[02]) - SINGLE KNIFE, SINGLE SWATH, SOLID REEL, HYDRAULIC LIFT 30FT (35) - HYDRAULIC SYSTEMS

1

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

2

163410

PLUG,1-1/16" - 12 ORB

Incl 24

1шт.

3

73356199

MANIFOLD

4 Station Manifold

1шт.

4

214389

PLUG,3/4" - 16 ORB

Incl 25

3шт.

5

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 19, 25

1шт.

6

86532

LOCK NUT

2шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 23 - 24

1шт.

8

73356257

HOSE

Return Line to Knife Block "Ret B" Port

1шт.

9

73356286

HOSE

From FORE and AFT Valve "T" Port

1шт.

10

73356517

HOSE

From Left Hand Reel Lift Cylinder Top Port

1шт.

11

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 21 - 22

1шт.

12

73356203

HYDRAULIC CYLINDER

Incl 13

1шт.

Slave Cylinder

1шт.

13

73356287

SERVICE KIT

1шт.

14

73356202

HYDRAULIC CYLINDER

Incl 15, RH FORE and AFT Cylinder

1шт.

Slave Cylinder

1шт.

15

84542601

SEAL KIT

1шт.

16

73356506

HOSE

From FORE and AFT Valve "A" Port

1шт.

17

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 19 - 20

2шт.

18

73356275

HOSE

From Left Hand FORE and AFT Cylinder Rear Port

1шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
