Запчасти Case IH DH303 (35.420.AB[02]) - DOUBLE SWATH, SOLID REEL, DRAPER DRIVE HYDRAULIC 30FT (35) - HYDRAULIC SYSTEMS

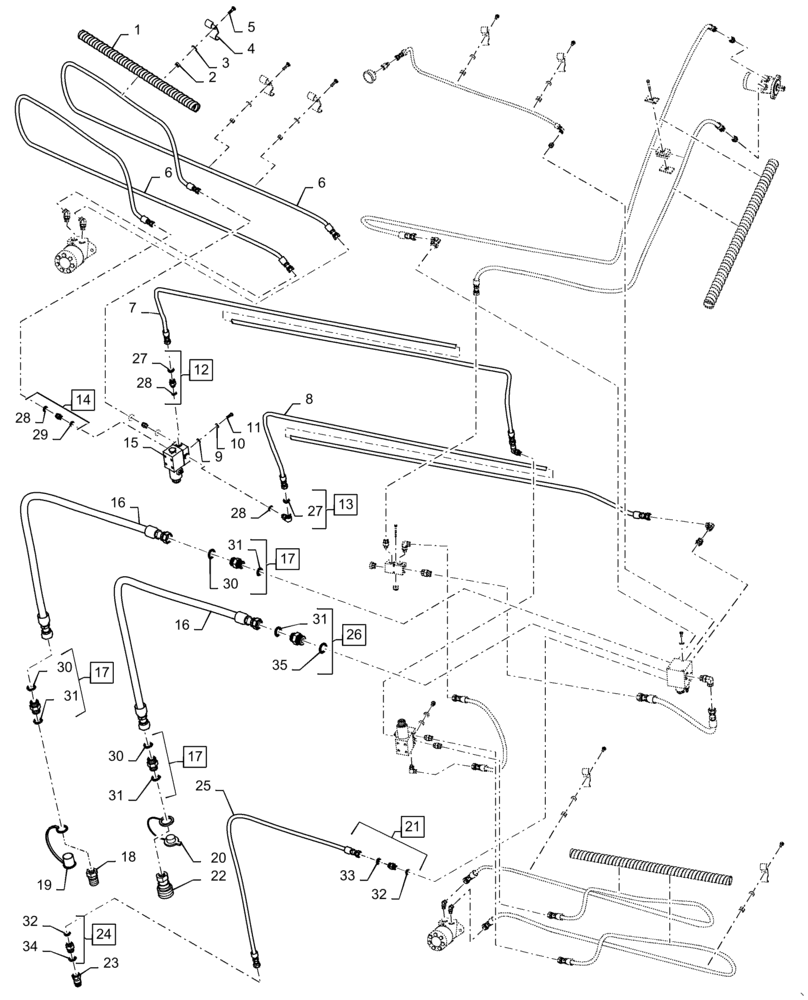

Схема запчастей Case IH DH303 - (35.420.AB[02]) - DOUBLE SWATH, SOLID REEL, DRAPER DRIVE HYDRAULIC 30FT (35) - HYDRAULIC SYSTEMS
26
28
15
27
21
12
7
6
16
17
10
9
14
30
24
5
3
4
11
13
32
17
28
31
1
20
8
29
30
33
27
2
31
6
32
28
25
16
17
30
31
35
19
34
22
18
31
23

Артикул

Название

Примечание

Количество

1

84391397

SLEEVE

1шт.

2

86532

LOCK NUT

1шт.

3

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

4

86563519

CLAMP

1шт.

5

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

6

73356520

HOSE

2шт.

7

47391856

HYDRAULIC HOSE

1шт.

8

47458418

HYDRAULIC HOSE

1шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

87351379

HYD CONNECTOR

Incl 27 - 28

1шт.

13

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

Incl 27 - 28

1шт.

14

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 28 - 29

2шт.

15

87053580

VALVE

1шт.

16

73356207

HOSE

2шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 30 - 31

3шт.

18

9820148

COUPLING,1-1/16" - 12

1шт.

19

86595689

CAP

1шт.

20

86595687

PLUG

1шт.

21

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 32 - 33

2шт.

22

86564734

COUPLING

1шт.

23

84265250

QUICK MALE COUPLING

1шт.

24

84139327

HYD CONNECTOR

Incl 32, 34

1шт.

25

73356208

HOSE

1шт.

26

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 31, 35

1шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

31

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
