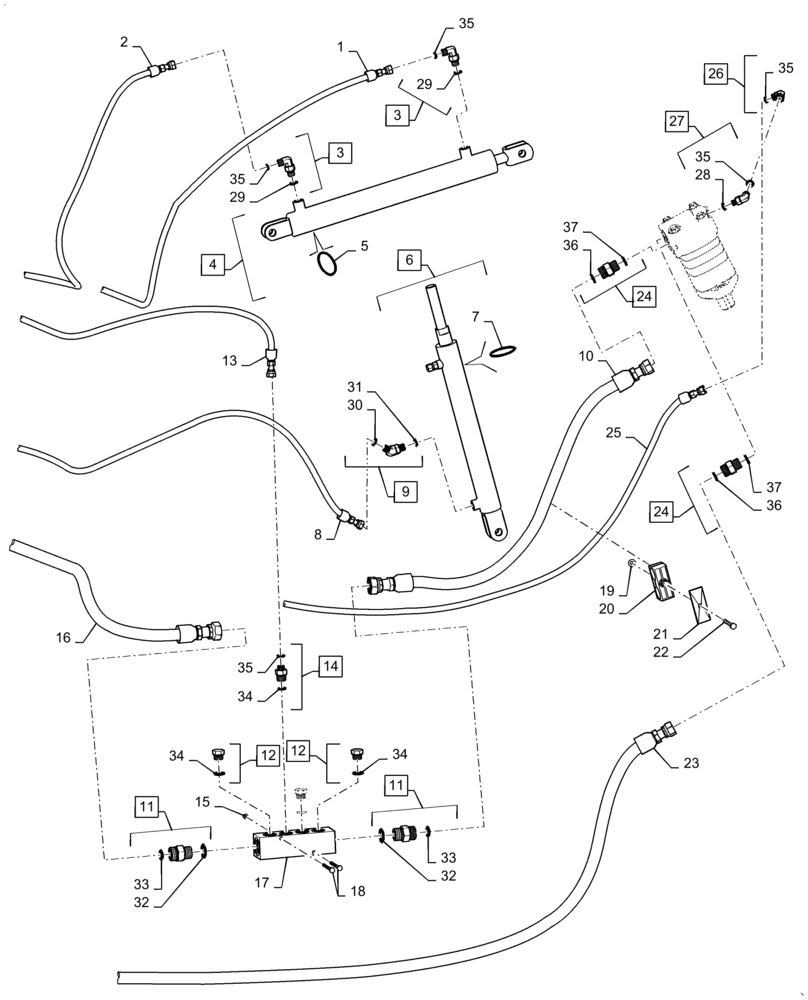

Запчасти Case IH DH303 (35.420.AB[02]) - DOUBLE KNIFE, SINGLE SWATH, SOLID REEL, HYDRAULIC LIFT 30FT (35) - HYDRAULIC SYSTEMS

1

73356506

HOSE

From Left Hand Fore and Aft Cylinder Rear Port

1шт.

2

73356275

HOSE

From Fore and Aft Valve "A" Port

1шт.

3

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 29, 35

2шт.

4

73356202

HYDRAULIC CYLINDER

RH Fore and Aft Cylinder, Incl 5

1шт.

Slave Cylinder

1шт.

5

73356287

SERVICE KIT

1шт.

6

73356203

HYDRAULIC CYLINDER

Incl 7

1шт.

Slave Cylinder

1шт.

7

84542601

SEAL KIT

1шт.

8

73356517

HOSE

From Left Hand Reel Lift Cylinder Top Port

1шт.

9

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 30 - 31

1шт.

10

47458419

HYDRAULIC HOSE

1шт.

11

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 32 - 33

2шт.

12

214389

PLUG,3/4" - 16 ORB

Incl 34

3шт.

13

73356286

HOSE

From Fore and Aft Valve "T" Port

1шт.

14

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 34 - 35

1шт.

15

86532

LOCK NUT

2шт.

16

73356257

HOSE

Return Line to Knife Block (Port "B")

1шт.

17

73356199

MANIFOLD

Station 4 Manifold

1шт.

18

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

19

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

20

87625027

CLAMP

1шт.

21

87625028

CLAMP

1шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

23

73356260

HOSE

From Return Line (Left Hand Knife Port)

1шт.

24

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 36 - 37

2шт.

25

73356283

HOSE

To Return 2 Station Manifold (Center, Near Left Hand Side)

1шт.

26

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 35

1шт.

27

87681199

90 ELBOW

Incl 28, 35

1шт.

28

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

34

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

35

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

36

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
