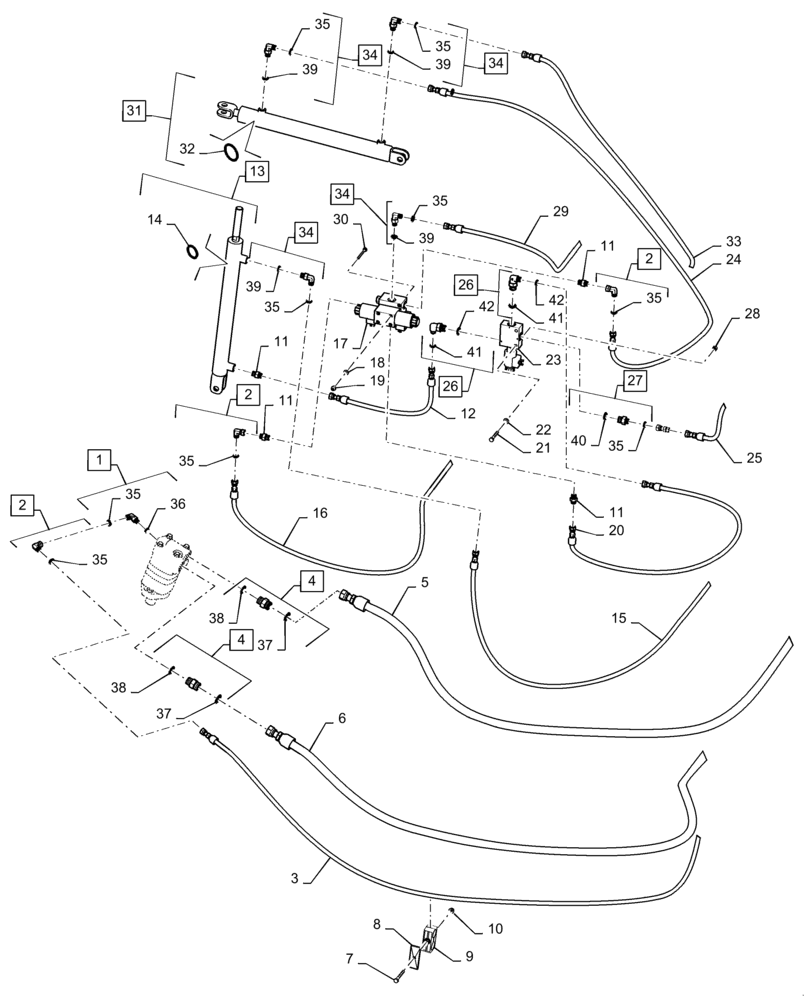

Запчасти Case IH DH303 (35.420.AB[01]) - SINGLE KNIFE, SINGLE SWATH, SOLID REEL, HYDRAULIC LIFT 30FT (35) - HYDRAULIC SYSTEMS

1

87681199

90 ELBOW

Incl 35 - 36

1шт.

2

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 35

3шт.

3

73356281

HOSE

To Return 2 Station Manifold (Center Near Left Hand Side)

1шт.

4

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 37 - 38

2шт.

5

73356255

HOSE

From "KNF" Port Knife Block

1шт.

6

73356261

HOSE

To "Ret B" Port Knife Block

1шт.

7

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

8

87625028

CLAMP

2шт.

9

87625027

CLAMP

2шт.

10

9823743

FLANGE NUT,Flg, 5/16"-18

2шт.

11

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

4шт.

12

73356214

HOSE

1шт.

13

73356204

HYDRAULIC CYLINDER

Incl 14

1шт.

Master Cylinder

1шт.

14

73356288

SERVICE KIT

1шт.

15

73356518

HOSE

To Right Hand Reel Lift Cylinder Bottom Port

1шт.

16

73356269

HOSE

To Right Hand FORE and AFT Cylinder Rear Port

1шт.

17

87057614

REMOTE CONTROL VALVE

1шт.

18

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

19

86532

LOCK NUT

2шт.

20

73356363

HOSE

1шт.

21

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

22

87362

WASHER,5/16" SAE

2шт.

23

87387422

VALVE

1шт.

24

73356318

HOSE

From FORE and AFT Valve "B" Port

1шт.

25

73356510

HOSE

From Power Unit Line

1шт.

26

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 41 - 42

2шт.

27

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 35, 40

1шт.

28

280736

NUT,5/16"-18, GC

2шт.

29

73356284

HOSE

To Return 4 Station Manifold (Right Hand Side)

1шт.

30

9827610

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/2", Gr 5

2шт.

31

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

Incl 32, LH FORE and AFT Cylinder

1шт.

Master Cylinder

1шт.

32

87487171

SEAL KIT

1шт.

33

73356557

HYDRAULIC HOSE

To Right Hand FORE and AFT Cylinder Front Port

1шт.

34

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 35, 39

4шт.

35

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.

36

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

42

237-6011

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

2шт.

43

73356772

PROTECTOR

Hose Wrap, Spiral, 7" (Not Shown)

1шт.

Apply to Ref 24 and 33

1шт.
