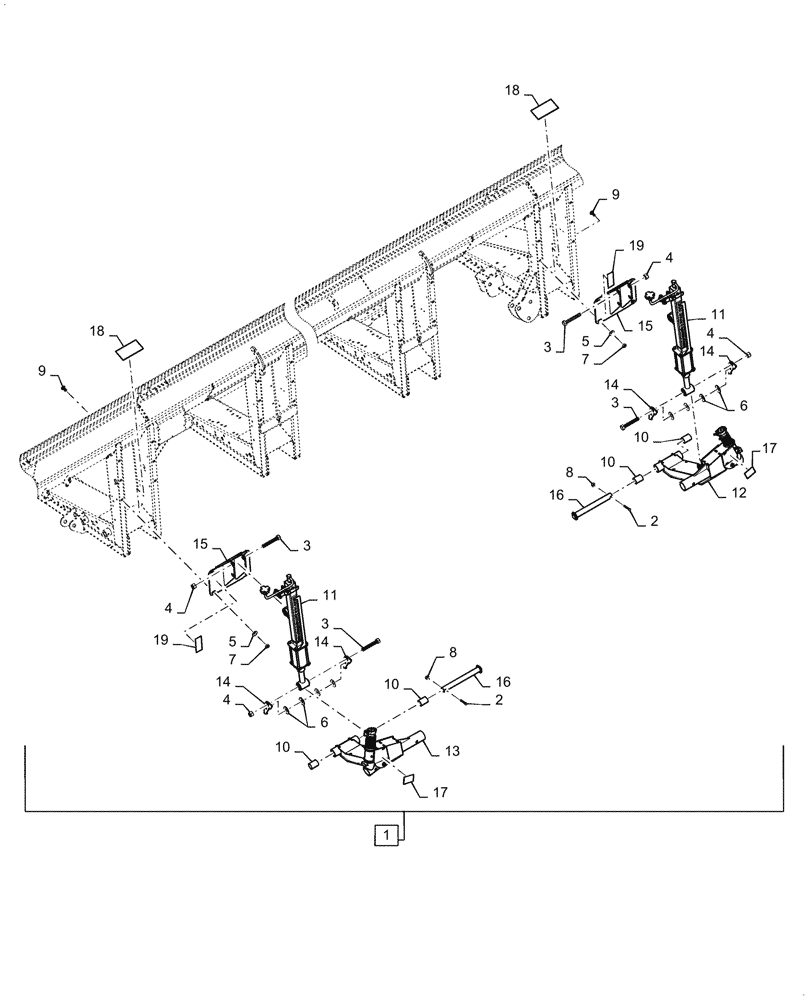

Запчасти Case IH DH303 (88.100.44[07]) - KIT, GAUGE WHEEL ASSY WITH JACK (88) - ACCESSORIES

1

47979689

KIT

Gauge Wheel Assy with Jack, Incl 2 - 19

1шт.

2

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

3

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

6шт.

4

86754

NUT,3/4"-10, GB

6шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

6

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

8шт.

7

88871

NUT,1/2"-13, GC

8шт.

8

88902

NUT,3/8"-16

2шт.

9

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

8шт.

10

73356030

BUSHING

4шт.

11

48089311

FLOAT

Float Assy, Spring Jack

2шт.

12

47508374

ARM

Control Assy, RH

1шт.

13

47508377

ARM

Control Assy, LH

1шт.

14

73356752

PLATE

Mounting, Lower Gauge Wheel Jack

4шт.

15

47979597

BRACKET

Assy, Upper Gauge Wheel Jack with Decal

2шт.

16

73356041

PIN

2шт.

17

165109

DECAL

Sign - Lube Fitting

2шт.

18

86531262

WARNING DECAL

2шт.

19

87413244

DECAL

Pinch Point

2шт.
