(58.110.BH) - COVER, PLATE, KNIFE DRIVE ASSY

Запчасти Case IH DH303 (58.110.BH) - COVER, PLATE, KNIFE DRIVE ASSY (58) - ATTACHMENTS/HEADERS

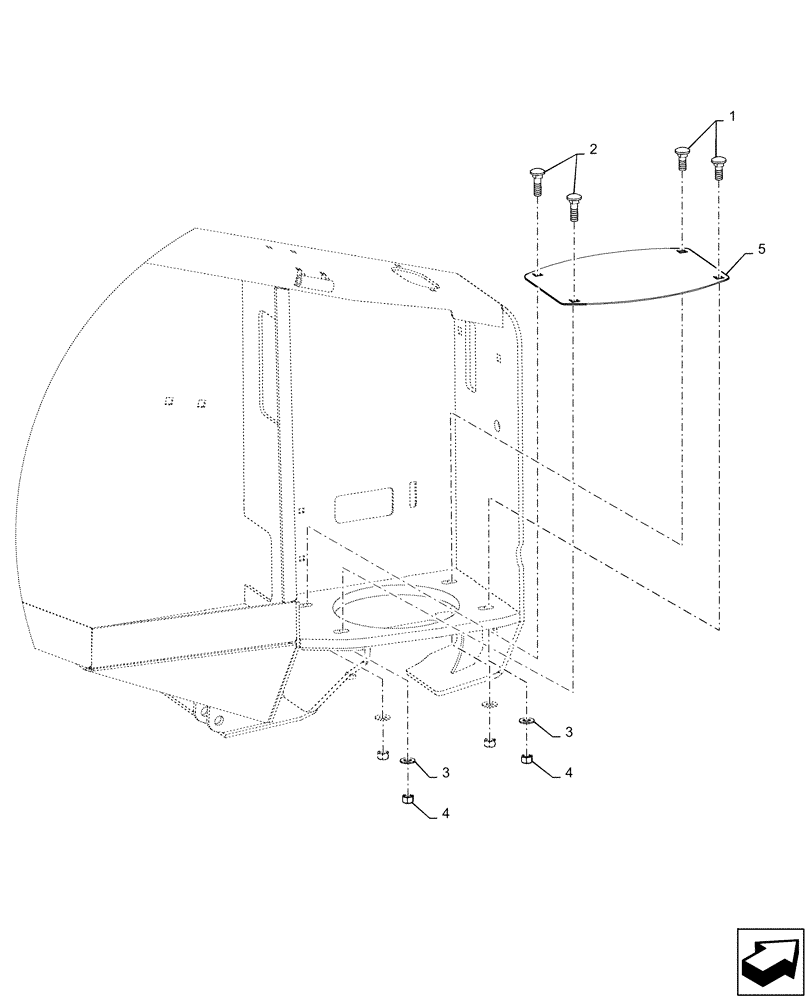

Схема запчастей Case IH DH303 - (58.110.BH) - COVER, PLATE, KNIFE DRIVE ASSY (58) - ATTACHMENTS/HEADERS
3
4
4
5
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

2

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

4

88902

NUT,3/8"-16

4шт.

5

73356415

COVER

Knife Drive Plate

1шт.

Выбрано товаров: 5
