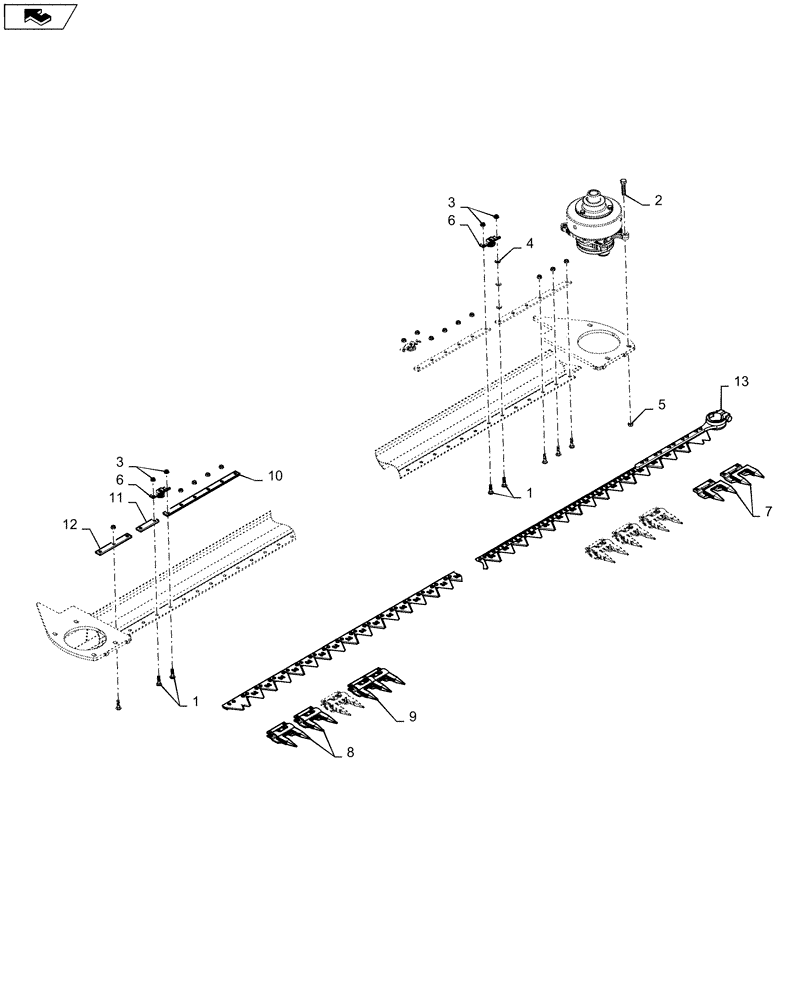

Запчасти Case IH DH253 (58.110.BD[11]) - CUTTERBAR, SINGLE KNIFE, W/SCHUMACHER (58) - ATTACHMENTS/HEADERS

1

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

101шт.

1

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

121шт.

2

86551024

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 8

4шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

101шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

121шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

3шт.

5

9802182

LOCK NUT,1/2"-20, GB

4шт.

6

87670866

ROLLER

Spacer Bar, Bridge Style

16шт.

6

87670866

ROLLER

Spacer Bar, Bridge Style

19шт.

7

84314628

GUARD

Open First

3шт.

8

84476747

GUARD

Standard

46шт.

8

84476747

GUARD

Standard

57шт.

9

84476748

GUARD

Triple

1шт.

10

84476750

SPACER

Bar, 6-Hole

16шт.

10

84476750

SPACER

Bar, 6-Hole

19шт.

11

84476751

SPACER

Bar, 2-Hole

1шт.

12

84476752

SPACER

Bar, 3-Hole

1шт.

13

NSS

NOT SOLD SEPARAT

Knife Assy, Single Knife, Schumacher, LH

1шт.
