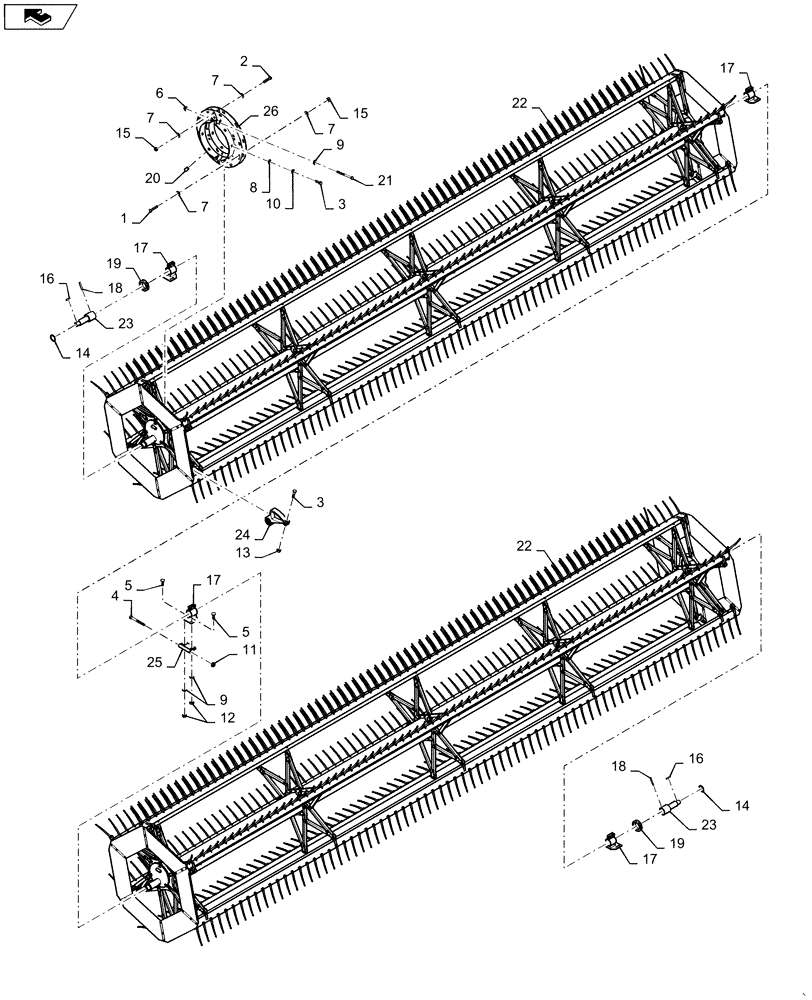

Запчасти Case IH DH253 (58.101.AM[01]) - UII REEL, SPLIT, W/PLASTIC FINGERS, 6-BAT (58) - ATTACHMENTS/HEADERS

1

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

40шт.

2

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

8шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

72шт.

4

86505996

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

5

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

6

86521609

FLANGE NUT,Flg, 3/8"-16

16шт.

7

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

96шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

48шт.

9

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

20шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

48шт.

11

88871

NUT,1/2"-13, GC

1шт.

12

88902

NUT,3/8"-16

4шт.

13

280736

NUT,5/16"-18, GC

24шт.

14

86562200

WASHER

Shaft

2шт.

15

280129

NUT,1/4"-20

48шт.

16

86565968

KEY

2шт.

17

47418752

MOUNT

Reel Clamp Assy

4шт.

18

70923396

PIN,12.7mm OD x 76.2mm L

2шт.

19

73356393

COLLAR

2шт.

20

73356398

INSERT

48шт.

21

86505979

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

16шт.

22

NSS

NOT SOLD SEPARAT

Reel, UII Split W/Plastic Fingers, 6-Bat

2шт.

23

73356794

SHAFT

Reel Drive

2шт.

24

73356395

KNUCKLE

Control

24шт.

25

73356397

HINGE

Center

1шт.

26

73356424

REINFORCEMENT

Clamp

16шт.
