Запчасти Case IH DH253 (35.420.AB[03]) - SINGLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 25FT (35) - HYDRAULIC SYSTEMS

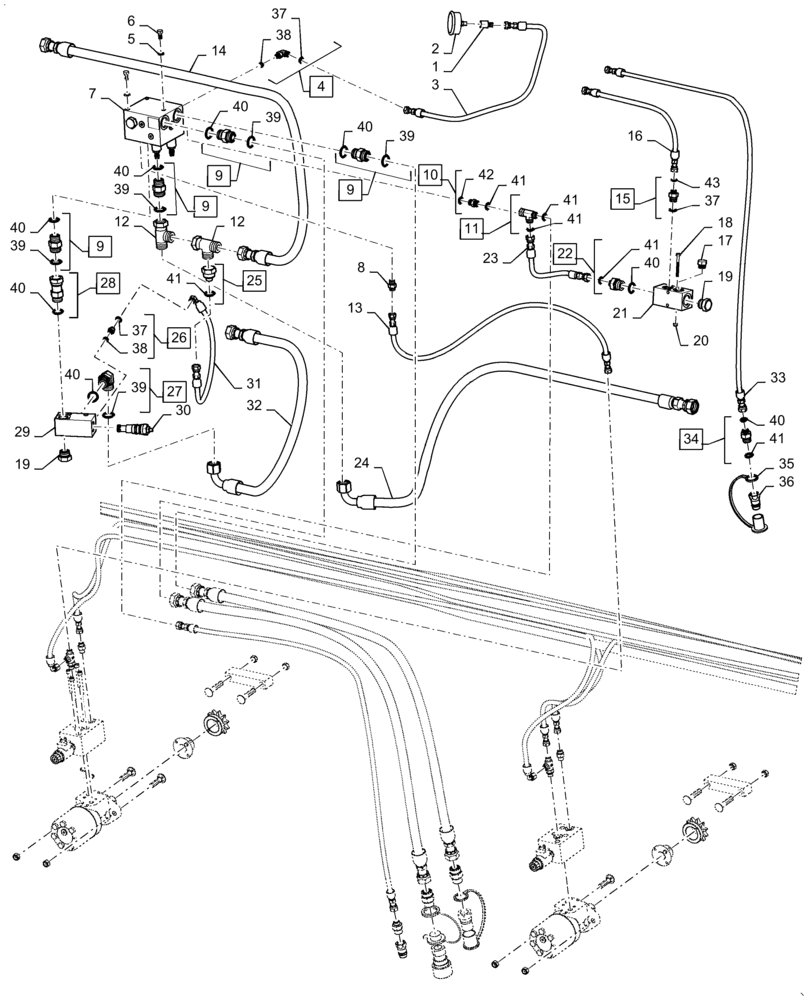

Схема запчастей Case IH DH253 - (35.420.AB[03]) - SINGLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 25FT (35) - HYDRAULIC SYSTEMS
40
18
19
38
12
41
40
7
9
31
37
3
39
41
40
17
40
40
35
41
41
40
9
13
41
9
38
8
25
40
10
33
11
4
6
15
16
14
28
24
21
37
12
20
22
39
2
30
1
42
29
27
9
40
41
39
5
32
37
43
39
34
23
19
36
26
39

Артикул

Название

Примечание

Количество

1

47369945

ADAPTER

1шт.

2

73356206

GAUGE

1шт.

3

73356209

HOSE

1шт.

4

87681199

90 ELBOW

Incl 37 - 38

1шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

6

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

7

73356200

MANIFOLD

Knife Block

1шт.

8

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

1шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 39 - 40

4шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 41 - 42

1шт.

11

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 41

1шт.

12

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

13

73356385

HOSE

From "PR" Port To "P" Port (LH) Deck Shift Valve

1шт.

14

73356317

HOSE

From Return Line Left Hand Knife Port

1шт.

15

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 37, 43

1шт.

16

73356279

HOSE

From Left Hand Case Drain port

1шт.

17

214389

PLUG,3/4" - 16 ORB

Incl 43

1шт.

18

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

19

163410

PLUG,1-1/16" - 12 ORB

Incl 40

2шт.

20

86532

LOCK NUT

2шт.

21

73356198

MANIFOLD

2 Station Manifold

1шт.

22

47539754

HYD CONNECTOR

Incl 40 - 41

1шт.

23

73356220

HOSE

1шт.

24

73356256

HOSE

From Return Line 4 Station Manifold

1шт.

25

87026878

HYD CONNECTOR,11/16-16 x 1-3/16-12 ORFS

Incl 41

1шт.

26

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 37 - 38

1шт.

27

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 39 - 40

1шт.

28

87485024

HYD CONNECTOR

Incl 40

1шт.

29

73356553

MANIFOLD

1шт.

30

73356554

CARTRIDGE

1шт.

31

73356555

HYDRAULIC HOSE

1шт.

32

73356253

HOSE

Pressure Line to Left Hand Knife Port

1шт.

33

73356512

HOSE

To Selector Valve "2" Port

1шт.

34

84139327

HYD CONNECTOR

Incl 40 - 41

1шт.

35

86564910

DUST CAP

1шт.

36

84265250

QUICK MALE COUPLING

1шт.

37

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

38

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

39

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

10шт.

41

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

42

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Выбрано товаров: 43
