Запчасти Case IH DH253 (35.420.AB[02]) - SINGLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 25FT (35) - HYDRAULIC SYSTEMS

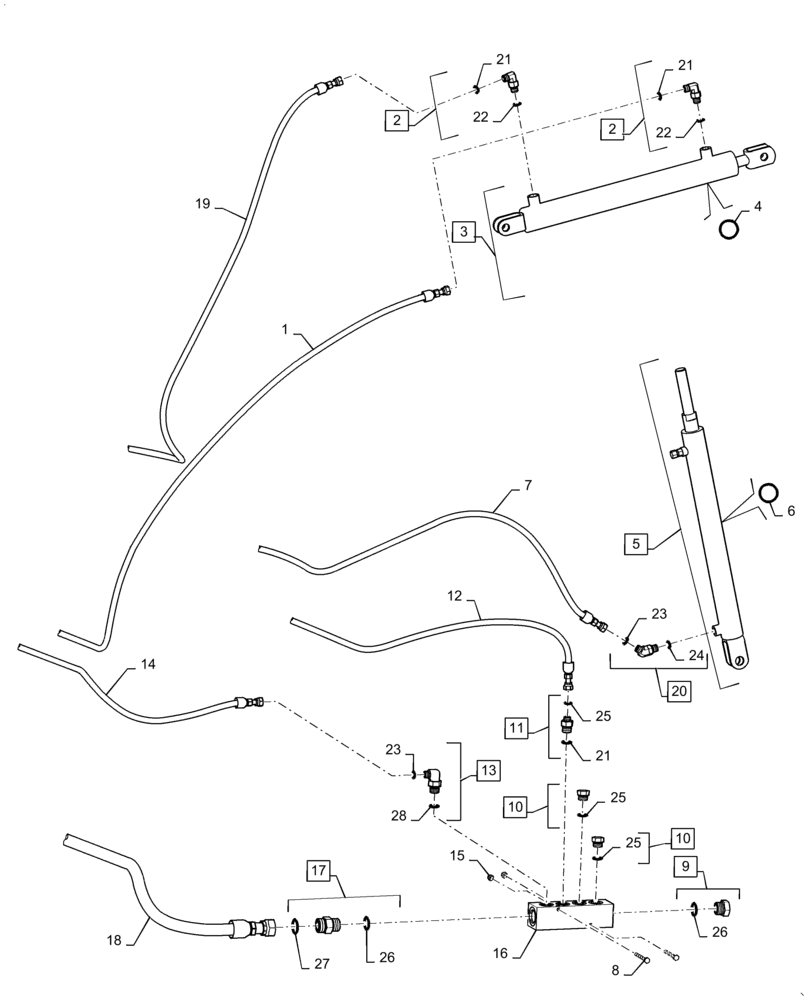

Схема запчастей Case IH DH253 - (35.420.AB[02]) - SINGLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 25FT (35) - HYDRAULIC SYSTEMS
26
21
23
1
6
22
4
3
25
2
19
21
25
27
14
15
5
16
2
22
13
24
9
25
12
11
7
10
17
8
20
23
26
10
18
21
28

Артикул

Название

Примечание

Количество

1

73356286

HOSE

1шт.

2

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 21 - 22

2шт.

3

73356202

HYDRAULIC CYLINDER

Incl 4

1шт.

Slave Cylinder

1шт.

4

73356287

SERVICE KIT

1шт.

5

73356203

HYDRAULIC CYLINDER

Incl 6

1шт.

Slave Cylinder

1шт.

6

84542601

SEAL KIT

1шт.

7

73356516

HOSE

1шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

9

163410

PLUG,1-1/16" - 12 ORB

Incl 26

1шт.

10

214389

PLUG,3/4" - 16 ORB

Incl 25

2шт.

11

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 21, 25

1шт.

12

73356285

HOSE

1шт.

13

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 23, 28

1шт.

14

73356276

HOSE

1шт.

15

86532

LOCK NUT

2шт.

16

73356199

MANIFOLD

1шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 26 - 27

1шт.

18

73356256

HOSE

1шт.

19

73356274

HOSE

1шт.

20

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 23 - 24

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 30
