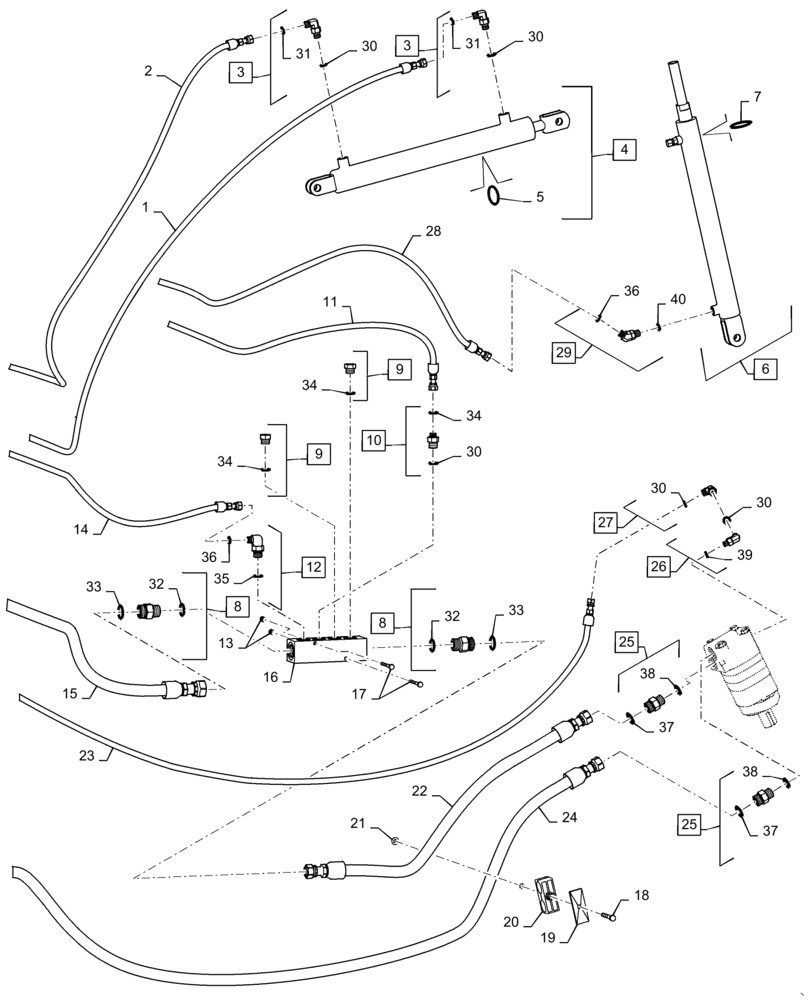

Запчасти Case IH DH253 (35.420.AB[02]) - DOUBLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 25FT (35) - HYDRAULIC SYSTEMS

1

73356286

HOSE

From Left Hand FORE and AFT Cylinder Rear Port

1шт.

2

73356274

HOSE

From FORE and AFT Valve "A" Port

1шт.

3

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 30 - 31

2шт.

4

73356202

HYDRAULIC CYLINDER

Incl 5, RH FORE and AFT Cylinder

1шт.

Slave Cylinder

1шт.

5

73356287

SERVICE KIT

1шт.

6

73356203

HYDRAULIC CYLINDER

Incl 7

1шт.

Slave Cylinder

1шт.

7

84542601

SEAL KIT

1шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 32 - 33

2шт.

9

214389

PLUG,3/4" - 16 ORB

Incl 34

2шт.

10

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 30, 34

1шт.

11

73356285

HOSE

From FORE and AFT Valve "T" Port

1шт.

12

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 35 - 36

1шт.

13

86532

LOCK NUT

2шт.

14

73356276

HOSE

From "P" Port RH Deck Shift Valve

1шт.

15

73356256

HOSE

Return Line to Knife Block "Ret B" Port

1шт.

16

73356199

MANIFOLD

4 Station Manifold

1шт.

17

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

18

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

19

87625028

CLAMP

1шт.

20

87625027

CLAMP

1шт.

21

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

22

47458419

HYDRAULIC HOSE

1шт.

23

73356282

HOSE

From Return Line Left Hand Knife Port

1шт.

24

73356259

HOSE

To Return 2 Station Manifold (Center Near Left Hand Side)

1шт.

25

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 37 - 38

2шт.

26

87681199

90 ELBOW

Incl 30, 39

1шт.

27

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 30

1шт.

28

73356516

HOSE

From Left Hand Reel Lift Cylinder Top Port

1шт.

29

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 36, 40

1шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

34

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

37

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

40

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.
