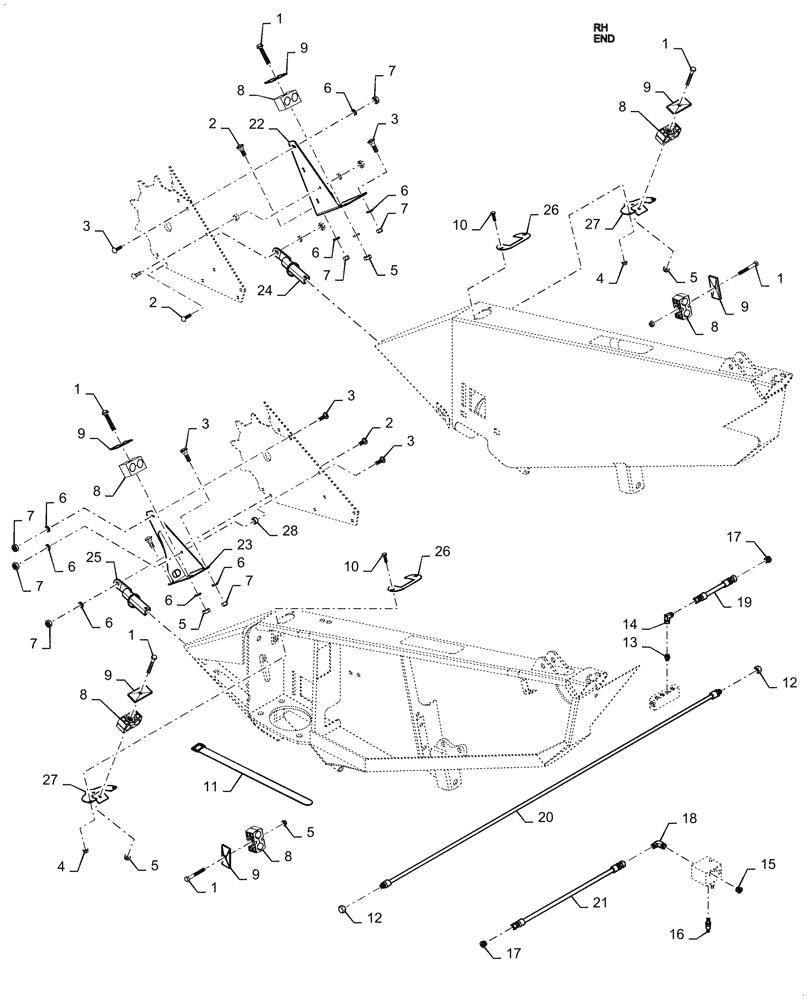

Запчасти Case IH DH213 (88.100.58[09]) - HOSE KIT, ROTOSHEAR (88) - ACCESSORIES

1

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

6шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

3

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

8шт.

4

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

5

9823743

FLANGE NUT,Flg, 5/16"-18

6шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

16шт.

7

88902

NUT,3/8"-16

14шт.

8

86563609

CLAMP

6шт.

9

87053042

PLATE

Twin Cover

6шт.

10

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

11

87672484

SECURING STRAP

Velcor

1шт.

12

9840576

CAP,1" - 14 ORFS

2шт.

13

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

14

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

15

73356339

CARTRIDGE

Flow Control Roto - Shear

1шт.

16

73356340

CARTRIDGE

Pressure Reducer Relief Roto - Shear

1шт.

17

201-913

PLUG,1" - 14 ORFS

Hex 1 - 14 5/8 Tube

2шт.

18

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

90°

1шт.

19

73356355

HYDRAULIC HOSE

1шт.

20

73356350

HYDRAULIC HOSE

1шт.

21

73356354

HYDRAULIC HOSE

1шт.

22

73356341

MOUNT

RH

1шт.

23

73356342

MOUNT

LH

1шт.

24

73356343

SUPPORT

RH

1шт.

25

73356344

SUPPORT

LH

1шт.

26

73356769

COVER

Crop Deflector Clamp

2шт.

27

73356770

PLATE

Mounting, Crop Deflector Clamp

2шт.

28

86563235

SPACER

2шт.
