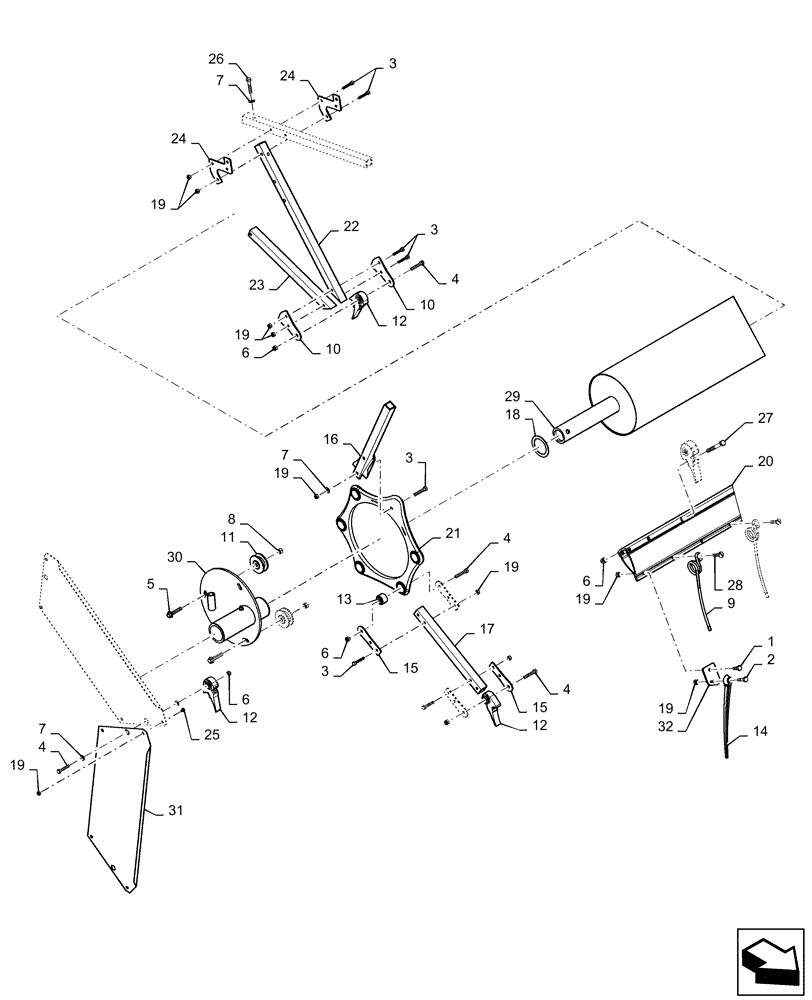

Запчасти Case IH DH213 (58.101.AM[02]) - REEL, UII SINGLE, W/PLASTIC & STEEL FINGERS, 6-BAT (58) - ATTACHMENTS/HEADERS

1

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

2

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

3

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

258шт.

4

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

64шт.

5

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

6шт.

6

86050277

NUT,5/16"-18, GB

118шт.

7

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

58шт.

8

88902

NUT,3/8"-16

6шт.

9

86562180

REEL TINE

Pick Up

366шт.

10

86562181

PLATE

Tip

60шт.

11

86562184

ROLLER

Central Plate

6шт.

12

86562185

BEARING CARRIER

Holder

54шт.

13

73356722

BALL BEARING

10шт.

14

86562205

REEL TINE

Pick Up

6шт.

15

86562186

END PLATE

44шт.

16

86562187

ARM

Fixed Control

2шт.

17

86562197

ARM

Regular Control

10шт.

18

86562200

WASHER

Shaft

4шт.

19

280129

NUT,1/4"-20

6шт.

20

86562221

SUPPORT

Reel Bat

2шт.

21

86562206

RING

6-Bat

30шт.

22

86562207

ARM

Long

30шт.

23

86562208

SUPPORT

Brace

60шт.

24

86562210

PLATE

Inner

24шт.

25

86511930

SCREW,Pan, 1/4" - 20 x 3/8"

30шт.

26

86562214

BOLT,5/16" x 1 3/4"

54шт.

27

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

28

86511932

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 3/4"

2шт.

29

86624879

SHAFT

Center

12шт.

30

87524555

CONTROL

Plate

6шт.

31

87523722

SHIELD

End

8шт.

32

87499830

MOUNTING PLATE

End Tine

4шт.
