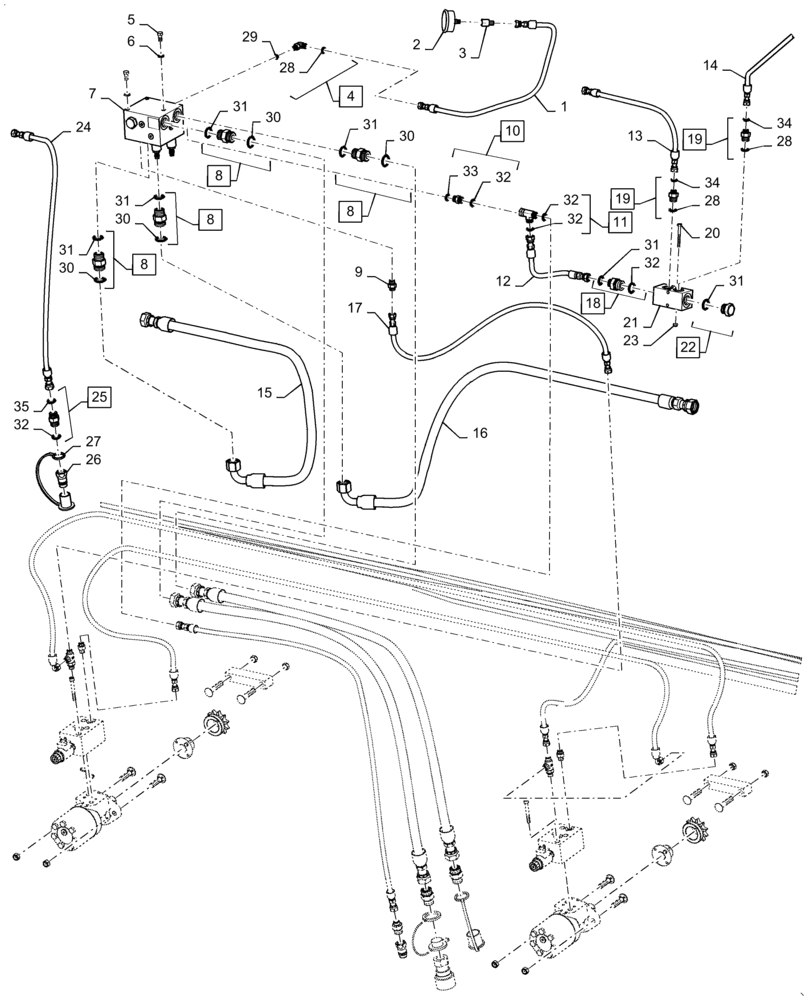

Запчасти Case IH DH213 (35.420.AB[03]) - DOUBLE KNIFE, DOUBLE SWATH, SOLID REEL, HYDRAULIC LIFT 21FT (35) - HYDRAULIC SYSTEMS

1

73356209

HOSE

1шт.

2

73356206

GAUGE

1шт.

3

47369945

ADAPTER

1шт.

4

87681199

90 ELBOW

Incl 28 - 29

1шт.

5

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

7

73356200

MANIFOLD

Knife Block

1шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 30 - 31

4шт.

9

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 32 - 33

1шт.

11

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 32

1шт.

12

73356220

HOSE

1шт.

13

73356213

HOSE

From Left Hand Case Drain Port

1шт.

14

73356219

HOSE

From Right Hand Case Drain Port

1шт.

15

73356210

HOSE

Pressure Line to Left Hand Knife Port

1шт.

16

73356212

HOSE

From Return Line 4 Station Manifold

1шт.

17

73356385

HOSE

1шт.

18

47539754

HYD CONNECTOR

Incl 31 - 32

1шт.

19

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 28, 34

2шт.

20

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

21

73356198

MANIFOLD

2 Station Manifold

1шт.

22

163410

PLUG,1-1/16" - 12 ORB

Incl 31

1шт.

23

86532

LOCK NUT

2шт.

24

73356511

HOSE

1шт.

25

84139327

HYD CONNECTOR

Incl 32, 35

1шт.

26

84265250

QUICK MALE COUPLING

1шт.

27

86564910

DUST CAP

1шт.

28

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

29

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

35

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
