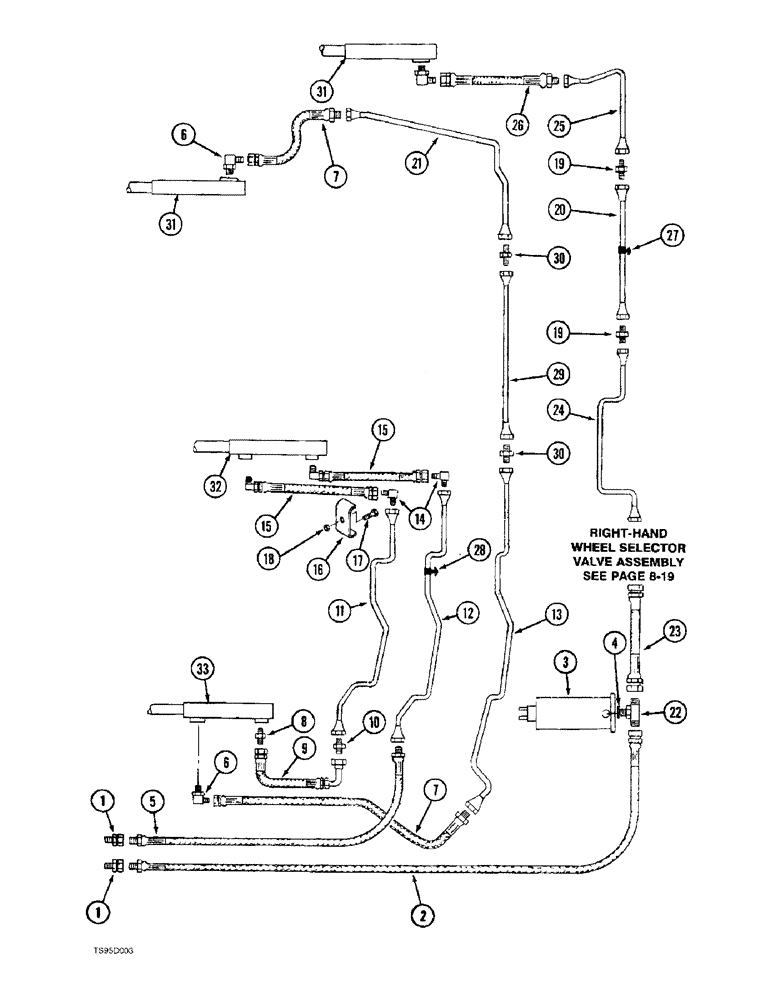

Запчасти Case IH 736 (8-14) - 736 WINDROWER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

1281401C1

UNION

- swivel adapter, restricting, 0.078 inch orifice

2шт.

2

1284314C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 235 inch, tractor to header lift cylinder, Initial service of hose requires fittings 9403400, 218-344 and 218-454

1шт.

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

1шт.

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 3/4 inch NF

1шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/2 inch PT

1шт.

3

1969154C1

CYLINDER

- hydraulic, header lift

1шт.

1969155C2

KIT

SEAL KIT - for header lift cylinder

1шт.

1986010C1

PISTON

- for header lift cylinder 1969154C1

1шт.

4

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

2шт.

5

1284314C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 235 inch, tractor to reel ift cylinder, Initial service of hose requires fittings 218-734 and 218-454

1шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 9/16-18 inch flare x 1/2 inch PT

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

7

1276684C1

HOSE

- cylinder to 1/4 OD line, prior to P.I.N. 4419

2шт.

7

1344536C1

HOSE

- cylinder to 3/8 OD line, P.I.N. 4419 and after

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

9

1251872C2

HYDRAULIC HOSE

HOSE - cylinder to line (Initial service of hose requires fitting 218-980)

1шт.

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree , 9/16-18 inch flare x swivel flare

1шт.

10

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR- straight, 9/16-18 inch flare

1шт.

11

1337507C1

TUBE,9.53 mm OD

- center reel cylinder return

1шт.

12

1337508C1

TUBE,9.53 mm OD

- to center reel cylinder

1шт.

13

1337505C1

TUBE,6.4 mm OD

- to right-hand reel cylinder, left-hand side, 1/4 OD, prior to P.I.N. 4419

1шт.

13

1980593C1

HYD TUBE

TUBE - to right-hand reel cylinder, left-hand side, 3/8 OD, P.I.N. 4419 and after

1шт.

14

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16 x 18 inch flare x flare

2шт.

15

393704R92

HYDRAULIC HOSE

HOSE - hydraulic, line to center reel cylinder, initial service of hose requires fitting 218-5105

2шт.

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

-90 degree,9/16-18 inch flare x adjustable O-ring boss

2шт.

16

1954807C1

CLAMP

- hose

3шт.

17

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

3шт.

18

231-4116

NUT,3/8"-16, GB

NUT - hex, self locking, 3/8 inch NC

3шт.

19

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16-20 inch flare

2шт.

20

1337504C1

TUBE,6.4 mm OD

- connector

1шт.

21

1337506C1

TUBE,6.4 mm OD

- to right-hand reel cylinder, right-hand side, 1/4 OD Prior to P.I.N. 4419

1шт.

21

1980591C1

HYD TUBE

TUBE - to right-hand reel cylinder, right-hand side 3/8 OD P.I.N. 4419 and after

1шт.

22

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adjustable O-ring branch x flare x flare

1шт.

23

1954808C1

HOSE

- head lift, Serial Range: cylinder-valve

1шт.

24

1960338C1

HYD TUBE,6.4 mm OD

TUBE - to right-hand wheel, left-hand side

1шт.

25

1337503C1

TUBE,6.4 mm OD

- to right-hand wheel, right-hand side

1шт.

26

1276745C1

HOSE

, Serial Range: --cylinder

1шт.

27

1337509C1

CLIP

- nylon, for 1/4 inch OD tube

1шт.

28

1337510C1

CLIP

- nylon, for 3/8 inch OD tube

1шт.

29

1337504C1

TUBE,6.4 mm OD

- reel line connector, 1/4 tube, prior to P.I.N. 4419

1шт.

29

1980592C1

HYD TUBE

TUBE - reel line connector, 3/8 tube , P.I.N. 4419 and after

1шт.

30

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16-20 inch flare, prior to P.I.N. 4419

2шт.

30

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare, P.I.N. 4419 and after

2шт.

31

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

hydraulic

2шт.

32

1337996C1

CYLINDER

hydraulic

1шт.

33

1337009C1

CYLINDER ASSY.

CYLINDER, hydraulic

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
