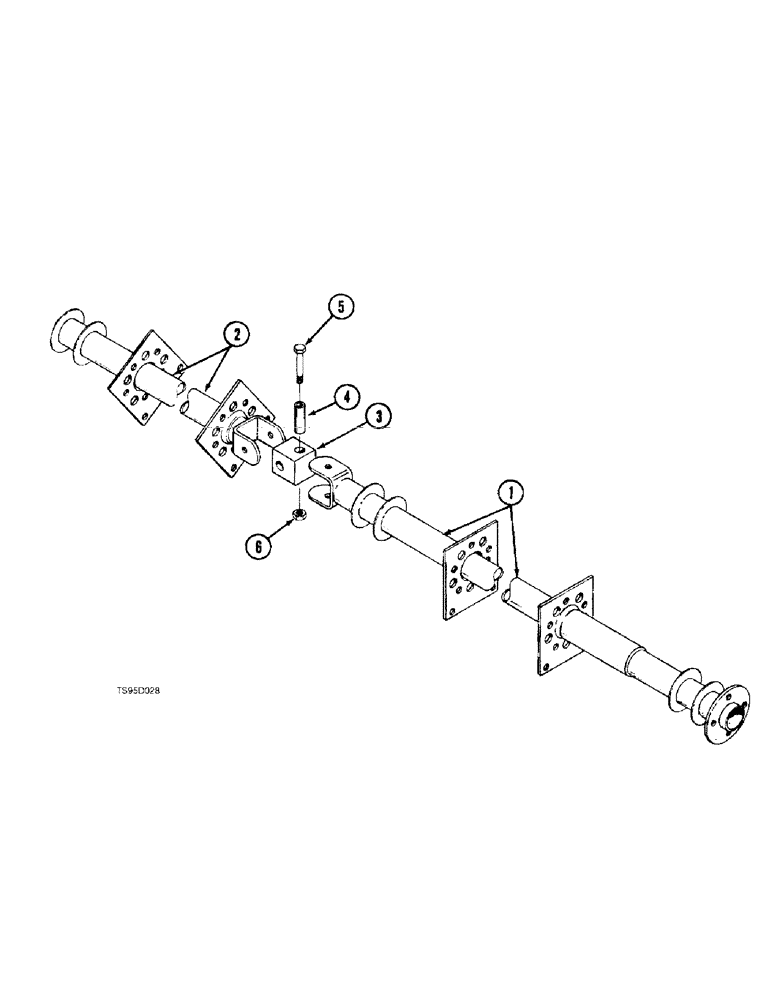

Запчасти Case IH 736 (9-52) - BAT REEL SHAFTS, 736 WINDROWER ONLY (09) - CHASSIS

1

1954863C1

SHAFT

- reel, left-hand

1шт.

2

1954864C1

SHAFT

- reel, right-hand

1шт.

3

1336278C1

BLOCK

- shaft

1шт.

4

1336279C1

SPACER

SLEEVE - block

2шт.

5

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

6

9412230

LOCK NUT

- lock, 1/2 inch NC distorted thread

2шт.
