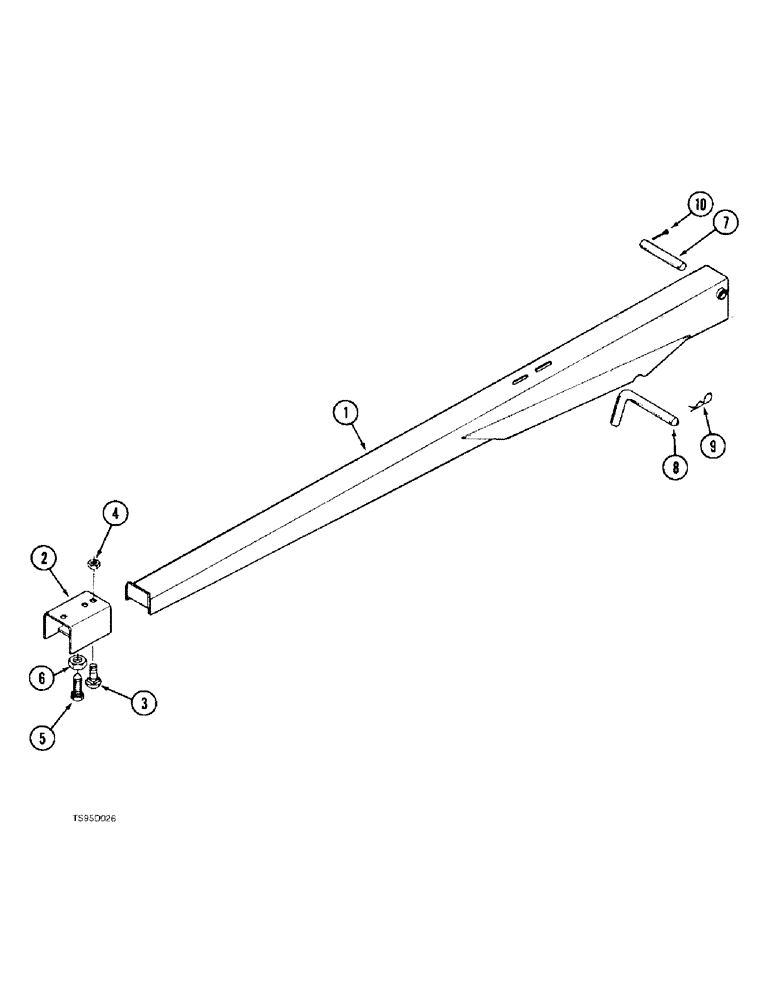

Запчасти Case IH 736 (9-48) - CENTER REEL SUPPORT ARM, 736 WINDROWER ONLY (09) - CHASSIS

1

1954866C1

ARM

- support, center

1шт.

2

1954865C1

BRACKET

- bearing

1шт.

3

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

BOLT - carriage, 3/8 NC x 4 inch

2шт.

4

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

5

1986007C1

SCREW

- positioning

1шт.

6

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

7

1954806C1

PIN

- support arm

1шт.

8

1954870C1

PIN

- "L"

1шт.

9

591107R1

COTTER PIN

- hair

1шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.
