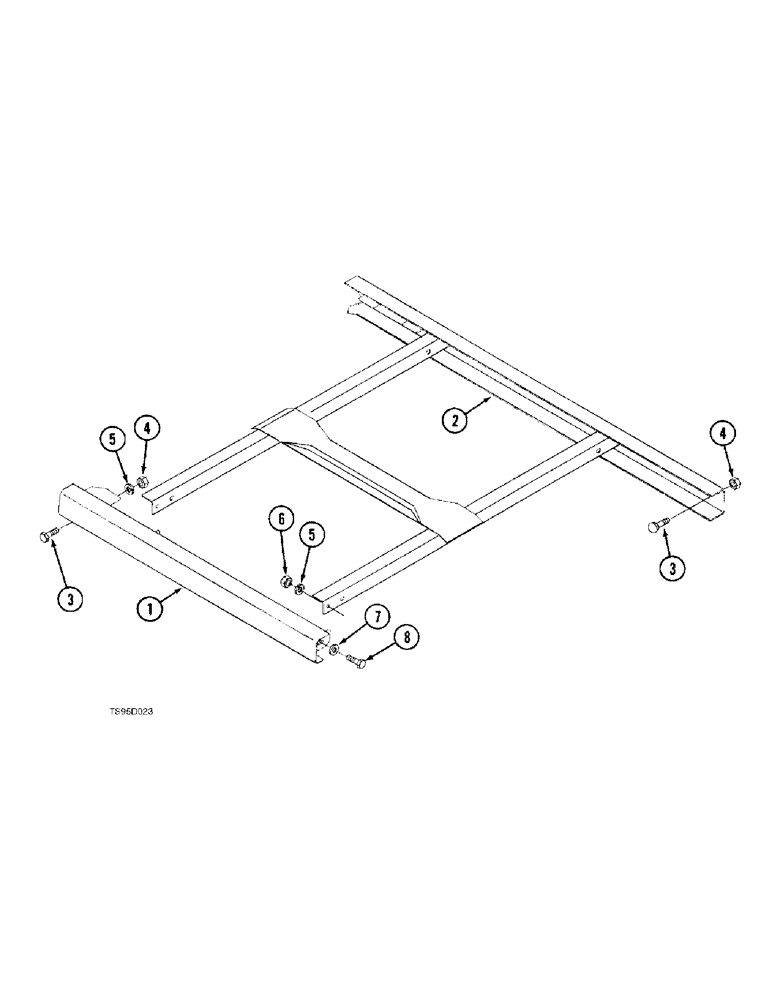

Запчасти Case IH 736 (9-42) - ADJUSTABLE DRAPER TRACK, 736 WINDROWER ONLY (09) - CHASSIS

1

1954856C1

TRACK CHAIN

TRACK - adjustable, draper (front)

1шт.

2

1954857C1

TRACK CHAIN

TRACK - adjustable, draper (rear)

1шт.

3

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT -carraige, 3/8 inch - 16 NC x 3/4 inch

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

492-11038

LOCK WASHER,3/8"

5шт.

6

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
