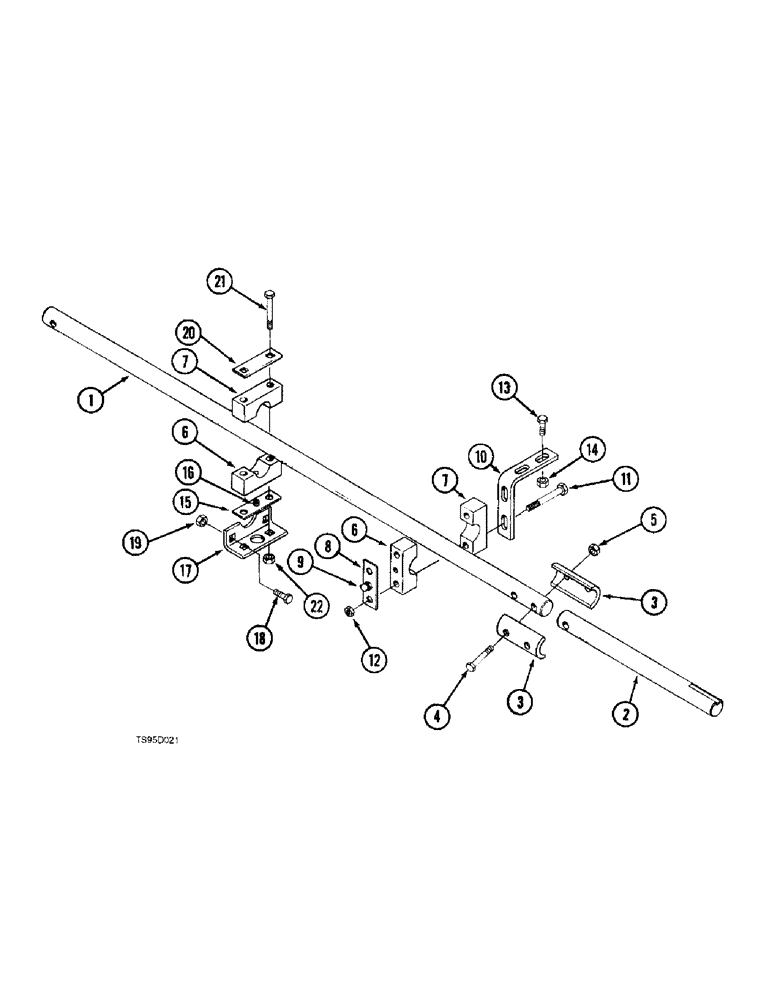

Запчасти Case IH 736 (9-36) - DRAPER DRIVE SHAFT, 736 WINDROWER ONLY (09) - CHASSIS

1

1337511C1

SHAFT

- drive, draper

1шт.

2

1337512C1

SHAFT

- end

1шт.

3

1276621C1

COUPLING

COUPLER - shaft

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

1337585C1

SUPPORT

BEARING - wooden, with grease hole

3шт.

7

1337586C1

SUPPORT

BEARING - wooden, without grease hole

3шт.

8

1337587C1

CAP

ASSEMBLY - bearing, with 90 degree grease fitting

2шт.

9

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

10

1337588C1

PLATE

- bearing

2шт.

11

27446R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

BOLT - carriage, 5/16 NC x 3 inch

4шт.

12

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

13

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

15

1337584C1

BAR

CAP ASSEMBLY - bearing, with straight grease fitting

1шт.

16

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4-28 taper x 11/16 inch

1шт.

17

1337582C1

BRACKET

- mounting

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

1337583C1

BAR

CAP - bearing

1шт.

21

27446R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

BOLT - carriage, 5/16 NC x 3 inch

2шт.

22

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.
