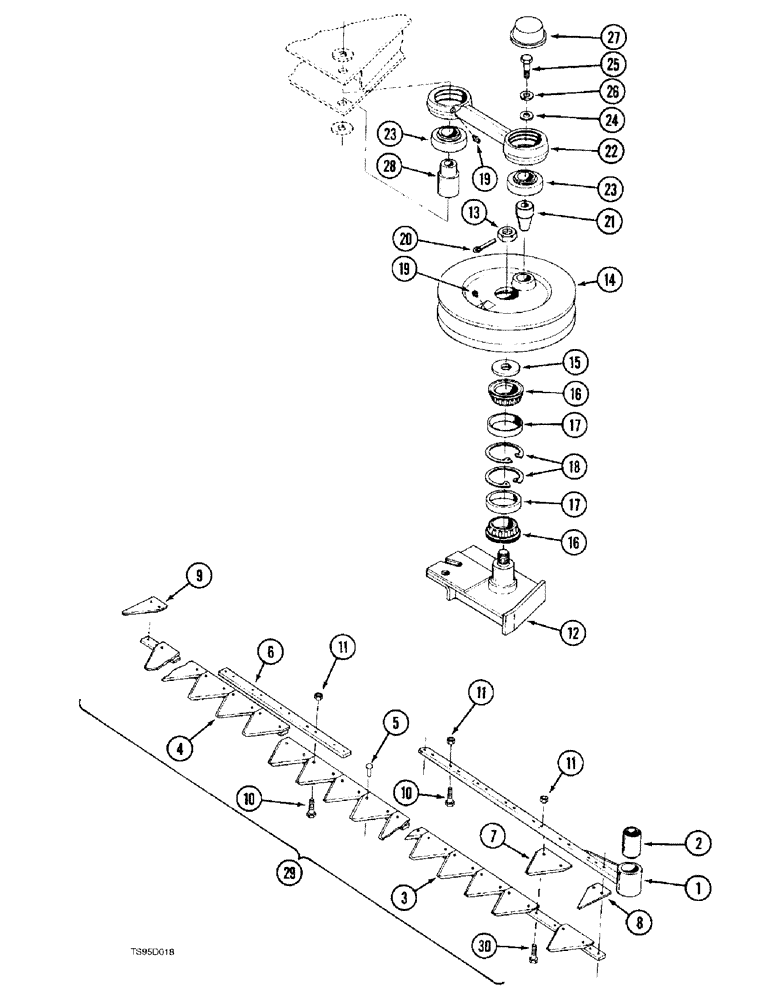

Запчасти Case IH 736 (9-30) - KNIFE AND KNIFE DRIVE, 736 WINDROWER ONLY (09) - CHASSIS

1

1986018C1

HEAD

- knife, prior to P.I.N. 4419

1шт.

REF: #1 - SHOULD READ 1986018C1 HEAD-KNIFE AFTER PIN 4419.

1шт.

1

1980989C1

HEAD

- knife, P.I.N. 4419 and after

1шт.

REF:#1A - SHOULD READ 1980989C1 HEAD-KNIFE PRIOR TO PIN 4419.

1шт.

2

825827C1

BUSHING

- rubber

1шт.

3

1954818C1

KNIFE

- left-hand

1шт.

4

1954819C1

KNIFE

- right-hand

1шт.

5

991014R91

KIT

RIVET - round head, 0.208 diameter x 5/8 inch

1шт.

6

825929C1

BAR

PLATE - splice

1шт.

7

596321R4

KNIFE SECTION

SECTION - knife, top serrated

143шт.

8

825277C1

KNIFE SECTION

SECTION - half, left-hand

1шт.

9

619078R1

KNIFE

SECTION - half, right-hand

1шт.

10

1979166C1

BOLT

BOLT - slotted head ribbed neck, No. 12-24 NC x 1-1/8 inch, prior to P.I.N. 4419, 25 req\xd5 d

16шт.

REF: #10A - SHOULD READ 1979166C1 BOLT USED ON MACHINE AFTER PIN 4419.

1шт.

10

1954815C1

BOLT

- ribbed neck, No. 12-24 NC x 1.0 gr. 8, P.I.N. 4419 and after

16шт.

REF: #10 - SHOULD READ 1954815C1 BOLT USED ON MACHINES PRIOR TO PIN 4419.

1шт.

11

1954816C1

LOCK NUT

NUT - hex lock, No. 12-24, distorted thread

25шт.

12

1954840C1

SPINDLE

- knife drive

1шт.

13

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, 3/4 inch - 16 NF

1шт.

1954841C1

PULLEY

ASSEMBLY - crank

1шт.

14

NSS

NOT SOLD SEPARAT

PULLEY - crank

1шт.

15

1336954C1

WASHER

- flat

1шт.

16

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

CONE - tapered roller bearing

2шт.

17

478793R1

BEARING CUP

CUP - bearing

2шт.

18

100-21256

SNAP RING,2.562", Int, #256

Ring, Snap, 2.562", Int, #256

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

20

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

21

1954842C1

PIN

- tapered

1шт.

22

1954843C1

PITMAN

ASSEMBLY - includes bearings item 23 and grease fittings, item 19

1шт.

23

1954871C1

SPHERICAL BEARING

- less collar, re-lube

2шт.

24

1344995C1

PLATE

WASHER - flat

1шт.

25

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

820166C1

CAP

- dust

1шт.

28

1954845C1

PIN

- pitman

1шт.

29

1969142C1

KNIFE

ASSEMBLY - without head, includes items 3, 4, 6, 10 (10) and 11 (10)

1шт.

30

1979166C1

BOLT

BOLT - slotted head ribbed neck, No. 12 NC x 1-1/8 inch, P.I.N. 4419 and after

9шт.
