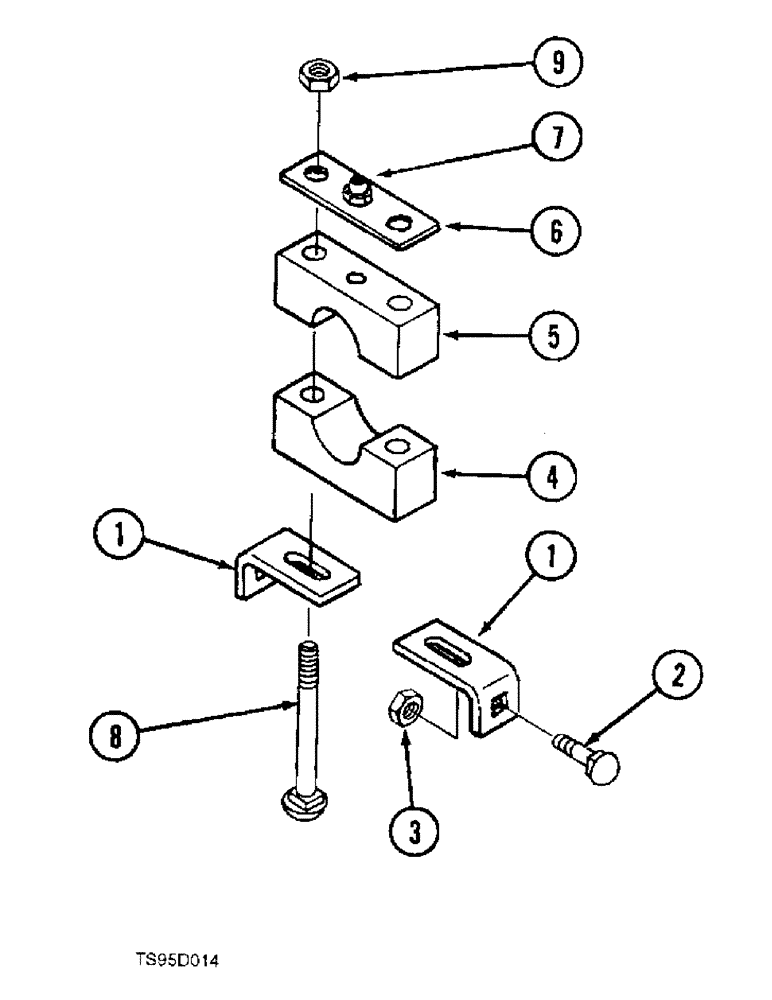

Запчасти Case IH 736 (9-22) - MAIN DRIVE SHAFT BEARING, 736 WINDROWER (09) - CHASSIS

1

1337498C1

PLATE

- bearing

2шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

3

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

4

1954873C1

BEARING HALF

- wooden, lower, without grease hole

1шт.

5

1954874C1

BEARING HALF

- wooden, upper, with grease hole

1шт.

6

1337584C1

BAR

CAP - bearing, with grease fitting

1шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

8

27446R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

BOLT - carriage, 5/16 NC x 3 inch

2шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Distorted thread 5/16"-18, GC

2шт.
