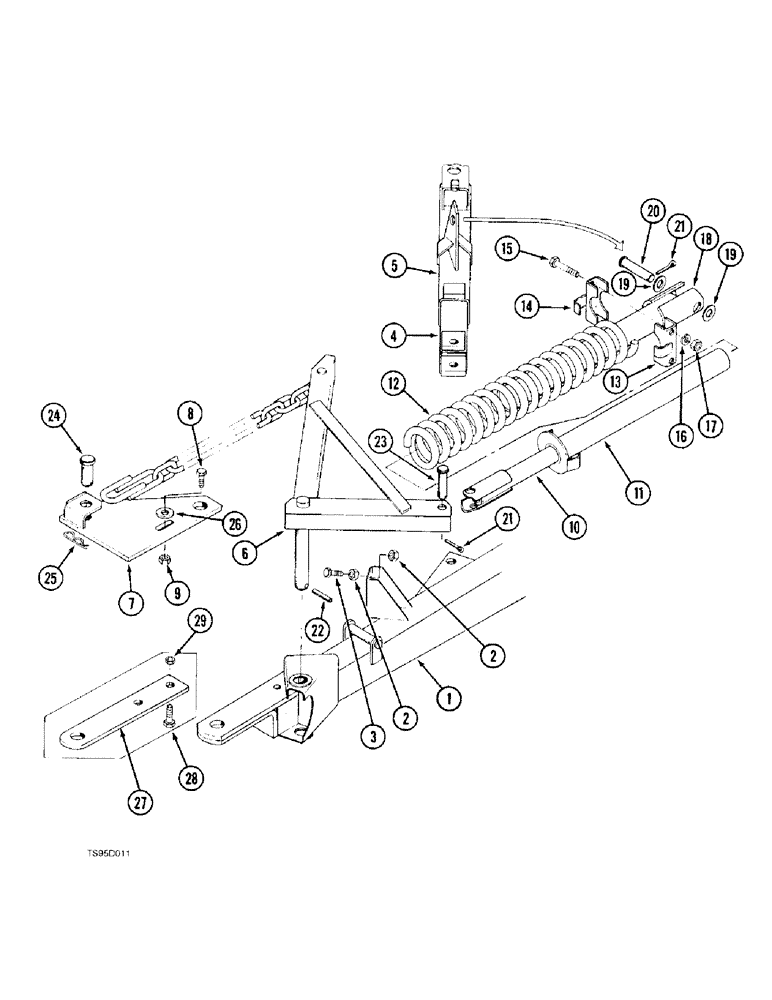

Запчасти Case IH 736 (9-14) - FRONT HITCH AND STABILIZER ASSEMBLY, 736 WINDROWER ONLY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
1973371C1
HITCH ASSY, TRAILER
HITCH - front, if used, also order jack 1973369C1, page 9-11, item 40
1шт.
2
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
3
931008R1
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd
- hex, 1/2 NC x 3-1/2 inch, thread full length
1шт.
4
1334199C1
TUBE,72 mm OD, 1184 mm Length
CHANNEL - inside, hitch
1шт.
5
1954850C1
TRAILER HITCH
CHANNEL - outside, hitch
1шт.
6
1954851C1
STABILIZER
ARM - radius, stabilizer
1шт.
7
1954852C1
PLATE
- drawbar
1шт.
8
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
1шт.
9
232-41110
NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
1шт.
10
1954853C1
TUBE
- inner
1шт.
11
80740C1
TUBE
- clamp
1шт.
12
825997C1
SPRING
- stabilizer
1шт.
13
80738C1
CLAMP
- spring, clip extends 20 mm past clamp side
1шт.
14
80737C1
CLAMP
- spring, clip extends 30 mm past clamp side
1шт.
15
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
- hex, 1/2 NC x 4-1/2 inch
2шт.
16
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
17
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
18
1954854C1
TUBE,170 mm Length
- outer
1шт.
19
496-11081
WASHER,13/16" x 1 1/2" x .134", HDN
Flat 13/16" x 1 1/2" x .134", HDN
2шт.
20
1281386C1
PIN
- clevis, 3/4 x 3-1/4 inch
1шт.
21
432-1220
COTTER PIN,3/16" x 1 1/4"
3/16" x 1 1/4"
2шт.
22
38-32432
PIN,3/8" x 2", Coiled
1шт.
23
724775R1
HEADED PIN,3/4" x 3 1/4"
PIN - headed, clevis, 3/4 x 2-3/4 inch
1шт.
24
439-51644
HEADED PIN,1" x 2 3/4", G5
PIN - headed, 1 x 2-3/4 inch
1шт.
25
591107R1
COTTER PIN
- hair
1шт.
26
396-41066
WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk
- flat, 21/32 x 1-1/2 x 3/16 inch, hardened
1шт.
1954855C1
KIT
- hitch plate, for tractors without clevis drawbar
1шт.
27
1960289C1
PLATE
- hitch
1шт.
28
413-1288
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5
- hex, 3/4 NC x 5-1/2 inch
1шт.
29
231-41312
LOCK NUT,3/4"-10, GB
NUT - hex, self-locking, 3/4 inch NC
1шт.
Выбрано товаров: 30
