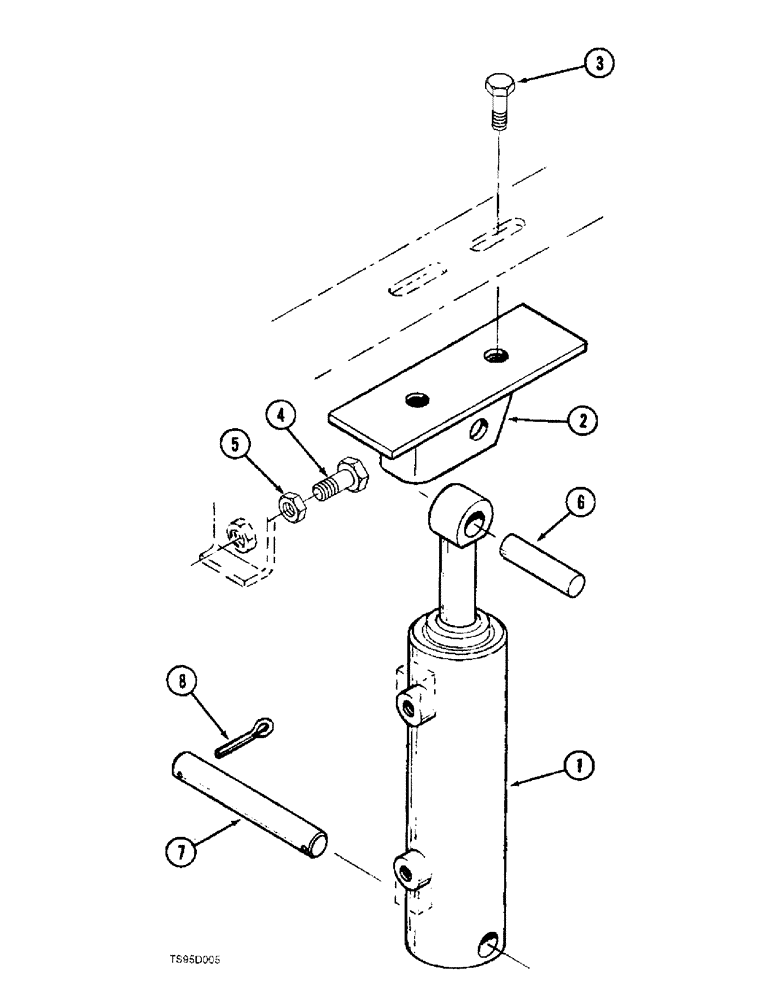

Запчасти Case IH 736 (8-20) - CENTER REEL LIFT CYLINDER, 736 WINDROWER ONLY (08) - HYDRAULICS

1

1986047C1

CYLINDER,Double Acting, 30mm Rod, 155mm Stroke

ASSEMBLY- double acting, center reel lift

1шт.

1986073C1

SEAL KIT

KIT - seal, for center reel lift cylinder 1986047C1, not shown

1шт.

1986074C1

PISTON

- for center reel lift cylinder 1986047C1, not shown

1шт.

2

1954804C1

BRACKET

- mounting, cylinder

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex, serrated flange, 1/4 NC x 1 inch

2шт.

4

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

BOLT - hex, 5/8 NC x 2-1/2 inch

1шт.

5

129-107

NUT,5/8"-11, G5

1шт.

6

1954805C1

PIN

- cylinder anchor, upper

1шт.

7

1954806C1

PIN

- cylinder anchor, lower

1шт.

8

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.
