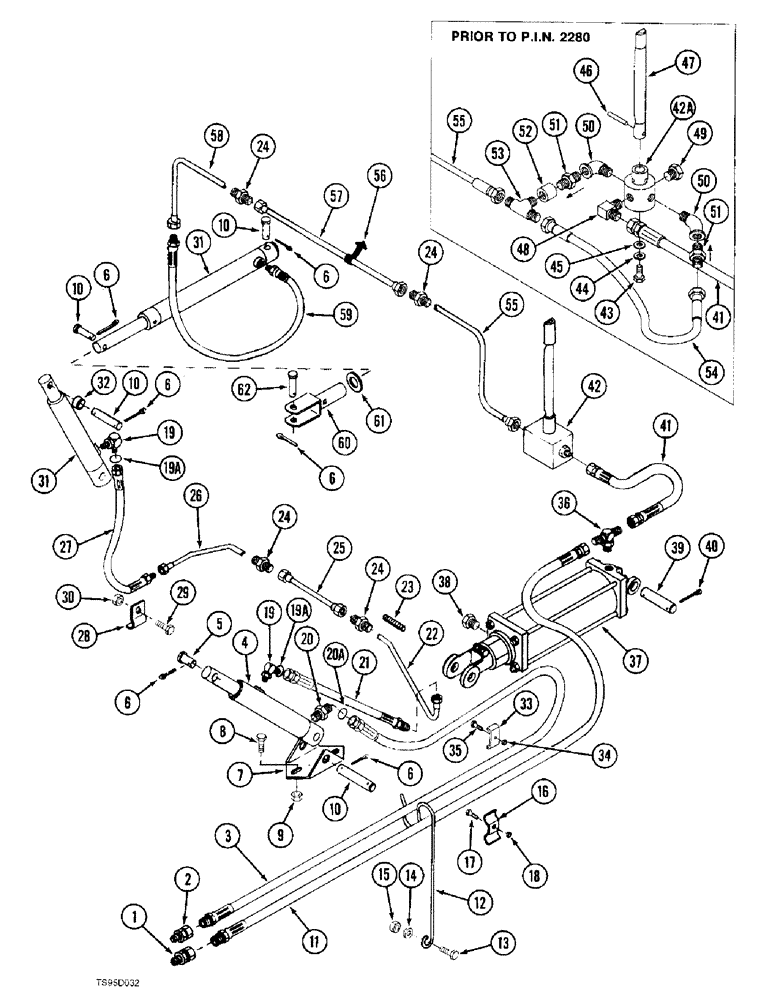

Запчасти Case IH 730 (8-08) - 721, 725, AND 730 WINDROWER HYDRAULIC CIRCUIT, P.I.N. 516 AND AFTER (08) - HYDRAULICS

1

1281401C1

UNION

- swivel adapter, restricting, 0.078 inch orifice

1шт.

2

1281402C1

UNION

- swivel adapter, restricting, 0.052 inch orifice

1шт.

3

1276736C1

HYDRAULIC HOSE,9.52 mm ID x 5430.00 mm

- Tractor to LH reel lift cylinder 9.52 mm ID x 5430.00 mm

1шт.

4

1276741C1

CYLINDER

- left-hand reel lift, with rectangular port blocks, if used

1шт.

4

1337009C1

CYLINDER ASSY.

CYLINDER - left-hand reel lift, with round port blocks, if used

1шт.

823143C91

SEAL KIT

KIT - seal, for left-hand reel lift cylinder 1337009C1

1шт.

1281388C1

SEAL KIT

KIT - seal, for left-hand reel lift cylinder 1276741C1

1шт.

161332C1

PISTON

- for left-hand reel lift cylinders

1шт.

5

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

PIN - clevis, 5/8 x 1-9/16 inch

1шт.

6

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

7шт.

7

1276749C1

BRACKET

- mounting, cylinder

2шт.

8

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

1344998C1

CLEVIS PIN

PIN - clevis, 5/8 x 2-1/2 inch

5шт.

11

1276737C1

HYDRAULIC HOSE,9.52 mm ID x 5182.00 mm

- Tractor to header lift cylinder 9.52 mm ID x 5182.00 mm

1шт.

12

1276138C1

SUPPORT - hoses

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

15

9412230

LOCK NUT

- lock, 1/2 inch NC, distorted thread

1шт.

16

1276765C1

CLAMP

- hose, double

2шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss

2шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, if used

1шт.

21

1276684C1

HOSE

- from left-hand reel lift cylinder

1шт.

22

80718C1

REEL

TUBE - from left reel cylinder, 21, 25 and 30 foot models, prior to P.I.N. 2280

1шт.

22

1960330C1

TUBE,6.4 mm OD

- from left reel cylinder, 21 and 25 foot models, P.I.N. 2280 and after

1шт.

22

1337505C1

TUBE,6.4 mm OD

- from left reel cylinder, 30 foot models, P.I.N. 2280 and after

1шт.

23

1276748C1

TUBE

HOSE - protective

1шт.

24

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16-20 inch flare, 3 used on 21 foot models

4шт.

196

TUBE - intermediate, reel line, 25 foot models, P.I.N. 2280 and after, not used on 21 foot models

1шт.

196

TUBE - intermediate, reel line, 30 foot models, P.I.N. 2280 and after

1шт.

133

TUBE - to right-hand reel cylinder, 21, 25 and 30 foot models, P.I.N. 2280 and after.

1шт.

909

TUBE - to right-hand reel cylinder, 21 foot models, prior to P.I.N. 2280

1шт.

127

TUBE - to right-hand reel cylinder, 25 foot models, prior to P.I.N. 2280

1шт.

127

TUBE - to right-hand reel cylinder, 30 foot models, prior to P.I.N. 2280

1шт.

127

HOSE - to right-hand reel lift cylinder, P.I.N. 516 through 735

1шт.

134

HOSE - to right-hand reel lift cylinder, P.I.N. 736 and after

1шт.

127

CLAMP - hose, single

2шт.

434

BOLT - carriage, 3/8 NC x 1 inch

1шт.

30

231-4116

NUT,3/8"-16, GB

NUT - hex, self locking, 3/8 inch NC

2шт.

31

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

- single acting, right-hand reel lift and wheel

2шт.

823144C91

SEAL KIT

- seal, for single acting cylinder

1шт.

32

1276751C1

SPACER

- cylinder

2шт.

33

1954807C1

CLAMP

- hose

1шт.

34

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

35

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

1шт.

36

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adjustable O-ring branch x flare x flare

1шт.

37

1276752C1

CYLINDER

- header lift

1шт.

1276739C2

SEAL KIT

KIT - seal, header lift cylinder

1шт.

1986009C1

PISTON

- header lift cylinder

1шт.

38

1337119C1

PLUG

BREATHER - cylinder

1шт.

39

1276449C1

PIN

- cylinder

2шт.

40

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

41

1276754C1

HOSE

- cylinder to valve, 30 foot models, prior to P.I.N. 2280

1шт.

41

1954808C1

HOSE

- cylinder to valve, 30 foot models, P.I.N. 2290 and after

1шт.

41

1276755C1

HOSE

- cylinder to valve, 21 and 25 foot models, prior to P.I.N. 2280

1шт.

41

1960328C1

HOSE

- cylinder to valve, 21 and 25 foot models, P.I.N. 2280 and after

1шт.

42

1954809C1

VALVE

ASSEMBLY - selector, P.I.N. 2280 and after, parts list page 8-19

1шт.

42a

1276756C1

VALVE

- selector, with O-ring, prior to P.I.N. 2280, no other components serviced separately.

1шт.

42b

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

Not shown -113, 70 Duro, .549" ID x .103" Thk

1шт.

43

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

44

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

80706C1

WASHER

- dished, prior to P.I.N. 2280

2шт.

46

38-32024

PIN,5/16" x 1 1/2", Coiled

- spiral, 5/16 x 2 inch, prior to P.I.N. 2280

1шт.

47

1281395C1

HOSE

- prior to P.I.N. 2280, for wheel lock handle, see page 9-7

1шт.

48

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

49

397299R1

PLUG

- pipe, prior to P.I.N. 2280

1шт.

50

NLS

NO LONGER SERVICED

ELBOW - 90 degree street, prior to P.I.N. 2280

1шт.

51

1281477C1

VALVE

- check, prior to P.I.N. 2280, prior to P.I.N. 736 also order 105409, item 52

2шт.

52

NLS

NO LONGER SERVICED

COUPLING - steel pipe, prior to P.I.N. 2280

2шт.

53

1276759C1

TEE

- branch, male, prior to P.I.N. 2280

1шт.

54

1276758C1

HOSE

- tee to check valve, prior to P.I.N. 2280

1шт.

55

80719C1

TUBE,6.35 mm OD, 566, 220 mm Length

- from tee at selector valve, prior to P.I.N. 2280

1шт.

55

1960338C1

HYD TUBE,6.4 mm OD

TUBE - from selector valve, P.I.N. 2280 and after

1шт.

56

1337509C1

CLIP

- nylon, for 1/4 inch OD tube, P.I.N. 2280 and after

1шт.

57

1960334C1

TUBE,6.4 mm OD

- intermediate, right-hand wheel, 21 foot models, P.I.N. 2280 and after

1шт.

57

1960332C1

TUBE,6.4 mm OD

- intermediate, right-hand wheel, 25 foot models, P.I.N. 2280 and after

1шт.

57

1960331C1

TUBE,6.4 mm OD

- intermediate, right-hand wheel, 30 foot models, P.I.N. 2280 and after

1шт.

58

1337503C1

TUBE,6.4 mm OD

- to right-hand wheel cylinder, 21, 25 and 30 foot models, P.I.N. 2280 and after

1шт.

58

90963C1

TUBE

- to right-hand wheel cylinder, 21 foot models, prior to P.I.N. 2280

1шт.

58

1276766C1

TUBE

- to right-hand wheel cylinder, 25 foot models, prior to P.I.N. 2280

1шт.

58

1276760C1

TUBE

- to right-hand wheel cylinder, 30 foot models, prior to P.I.N. 2280

1шт.

59

1276745C1

HOSE

- to wheel cylinder

1шт.

60

1276761C1

CLEVIS

- cylinder

1шт.

61

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

7шт.

62

22909R1

HEADED PIN,3/4" x 3"

PIN - clevis, 3/4 x 2-1/2 inch

1шт.

19a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
