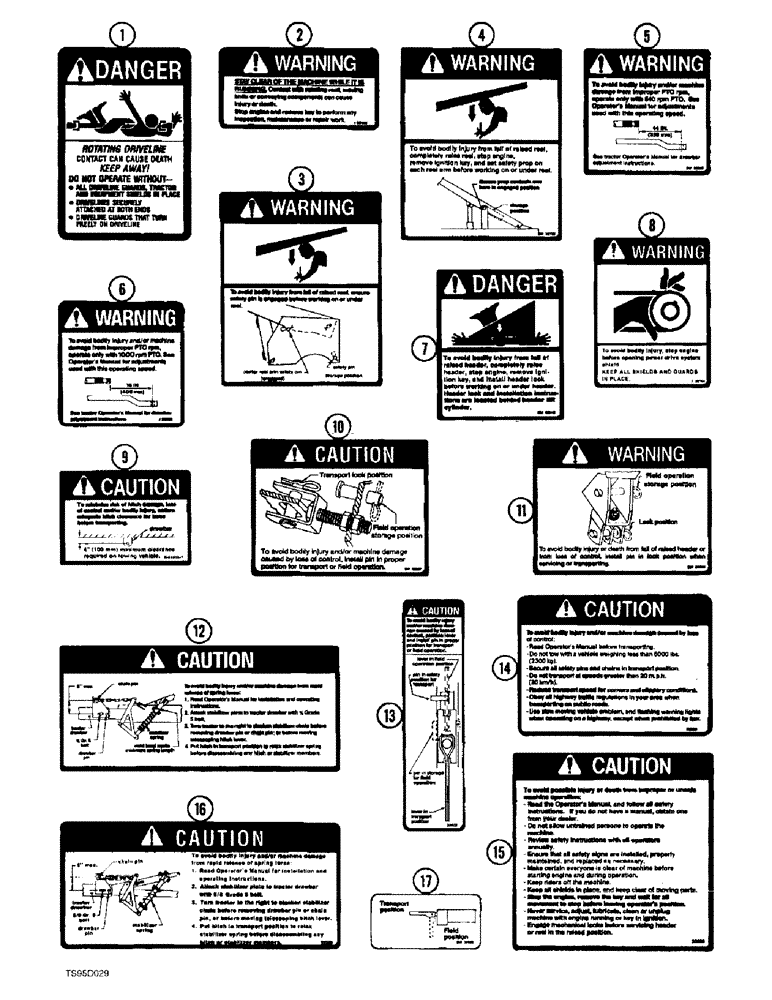

Запчасти Case IH 730 (9-54) - DECALS (09) - CHASSIS

1

80672C1

DECAL

- Danger, rotating driveline, contact can cause death

1шт.

Part of decal kit P/N 1276664C93.

1шт.

2

1281492C1

DECAL

- Warning - Stay Clear Of The Machine While It Is Running

1шт.

Part of decal kit P/N 1276664C93.

1шт.

3

1344553C1

DECAL

- Warning - Center Reel Arm Pin, 736 only

1шт.

4

1344551C1

DECAL

- Warning - Reel Props

2шт.

Part of decal kit P/N 1276664C93.

1шт.

5

96179C1

DECAL

- Warning - Power Drive System Shields, 540 RPM

1шт.

Part of decal kit P/N 1276664C93.

1шт.

6

1276848C1

PRODUCT GRAPHIC

DECAL - Warning - Power Drive System Shields, 1000 RPM

1шт.

Part of decal kit P/N 1276664C93.

1шт.

7

1344554C2

DECAL

- Danger - Header Safety

1шт.

Part of decal kit P/N 1276664C93.

1шт.

8

1344550C1

DECAL

- Warning - Shields & Guards, 7 required for model 736

6шт.

9

1333985C1

DECAL

- Caution - Clearance - Towing Vehicle

1шт.

Part of decal kit P/N 1276664C93.

1шт.

10

1281354C2

DECAL

- Caution - Transport Lock, Right Wheel

1шт.

Part of decal kit P/N 1276664C93.

1шт.

11

91196C2

DECAL

- Caution - Transport Header Lock

1шт.

Part of decal kit P/N 1276664C93.

1шт.

12

1954858C1

PRODUCT GRAPHIC

DECAL - Caution - Stabilizer Assembly, 736 only

1шт.

13

1337591C1

DECAL

- Caution - Telescoping Hitch Pin

1шт.

Part of decal kit P/N 1276664C93.

1шт.

14

1337597C1

DECAL

- Caution - Transport Precautions

1шт.

Part of decal kit P/N 1276664C93.

1шт.

15

1337595C1

DECAL

- Caution - General Precautions

1шт.

Part of decal kit P/N 1276664C93.

1шт.

16

1976260C1

DECAL

- Caution - Spring Force, 721, 725 and 730

1шт.

17

NSS

NOT SOLD SEPARAT

DECAL - Left Wheel Lock Handle

1шт.

Part of decal kit P/N 1276664C93.

1шт.

1276664C93

DECAL

KIT - decal, Includes: Ref. 1, 2, 4 - 7, 9 - 11, 13 - 15 and 17 on this figure and Ref. 18 - 23, 25 - 27, 29, 30, 32 and 33 on Figure 9-56

1шт.
