Запчасти Case IH 730 (9-44) - REEL DRIVE AND SUPPORT ARMS (09) - CHASSIS

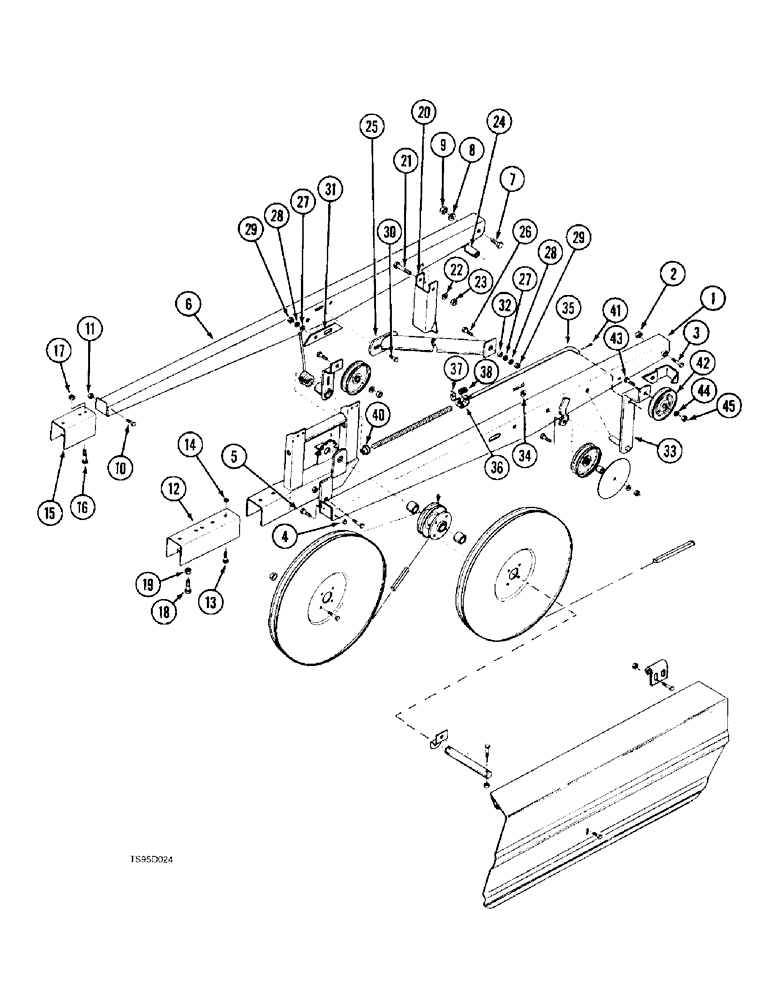

Схема запчастей Case IH 730 - (9-44) - REEL DRIVE AND SUPPORT ARMS (09) - CHASSIS
35
3
9
28
36
40
6
43
38
28
34
22
12
42
29
44
2
25
30
8
23
32
27
33
10
29
20
15
1
17
45
31
4
19
27
16
41
7
11
37
21
5
18
24
13
14
26

Артикул

Название

Примечание

Количество

1

1276533C1

SUPPORT

ARM - support, left-hand

1шт.

2

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

3

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

4

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

6

126634A1

ARM

- support, right-hand

1шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

129-107

NUT,5/8"-11, G5

1шт.

10

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

11

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

12

1276535C1

BRACKET

- bearing, left-hand

1шт.

13

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

15

1986005C1

BRACKET

- bearing, right-hand

1шт.

16

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

BOLT - carriage, 3/8 NC x 4 inch

4шт.

17

231-4116

NUT,3/8"-16, GB

NUT - hex self-locking, 3/8 inch NC

4шт.

18

1986007C1

SCREW

- positioning

2шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

2шт.

20

1276538C1

BRACKET

PROP - reel

2шт.

21

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

9412230

LOCK NUT

- lock, 1/2 inch NC distorted thread

2шт.

24

198762R1

SPACER

- reel arm

1шт.

25

1276539C1

BRACE

- reel arm

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

30

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

31

1276540C1

PLATE

- brace

1шт.

32

950019R1

SPACER

- brace

1шт.

33

1276541C1

ARM

- idler

1шт.

34

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

35

1276542C1

ROD

- spring

1шт.

36

1276543C1

CHANNEL

- stop

1шт.

37

1276544C1

WASHER

- stop

1шт.

38

1276545C1

SPRING

- channel

1шт.

39

1276546C1

SPRING

- rod

1шт.

REF # 14 P/N 1281435C1. THIS IS A 1-3/8"-21 SPLINE TRACTOR END YOKE. WE DO NOT OFFER A 1-3/4" SPLINE YOKE FOR THESE APPLICATIONS. DLR/CUSTOMER WILL HAVE TO USE AN ADAPTER, PER MARV HOOD (CASE#445622 DLR 5720158A). JBEDFORD 8/1/97.

1шт.

40

1276547C1

BUSHING

- plastic

1шт.

41

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

3шт.

42

1276626C1

PULLEY

- idler, "V"

1шт.

43

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

45

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

Выбрано товаров: 46
