Запчасти Case IH 730 (9-38) - DRAPERS AND ROLLERS (09) - CHASSIS

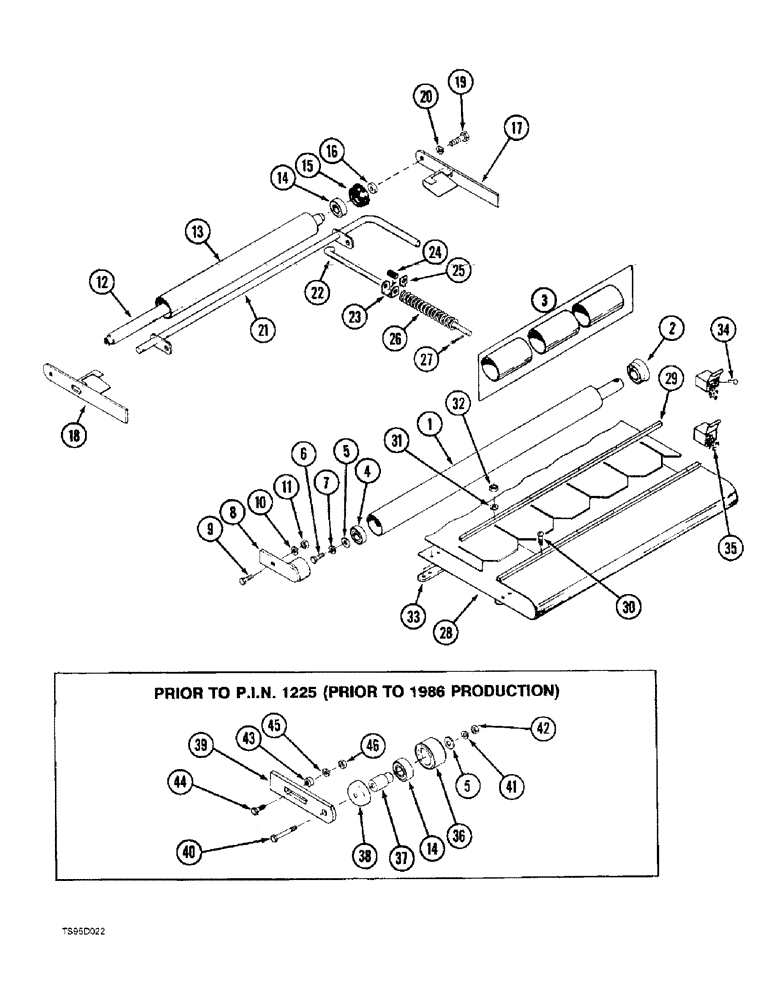

Схема запчастей Case IH 730 - (9-38) - DRAPERS AND ROLLERS (09) - CHASSIS
3
12
45
44
26
22
8
1
32
6
28
40
14
30
37
39
13
7
46
42
11
35
41
27
10
43
21
18
25
15
16
34
31
23
36
14
2
33
5
5
17
19
4
9
20
24
29
38

Артикул

Название

Примечание

Количество

1

395818A1

ROLLER ASSY.

- drive, draper, with round hole for roll pin, If replacing roller with formed groove at front end, order 1333980C1 idler roller repair kit, see below

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of drive roller repair kit P/N 1333980C1

1шт.

2

1276649C1

PLASTIC RING

BUSHING - anti-wrap

2шт.

3

823065C2

SERVICE KIT

KIT - lagging, includes three 6 inch pieces, 2 kits used per roller

1шт.

4

824933C91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BEARING - ball

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of drive roller repair kit P/N 1333980C1

1шт.

5

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of drive roller repair kit P/N 1333980C1

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

1333974C1

BAR

SUPPORT - drive roller, with square hole

2шт.

8

1333771C1

SUPPORT

- drive roller, with rectangular slot

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of drive roller repair kit P/N 1333980C1

1шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 inch - 16 NC x 1 inch

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

11

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, distorted thread

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of drive roller repair kit P/N 1333980C1

1шт.

12

1333977C1

SHAFT

- idler roller

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

13

1333976C1

TUBE,57.24 mm OD, 1043 mm Length

- idler roller, If replacing roller with formed grooves at each end, order 1333984C1 idler roller repair kit, see below

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

14

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

4шт.

15

1333970C1

RETAINER

- bearing

4шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

16

1333978C1

SPACER

- bearing retainer

4шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

17

1276652C1

SUPPORT

- idler roller

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

P/N 1276652C1 support is not in roller kit 1333984C1, this is a catalog error.

1шт.

18

1276653C1

SUPPORT

- idler roller

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

20

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

21

1333979C1

ROD

- tightener, L-handle, quantity 1 for 36 ft.

2шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

Part of idler roller repair kit P/N 1333984C1

1шт.

21

1336260C1

ROD

- tightener, left-hand, straight end, 36 foot models only

1шт.

22

1276655C1

ROD

- spring

4шт.

23

1276543C1

CHANNEL

- stop

4шт.

24

1276545C1

SPRING

- stop

4шт.

25

1276544C1

WASHER

- stop

4шт.

26

1276656C1

SPRING

- compression

4шт.

27

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

28

825801C92

SKIRT COVER

DRAPER - wood slat, left-hand, 30 foot, right-hand 21 foot and 25 foot

1шт.

28

1276658C2

BELT

DRAPER - wood slat, right-hand, 30 foot

1шт.

28

1337589C2

BELT

DRAPER - wood slat, right-hand and left-hand, 36 foot

2шт.

28

1276659C1

BELT

DRAPER - wood slat, left-hand, 25 foot

1шт.

28

90969C2

BELT

DRAPER - rubber slat, left-hand, 21 foot

1шт.

28

1336271C1

CURTAIN

DRAPER - extension, 15 inches long

1шт.

28

1995646C1

BELT

DRAPER - rubber slat, left-hand, 30 foot, right-hand 21 foot and 25 foot

1шт.

28

1327299C1

CURTAIN

DRAPER - rubber slat, right-hand, 30 foot

1шт.

28

1336268C1

BELT

DRAPER - rubber slat, left-hand and right-hand, 36 foot

2шт.

28

1960346C1

BELT

DRAPER - rubber slat, left-hand, 25 foot

1шт.

28

90968C2

DRAPER - rubber slat, left-hand, 21 foot

1шт.

P/N 90968C2 is invalid in GPS. 90968C1 is listed as a bat and subs to a bat. Part 90969C2 is listed here as having wood slats, per print the 90969C2 has rubber slats, while the 90969C1 has wood slats.

1шт.

1333980C1

ROLLER

KIT - repair, drive roller, Includes: Ref. 1, 4, 5, 8 and 11, and an instruction sheet

1шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

1333984C1

ROLLER

KIT - repair, idler roller , Includes: Ref. 12, 13, 15, 16, 17, 19, 20 and 21, and an instruction sheet

1шт.

NOTE: For 736 Windrower Adjustable Draper Track, see page 9-43.

1шт.

29

825971C11

SLAT

- connector, metal

1шт.

30

159962

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

- round head, No. 10 NC x 1-1/4 inch

1шт.

31

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

32

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

33

825970C1

SLAT

- draper, wooden

1шт.

34

151-228

RIVET,Csk, 3/16" x 9/16"

- 3/16 x 9/16 inch, 1/2 lb. package

1шт.

35

451312R1

STAPLE

- 18 gauge x 1/4 wide x 3/8 inch long, 1/2 lb. package

1шт.

36

1276648C1

RETAINER

- bearing, prior to P.I.N. 1225

6шт.

37

1276647C1

PIN

- roller, prior to P.I.N. 1225

6шт.

38

1276646C1

SHIELD

- anti-wrap, prior to P.I.N. 1225

6шт.

39

1276640C1

SUPPORT

- drive roller, prior to P.I.N. 1225

2шт.

40

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch, prior to P.I.N.1225

6шт.

41

492-11038

LOCK WASHER,3/8"

prior to P.I.N. 1225 3/8"

6шт.

42

425-106

NUT,3/8"-16, Cl 5

Prior to P.I.N. 1225 3/8"-16, G5

6шт.

43

1276650C1

SPACER

- support, prior to P.I.N. 1225

2шт.

44

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

46

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.
