Запчасти Case IH 730 (9-28) - KNIFE DRIVE, 721, 725, AND 730 WINDROWERS (CONTD) (09) - CHASSIS

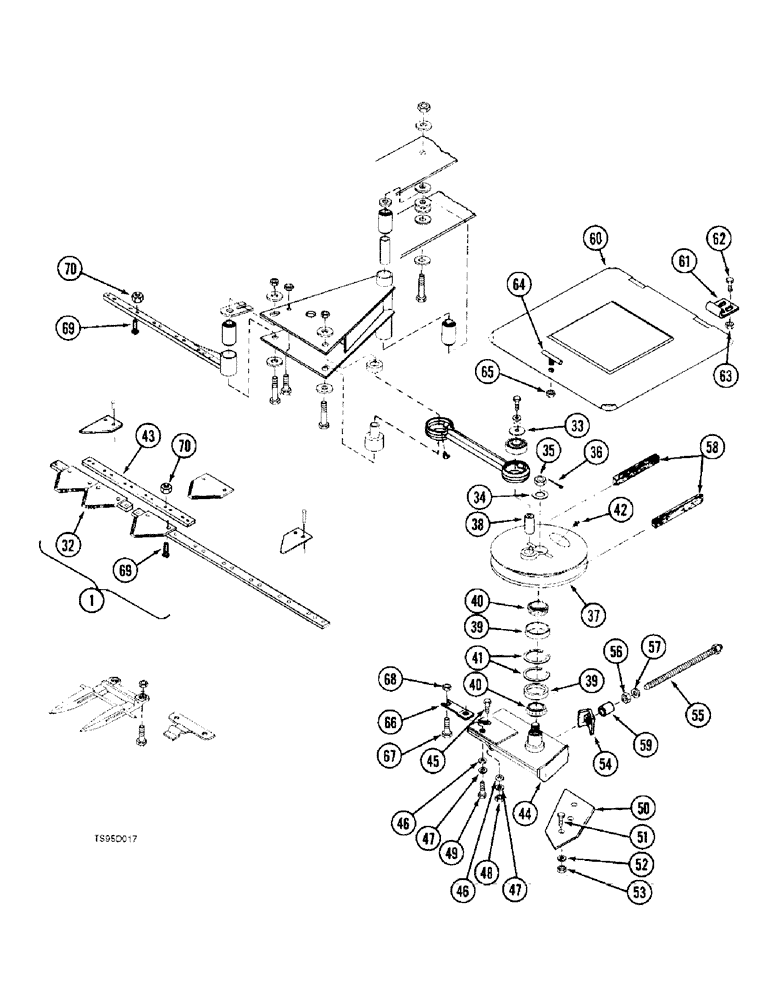

Схема запчастей Case IH 730 - (9-28) - KNIFE DRIVE, 721, 725, AND 730 WINDROWERS (CONTD) (09) - CHASSIS
55
62
39
44
65
66
48
69
68
47
60
56
46
51
59
38
45
63
54
1
39
32
58
41
40
50
49
53
64
61
35
43
46
52
70
36
33
42
34
67
69
70
47
57
37
40

Артикул

Название

Примечание

Количество

32

1960392C1

KNIFE

- 25 foot right-hand, see item 11 on page 9-27

1шт.

32

1960393C1

KNIFE

- 30 foot right-hand, see item 11 on page 9-27

1шт.

33

3420H

WASHER - flat

1шт.

34

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

1шт.

35

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

36

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

80662C1

PULLEY

ASSEMBLY- crank

1шт.

37

NSS

NOT SOLD SEPARAT

PULLEY - crank

1шт.

38

80663C1

PIN

- crank

1шт.

39

651817R1

BEARING CUP

CONE - tapered roller bearing

2шт.

40

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- tapered roller

2шт.

41

100-21231

SNAP RING,2.312", Int, #231

Ring, Snap, 2.312", Int, #231

2шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

43

825929C1

BAR

PLATE - splice (Not used for 21 foot)

1шт.

44

80665C1

SPINDLE

- knife drive

1шт.

45

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

1шт.

46

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

48

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

49

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

50

80666C1

LARGE PLATE

PLATE - clamp

1шт.

51

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

3шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

53

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

54

1276632C1

NUT

- stop

1шт.

55

1276584C1

BOLT

- adjusting

1шт.

56

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

57

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

58

188716C1

V-BELT,22.43 mm W x 2926.69 mm L

Knife drive 22.43 mm W x 2926.69 mm L

1шт.

59

825995C1

SPACER

- adjusting bolt

1шт.

60

80668C3

COVER

- knife drive, includes decals, rods and hinges

1шт.

61

NSS

NOT SOLD SEPARAT

HINGE - cover

2шт.

62

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, flange head, special, 3/8 NC x 1 inch

4шт.

63

231-5146

FLANGE NUT,3/8"-16

4шт.

64

89277C1

BOLT

- fastener, cover

1шт.

65

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

66

1281413C1

NUT

- adjusting, register

1шт.

67

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

68

231-5146

FLANGE NUT,3/8"-16

1шт.

69

1954815C1

BOLT

- slotted head ribbed neck, No. 12 NC x 1 inch, 11 used for 21 foot

21шт.

70

1954816C1

LOCK NUT

NUT - hex lock, No. 12 NC, 11 used for 21 foot

21шт.

Выбрано товаров: 41
