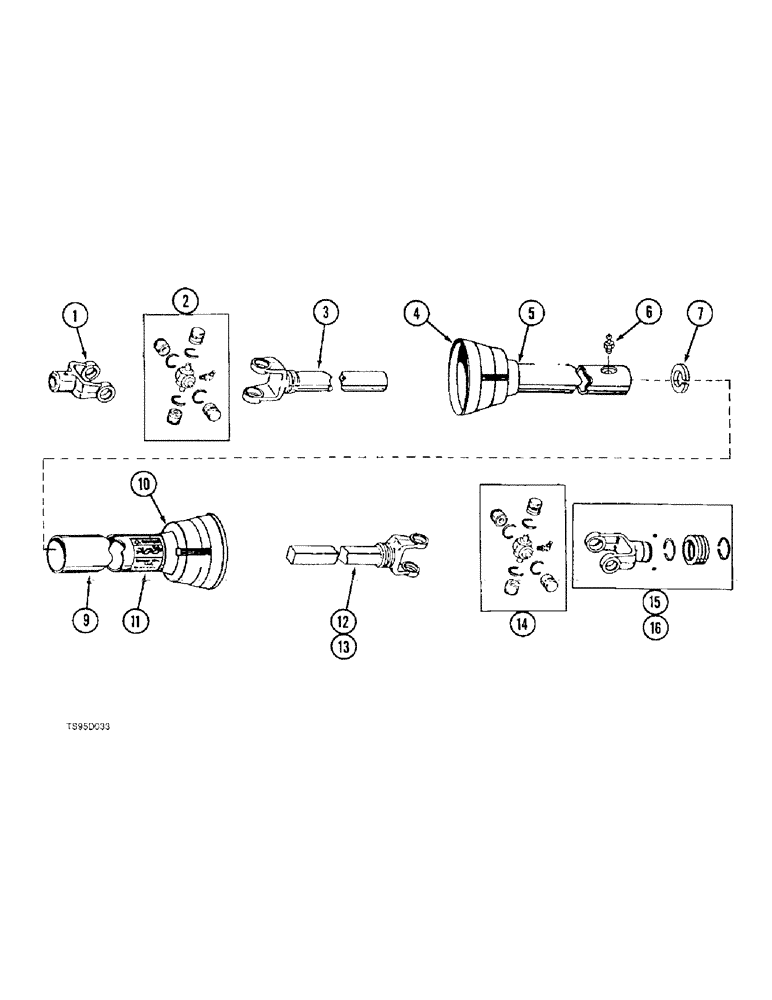

Запчасти Case IH 730 (9-25A) - DRIVE LINE, WALTERSCHEID-AGMASTER MANUFACTURED (09) - CHASSIS

1995805C1

JOINT

SHAFT ASSEMBLY - Drive rear half, Walterscheid-Agmaster manufactured

1шт.

1

1995811C1

YOKE

- end

1шт.

2

757443

U-JOINT SPIDER

KIT - cross and bearing

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - drive shaft, round tube, order 1995805C1 shaft assembly

1шт.

1995813C1

SHIELD

GUARD ASSEMBLY - drive shaft, inner

1шт.

4

NSS

NOT SOLD SEPARAT

GUARD - drive shaft, order 1995813C1 guard assembly

1шт.

5

1337986C1

KIT

BUSHING - nylon

1шт.

6

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING - grease 1/4-28 inch NF

2шт.

7

607911R1

NYLON BEARING,1.781" ID x 0.25"

BEARING - ring

1шт.

8

1326528C1

DECAL

- Danger, shield missing, do not operate, not shown

1шт.

1995804C1

JOINT

SHAFT ASSEMBLY - drive 540 RPM PTO front half, includes items 9-15

1шт.

1995806C1

GASKET

SHAFT ASSEMBLY - drive 1000 RPM PTO, front half, includes items 9-14 and item 16

1шт.

1995812C1

SHIELD

GUARD ASSEMBLY - drive shaft, outer

1шт.

9

NSS

NOT SOLD SEPARAT

GUARD - drive shaft, order 1995812C1 guard assembly

1шт.

10

1337986C1

KIT

BUSHING - nylon

1шт.

11

80672C1

DECAL

- Danger, rotating driveline, contact can cause death

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE - drive shaft, 540 RPM PTO, order 1995804C1 shaft assembly

1шт.

13

NSS

NOT SOLD SEPARAT

YOKE - drive shaft, 1000 RPM PTO, order 1995806C1 shaft assembly

1шт.

14

757443

U-JOINT SPIDER

KIT - cross and bearing

1шт.

15

1995807C1

COLLAR

YOKE - locking, drive shaft, 540 RPM PTO, included with 1995804C1 shaft assembly

1шт.

16

1995808C1

COLLAR

YOKE - locking, drive shaft, 1000 RPM PTO, included with 1995806C1 assembly

1шт.

REF #16....1 3/8--21 SPLINE

1шт.
