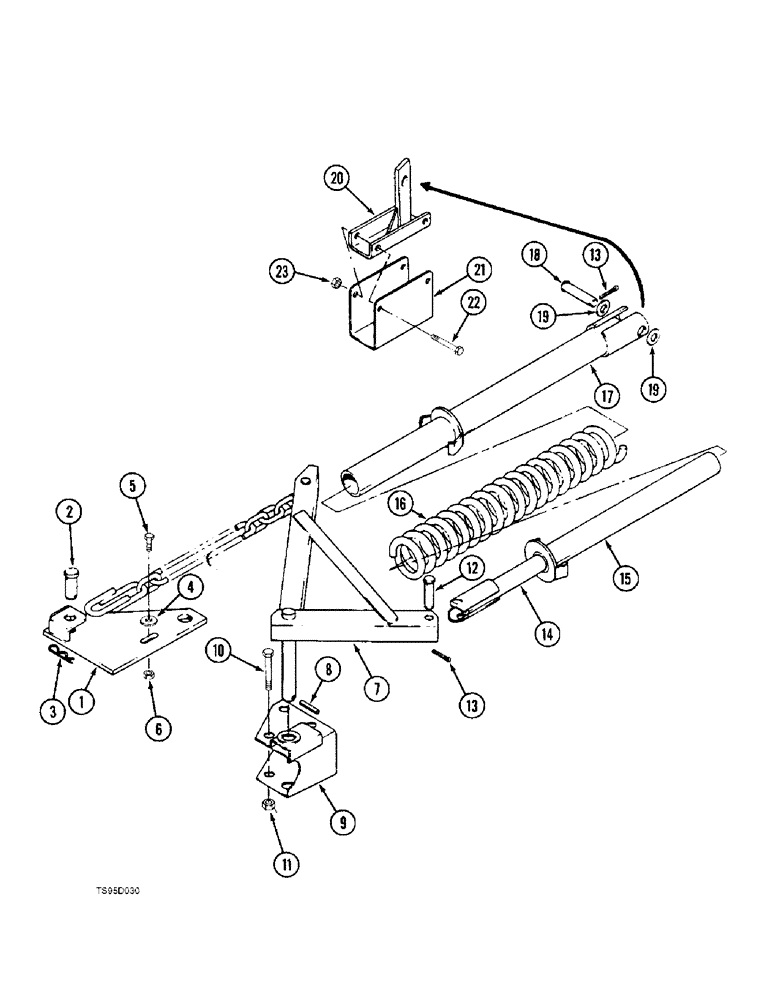

Запчасти Case IH 730 (9-16) - SIDE DRAFT CONTROL ATTACHMENT, 721, 725, AND 730 WINDROWERS ONLY (09) - CHASSIS

1976266C1

KIT - side draft control, complete, no longer available, order component parts as required

1шт.

1

1954852C1

PLATE

- drawbar

1шт.

2

439-51644

HEADED PIN,1" x 2 3/4", G5

PIN - clevis, 1 x 2-1/8 inch

1шт.

3

591107R1

COTTER PIN

- hair

1шт.

4

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

1шт.

5

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

1шт.

6

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC

1шт.

7

1954851C1

STABILIZER

ARM - radius, stabilizer

1шт.

8

38-32432

PIN,3/8" x 2", Coiled

1шт.

9

1976261C1

ANCHOR

- pivot

1шт.

10

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

3шт.

11

231-41312

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

3шт.

12

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN - clevis, 3/4 x 2-3/4 inch

1шт.

13

32-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

14

1954853C1

TUBE

- inner

1шт.

15

80740C1

TUBE

- clamp

1шт.

16

825997C1

SPRING

- stabilizer

1шт.

17

1976263C1

TUBE

- outer

1шт.

18

1281386C1

PIN

- clevis, 3/4 x 3-1/4 inch

1шт.

19

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

2шт.

20

1976262C1

CHANNEL

MOUNT - tube

1шт.

21

1976264C1

CHANNEL

- mount

1шт.

22

813-864

BOLT - hex, 1/2 NC x 4 inch

2шт.

23

9412230

LOCK NUT

- lock, 1/2 inch NC, distorted thread

2шт.

24

1976260C1

DECAL

- Caution, Spring Force, not shown, see page 9-55, item 16 for decal

1шт.
