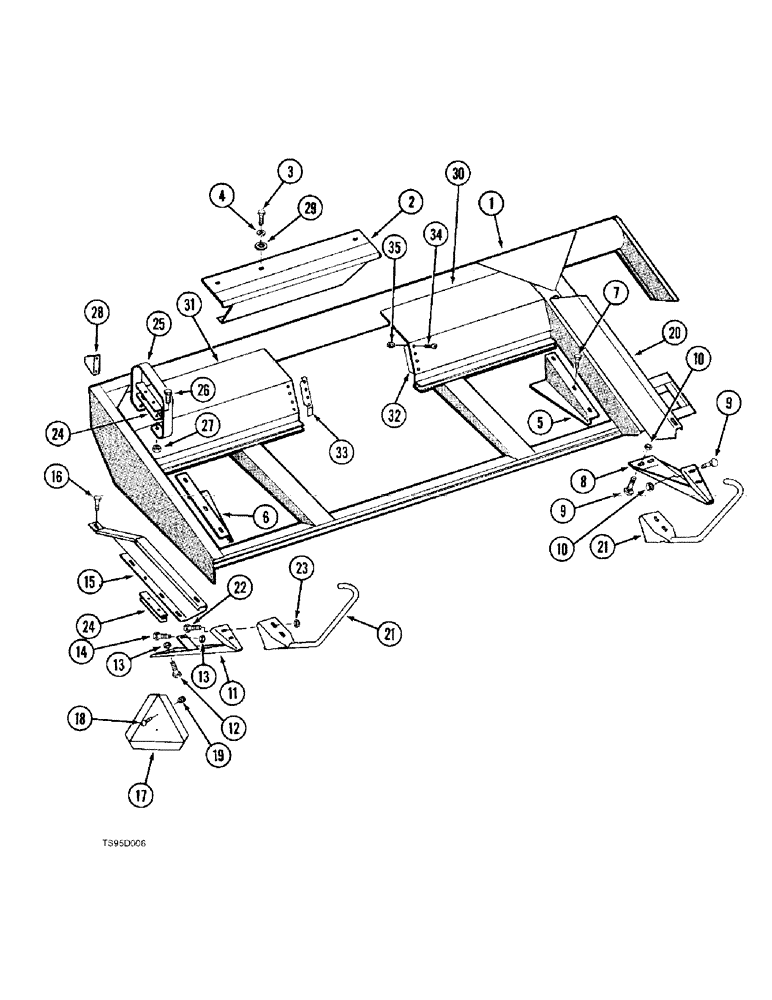

Запчасти Case IH 730 (9-02) - MAIN FRAME (09) - CHASSIS

1

90961C1

FRAME

- main, 21 foot, includes items 30 and 31

1шт.

1

1276415C1

FRAME

- main, 25 foot, includes items 30 and 31

1шт.

1

1276417C1

FRAME

- main, 30 foot, includes items 30 and 31

1шт.

1

1337501C1

FRAME

- main, 36 foot, includes items 30 and 31

1шт.

2

1276424C2

SHIELD

- center, 21, 25 and 30 foot, includes decal

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

1276420C1

DEFLECTOR

- left-hand

1шт.

6

1276421C1

DEFLECTOR

- right-hand

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

8

1276418C1

SHOE

- left

1шт.

9

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

10

231-5146

FLANGE NUT,3/8"-16

3шт.

11

1276422C1

SHOE

- right-hand, prior to P.I.N. 516 also order items 15 and 21

1шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

15

1276419C1

DIVIDER

- right-hand

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

17

321-4311

DECAL

- SMV emblem

1шт.

18

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, Pan Phillips, No. 10 NC x 1/2 inch

2шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

20

80683C1

DIVIDER

- left-hand

1шт.

21

80684C1

BRACKET

ROD - divider, prior to P.I.N. 516 also order items 11 and 15

1шт.

22

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

1281393C1

CHANNEL

- lamp mounting, P.I.N. 516 and after

2шт.

25

1281394C1

BAR

BRACKET - lamp mounting, P.I.N. 516 and after

1шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

1281392C1

STAND

BRACKET - lamp mounting, prior to P.I.N. 516

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch, flange head

2шт.

231-4116

NUT,3/8"-16, GB

NUT - hex self locking, 3/8 inch NC, distorted thread

2шт.

29

3420H

WASHER - flat

1шт.

30

1980972C1

SHEET

BACKSHEET - left-hand, 21 foot, welded

1шт.

30

1980973C1

SHEET

BACKSHEET - left-hand, 25 foot. welded

1шт.

30

1980974C1

SHEET

BACKSHEET - left-hand, 30 foot, welded

1шт.

30

1980975C1

SHEET

BACKSHEET - left-hand, 36 foot, welded

1шт.

31

1980970C1

SHEET

BACKSHEET - right-hand, 21 and 25 foot, welded

1шт.

31

1980971C1

SHEET

BACKSHEET - right-hand, 30 foot, welded

1шт.

31

1980969C1

SHEET

BACKSHEET - right-hand, 36 foot, welded

1шт.

32

109366A1

SUPPORT

- end, left-hand

1шт.

33

109367A1

SUPPORT

- end, right-hand

1шт.

34

77-56

SCREW,Truss, 5/16" - 18 x 3/8"

- machine, Phillips Truss Head, 5/16 NC x 3/8 inch

8шт.

35

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange, 5/16 NC

8шт.
