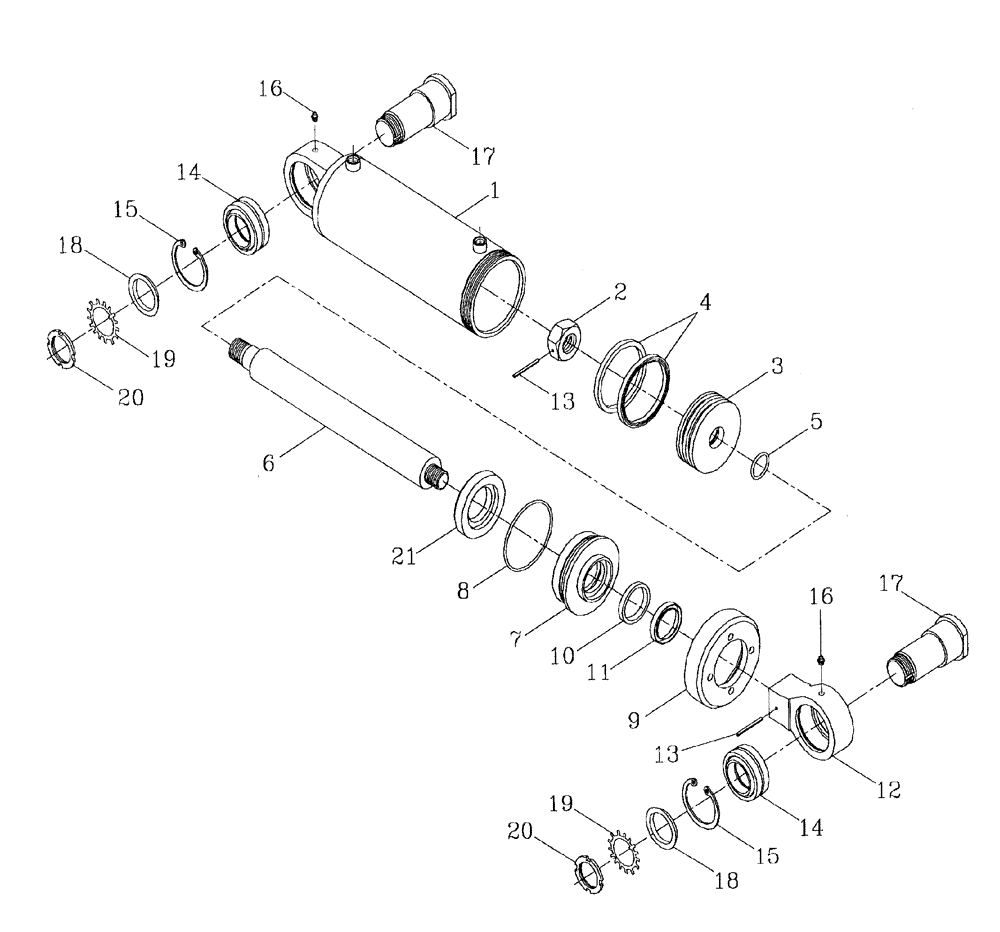

Запчасти Case IH AUSTOFT (B01-06) - HYDRAULIC CYLINDER (SUSPENSION) Hydraulic Components & Circuits

1

87250249

CYLINDER

BARREL, up to and including serial # 9171

1шт.

1

87254459

CYLINDER

BARREL, serial # 0772 and onwards

1шт.

2

87235036

NUT

NUT, up to and including serial # 9171

1шт.

2

00603124

NUT

serial # 9172 and onwards

1шт.

3

87233036

PISTON

up to and including serial # 9171

1шт.

3

87220063

PISTON

serial # 9172 and onwards

1шт.

4

00100721

WIPER SEAL

2шт.

5

00100027

O-RING

1шт.

6

87250248

CYLINDER

ROD, up to and including serial # 9171

1шт.

6

87254457

CYLINDER

ROD, serial # 9172 and onwards

1шт.

7

87233038

HEAD, up to and including serial # 9171

1шт.

7

87220061

HEAD

serial # 9172 and onwards

1шт.

8

00100118

O-RING

1шт.

9

87220060

NUT

1шт.

10

00100711

WIPER SEAL

1шт.

11

00100722

WIPER SEAL

WIPER

1шт.

12

87251104

CLEVIS COUPLING

END rod

1шт.

13

00607380

PIN

roll

2шт.

14

00141653

BEARING

2шт.

15

CI068000

CIRCLIP

2шт.

16

00138637

LUBE NIPPLE

grease

2шт.

17

87251109

PIN

2шт.

18

87251110

PIN

SPACER

2шт.

19

00144085

LOCKING DEVICE

WASHER

2шт.

20

00144084

NUT

lock

2шт.

21

87251466

SPACER, up to and including serial # 9171

1шт.

22

87250247

ASSY., up to and including serial # 9171

1шт.

22

87254460

ASSY., serial # 9172 and onwards

1шт.
