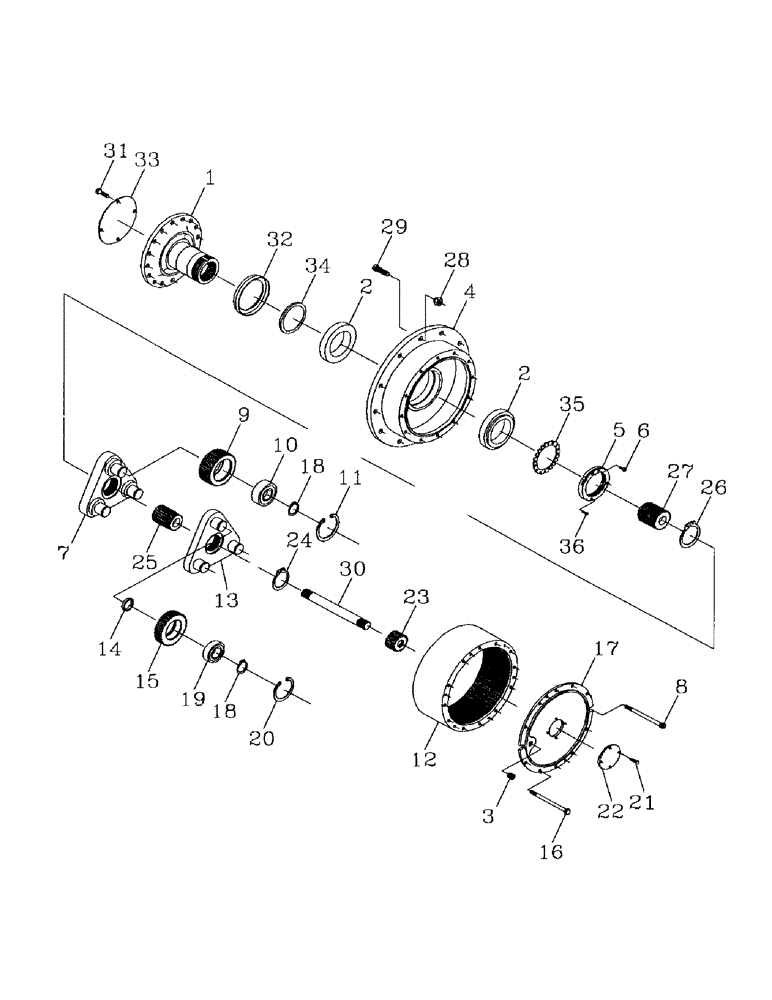

Запчасти Case IH AUSTOFT (A02-03) - EPICYCLIC HUB, SERIES 40 35:1 Mainframe & Functioning Components

1

87238848

STUB AXLE/STEERING S

STUB

1шт.

2

00146555

BEARING

2шт.

3

00605620

PLUG

1шт.

4

87237056

HUB

1шт.

5

86772200

LOCK NUT

LOCKNUT

1шт.

6

00605356

SCREW

2шт.

7

87239025

HUB CARRIER

PLANET CARRIER (secondary)

1шт.

8

FC112160

SCREW,M12 x 1.75 x 160mm

2шт.

9

87215160

PLANETARY GEAR,38T

PLANET GEAR (secondary)

3шт.

10

00140515

BEARING

3шт.

11

CI090000

CIRCLIP

3шт.

12

87237088

RING GEAR

1шт.

13

87215169

PLANETARY GEAR

PLANET CARRIER (primary)

1шт.

14

87215157

SPACER

3шт.

15

87215720

GEAR

PLANET GEAR (primary)

3шт.

16

FM112170

BOLT

10шт.

17

87223910

FLANGE COVER CAP

COVER

1шт.

18

CE040000

CIRCLIP

6шт.

19

00140516

BEARING

3шт.

20

CI080000

CIRCLIP

3шт.

21

FA108016

BOLT

4шт.

22

87215722

THRUST PLATE

THRUST PAD

1шт.

23

87215721

PINION

(input)

1шт.

24

CE063000

CIRCLIP

1шт.

25

87215159

PINION CARRIER ,19T

COUPLING

1шт.

26

CE075000

CIRCLIP

1шт.

27

87238849

SPLINED COUPLING

COUPLING

1шт.

28

00607915

NUT

WHEEL NUT

12шт.

29

00608020

STUD

12шт.

30

87215723

CLUTCH INPUT SHAFT

SHAFT (input)

1шт.

31

FA112020

BOLT

4шт.

32

00100798

OIL SEAL

SEAL

1шт.

33

86314484

COVER

(packing)

1шт.

34

87227869

SPACER

1шт.

35

87245816

LOCKING PLATE

LOCKING PLATE

1шт.

36

FC106012

SCREW,M6 x 12mm

1шт.

37

87238846

HUB ASSY.

ASSEMBLY

1шт.
