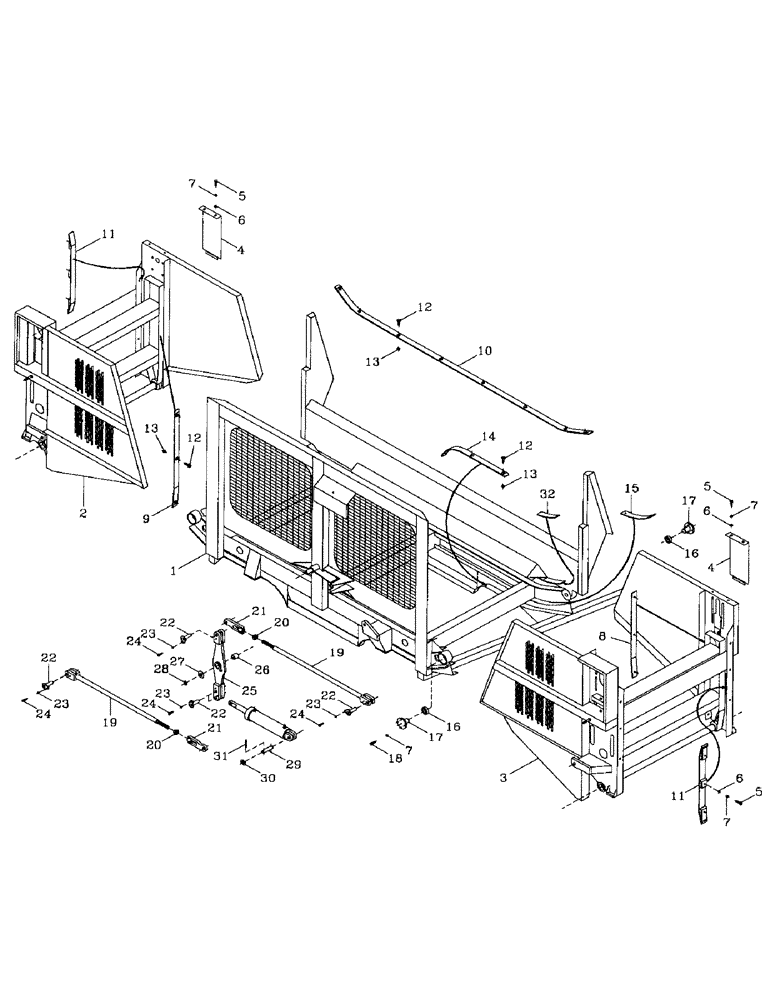

Запчасти Case IH AUSTOFT (A01-07) - CROSS CONVEYOR FRAME Mainframe & Functioning Components

1

87222833

CONVEYOR ASSY.

CONVEYOR

1шт.

2

87249099

CONVEYOR ASSY.

WING (RH)

1шт.

3

87249098

CONVEYOR ASSY.

WING (LH)

1шт.

4

87218138

COVER ASSY

COVER

2шт.

5

FA110025

BOLT

16шт.

6

WA100000

WASHER

16шт.

7

WB100000

WASHER

24шт.

8

87248770

WEAR STRIP

(LH)

2шт.

9

87249079

WEAR STRIP

(RH)

2шт.

10

87248549

WEAR STRIP

2шт.

11

87249080

WEAR STRIP

4шт.

12

FD110025

SCREW,Flat Hd, Csk, M10 x 1.5 x 25mm

48шт.

13

NC110000

NUT

NUT

48шт.

14

87236087

WEAR STRIP

4шт.

15

87242256

WEAR STRIP

4шт.

16

00141400

BEARING

4шт.

17

87218317

PIN

4шт.

18

FC110020

SCREW,M10 x 1.5 x 20mm

8шт.

19

87237653

TIE ROD

2шт.

20

00606250

NUT

2шт.

21

87248756

END

ROD END

2шт.

22

87237569

PIN

5шт.

23

WB080000

WASHER

5шт.

24

FA108020

BOLT

5шт.

25

87248751

CRANK

1шт.

26

00141593

BUSHING

BUSH

1шт.

27

00605814

WASHER

1шт.

28

CE024000

CIRCLIP

1шт.

29

87237671

PIN

1шт.

30

WA200000

WASHER

2шт.

31

SA050025

COTTER PIN

SPLIT PIN

2шт.

32

87218219

WEAR STRIP

4шт.
