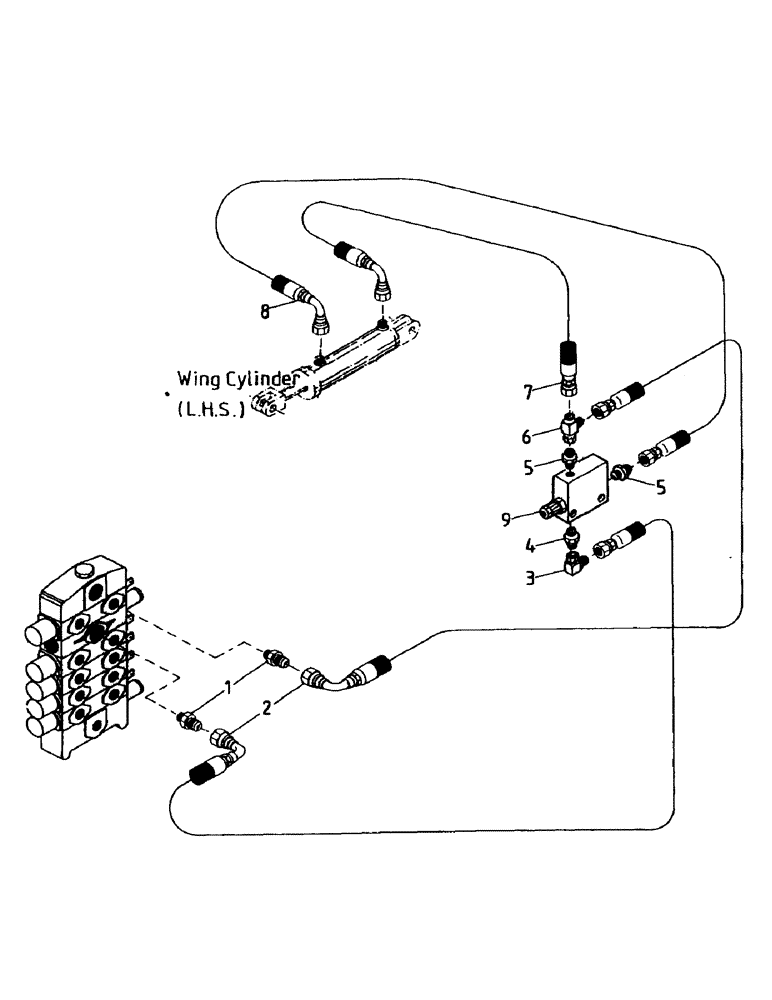

Запчасти Case IH AUSTOFT (B05-11) - HYDRAULIC CIRCUIT, CROSS CONVEYOR WINGS Hydraulic Components & Circuits

1

00400230

HYD CONNECTOR

NIPPLE

1шт.

2

86837700

HOSE,6.35mm ID x 3020mm L, SAE 100R17

1шт.

3

00402879

HYD CONNECTOR

ELBOW

1шт.

4

00404763

HYD CONNECTOR

NIPPLE

1шт.

5

00404526

HYD CONNECTOR

NIPPLE

1шт.

6

00404677

TEE

1шт.

7

87217893

HOSE

1шт.

8

82725600

HOSE

1шт.

9

HYDRAULIC COUNTER-BALANCE VALVE (refer page B04-03)

1шт.
