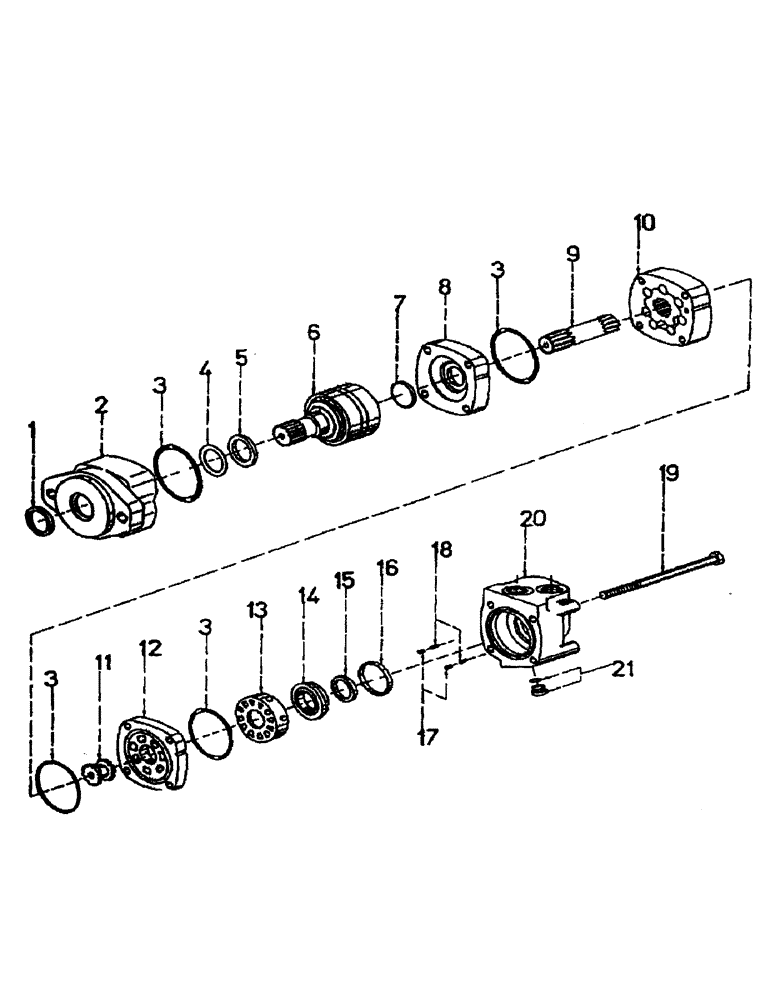

Запчасти Case IH AUSTOFT (B02-05) - HYDRAULIC MOTOR, CROSS CONVEYOR AND BIN ELEVATOR Hydraulic Components & Circuits

1

00404881

SEAL

1шт.

2

00407253

HOUSING, BEARING

HOUSING

1шт.

2

FA112040

BOLT

2шт.

2

WB120000

WASHER

2шт.

3

00404403

SEAL

O-RING

4шт.

4

00407252

RING

3шт.

5

00406205

ASSEMBLY

SEAL

1шт.

6

00407250

SHAFT

AND BEARING

1шт.

7

00404406

SEAL

1шт.

8

00406207

PLATE

1шт.

9

00404421

DRIVE

1шт.

10

00404422

GEROTOR

GEROLER

1шт.

11

00404410

HYDRAULIC VALVE

DRIVE

1шт.

12

00406210

PLATE

1шт.

13

00406211

HYDRAULIC VALVE

VALVE BLOCK

1шт.

14

00404414

RING

1шт.

15

00404415

SEAL

(inner)

1шт.

16

00406212

SEAL

(outer)

1шт.

17

00404417

PIN

2шт.

18

00404418

SPRING

2шт.

19

00404423

SCREW

BOLT

4шт.

20

00406214

HOUSING

1шт.

21

00404175

PLUG

1шт.

22

00405835

SEAL KIT

1шт.

23

00404335

MOTOR, HYDRAULIC

ASSEMBLY

1шт.

00404335R

REMAN-HYD MOTOR

AUSTOFT POWERHAUL (ELEVATING) TRANSPORTER (1/98-12/98)

1шт.

00404335C

CORE-MOTOR HYDRAULIC

Return Number

1шт.
