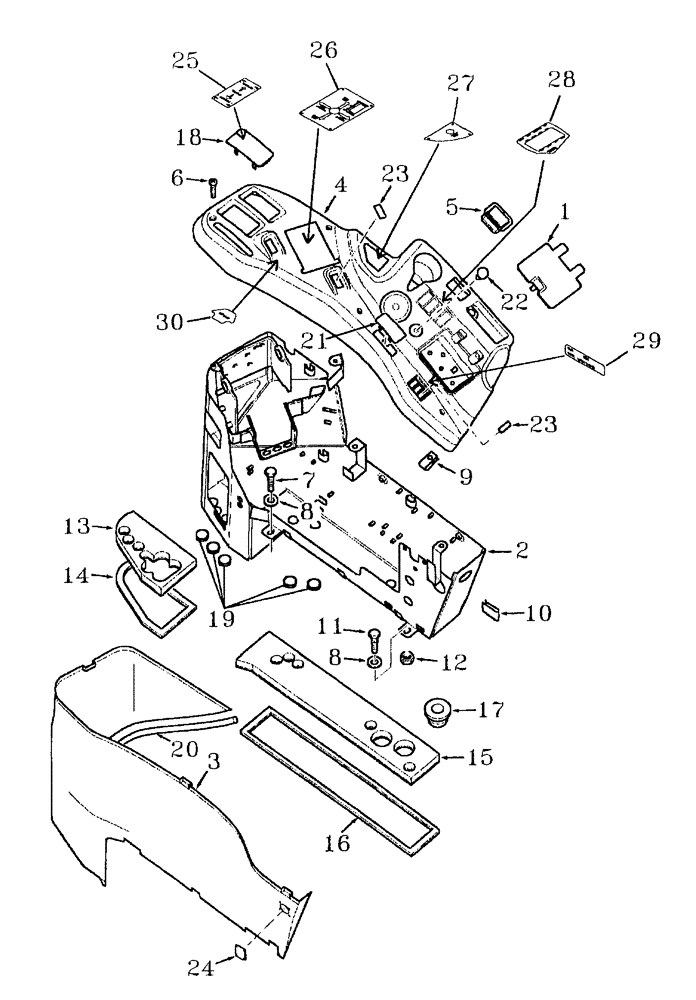

Запчасти Case IH AUSTOFT (A03[22]) - RIGHT SIDE CONSOLE Mainframe & Functioning Components

1

236756A2

COVER

1шт.

2

341142A2

CONSOLE (ride control)

1шт.

3

248865A4

PANEL

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

4

INF01020

COVER

1шт.

5

248395A1

ASH TRAY

1шт.

6

540-704

SCREW,Cross Pan Hd, M6 x 16

5шт.

7

514-620

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

9

833-40306

SPRING NUT,M6, U

1шт.

10

248972A1

NUT

3шт.

11

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

277653A1

INSULATOR

1шт.

14

239530A1

SEAL

1шт.

15

345075A1

INSULATOR

(rear)

1шт.

16

241965A1

SEAL

1шт.

17

182220A1

GROMMET

3шт.

18

241535A1

COVER

1шт.

19

00139952

GROMMET

5шт.

20

257549A2

SHAFT SEAL

TRIM

1шт.

21

302598A1

COVER

1шт.

22

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

23

245918C1

LENS

PLUG, blanking, rocker switch

2шт.

24

397903A1

COVER

1шт.

25

397254A1

DECAL (traction control)

1шт.

26

397251A1

DECAL (unload lever)

1шт.

27

397252A1

DECAL (parking brake)

1шт.

28

397250A1

DECAL (valve controls)

1шт.

29

399420A1

DECAL (rear washer/wiper)

1шт.

30

397253A1

DECAL (difflock)

1шт.
