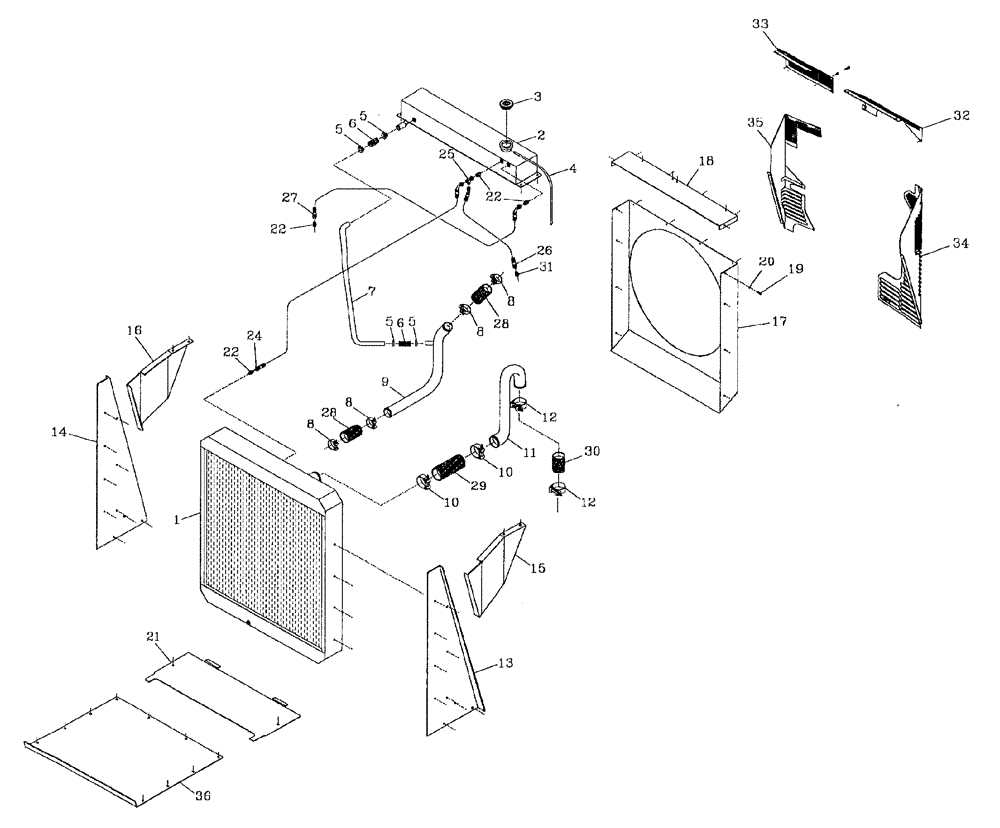

Запчасти Case IH AUSTOFT (C03[01]) - WATER RADIATOR & GUARDS Engine & Engine Attachments

1

383482A1

RADIATOR

1шт.

2

384570A1

TANK

EXPANSION

1шт.

3

00133028

RADIATOR CAP

1шт.

4

86308718

TUBE

1шт.

5

00131068

HOSE CLAMP

4шт.

6

86311310

HOSE,25.40 mm ID x 76.00 mm

2шт.

7

385642A1

TUBE

SHUNT LINE

1шт.

8

00180450

CLAMP

2шт.

9

385704A1

PIPE

TUBE (bottom)

1шт.

10

00180629

HOSE CLAMP

1шт.

11

383487A1

PIPE

TUBE (top)

1шт.

12

00180475

HOSE CLAMP

1шт.

13

384996A1

MOUNTING PARTS

MOUNT radiator (L.H.)

1шт.

14

349659A1

MOUNTING PARTS

MOUNT radiator (R.H.)

1шт.

15

385443A1

MOUNTING PARTS

MOUNT tank de-airation (L.H.)

1шт.

16

385398A1

MOUNTING PARTS

MOUNT tank de-airation (R.H.)

1шт.

17

384899A1

SHROUD ASSY.

1шт.

18

384907A1

SHROUD ASSY.

TOP

1шт.

19

FA106016

BOLT

6шт.

20

WB060000

SPRING WASHER

6шт.

21

385629A1

BAFFLE ASSY.

RADIATOR

1шт.

22

00400162

HYD CONNECTOR

NIPPLE

4шт.

24

87235277

HOSE,6.35mm ID x 470mm L, SAE 100R17

1шт.

25

00404677

TEE

1шт.

26

87256634

HOSE ASSY.

1шт.

27

86302756

HOSE ASSY.

1шт.

28

83117600

HOSE,50.8mm ID x 100mm L

2шт.

29

87235766

HOSE,63.50 mm ID x 75.00 mm

1шт.

30

87207700

RADIATOR HOSE

1шт.

31

87229194

HYD CONNECTOR

NIPPLE restricted

1шт.

32

396738A1

SHROUD ASSY.

GUARD fan (top L.H.S.)

1шт.

33

396739A1

SHROUD ASSY.

GUARD fan (top R.H.S.)

1шт.

34

393418A1

SHROUD ASSY.

GUARD fan (bottom L.H.S.)

1шт.

35

393417A1

SHROUD ASSY.

GURAD fan (bottom R.H.S.)

1шт.

36

395111A1

COVER ASSY

GRILLE (lower radiator)

1шт.
