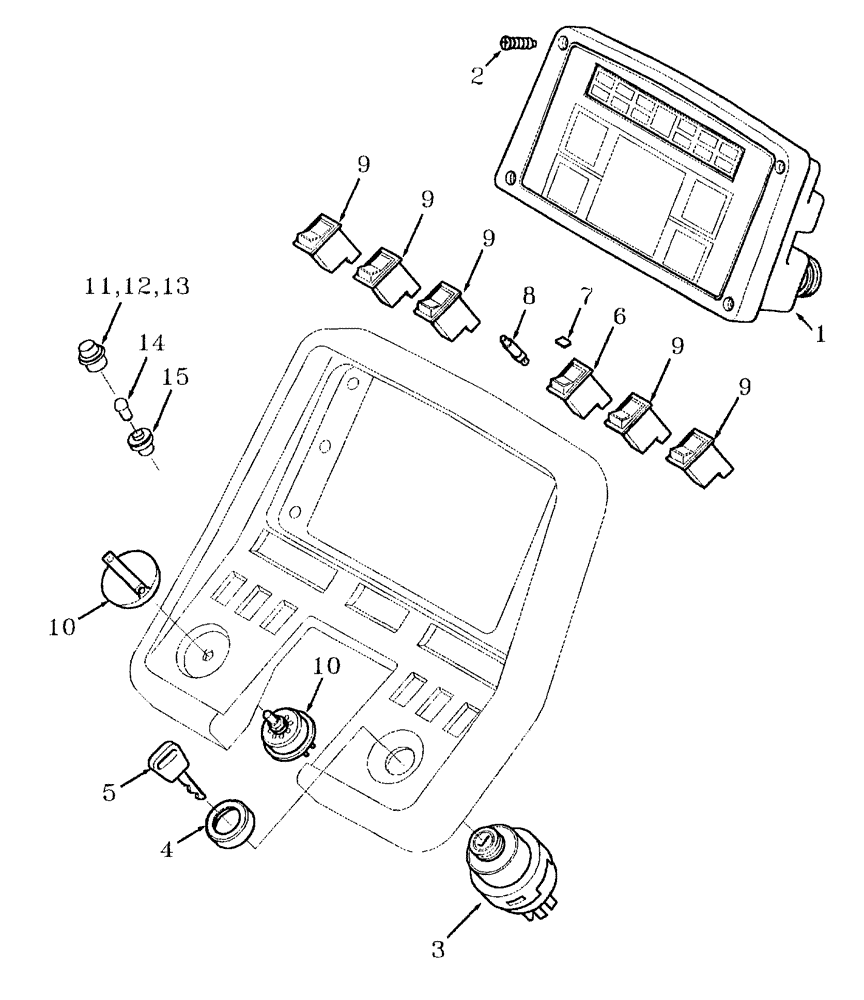

Запчасти Case IH AUSTOFT (A03[16]) - INSTRUMENT PANEL Mainframe & Functioning Components

1

INSTRUMENT cluster refer page A03.17

1шт.

2

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

3

D134737

IGNITION SWITCH

SWITCH ignition

1шт.

4

A77314

NUT

1шт.

5

A77313

SET OF 2 KEYS

IGNITION; metal without padding

1шт.

6

194114A1

SWITCH ASSY

(includes items 7 & 8)

1шт.

7

NSS

NOT SOLD SEPARAT

LENS (red)

1шт.

8

134608A1

LAMP SOCKET

BULB

1шт.

9

373786A1

SWITCH

5шт.

10

197168A1

SWITCH

ASSY.

1шт.

11

00139763

LIGHT

LENS (green)

1шт.

12

00139761

LIGHT

LENS (red)

1шт.

13

376682A1

LENS (blue)

1шт.

14

00180710

BULB

3шт.

15

00180531

LAMP

HOLDER

3шт.
