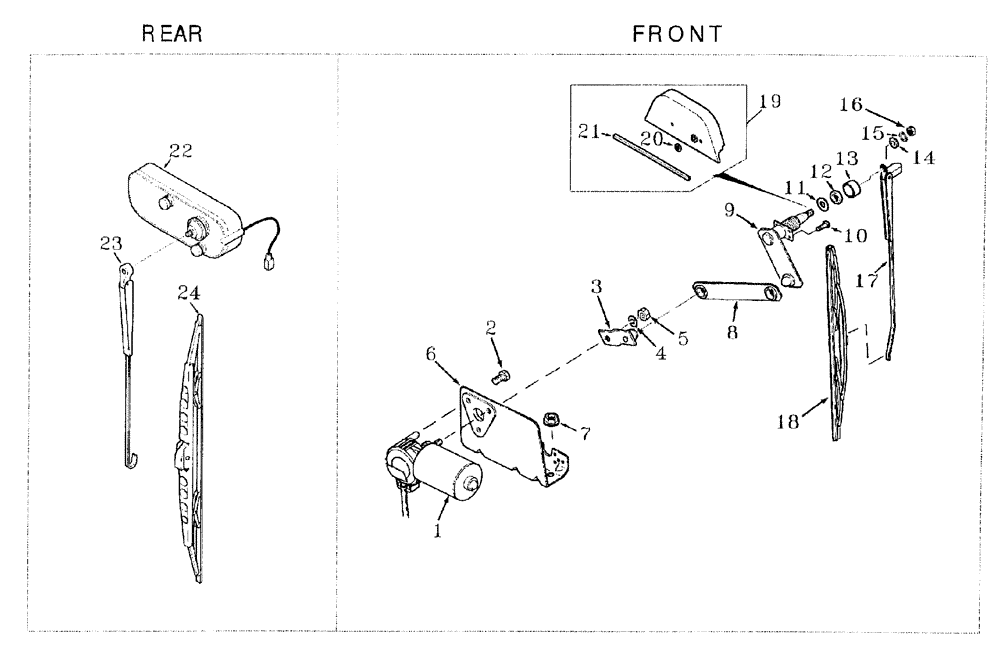

Запчасти Case IH AUSTOFT (A03[11]) - WINDSCREEN WIPERS-FRONT & REAR Mainframe & Functioning Components

1

A186256

WIPER MOTOR,12V

ASSY. (front)

1шт.

2

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

ASSY.

3шт.

3

N3860

ARM

1шт.

4

N14111

WASHER

1шт.

5

825-1408

NUT,M8, Cl 8

1шт.

6

N8359

SUPPORT

BRACKET

1шт.

7

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

8

N8358

LINK

LINK

1шт.

9

N14112

SHAFT

1шт.

10

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

4шт.

11

L112088

WASHER

1шт.

12

L112087

NUT

1шт.

13

L112081

CAP

1шт.

14

L112089

WASHER

1шт.

15

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

16

825-1408

NUT,M8, Cl 8

1шт.

17

236195A1

WIPER ARM

ARM, WIPER

1шт.

18

236194A1

WIPER BLADE

BLADE, WIPER (front)

1шт.

19

229603A2

PROTECTOR

1шт.

20

229601A1

WIPER SEAL

1шт.

21

229600A1

WIPER SEAL

1шт.

22

237163A2

MOTOR, ELECTRIC

ASSY. (rear)

1шт.

23

186222A1

WIPER ARM

1шт.

24

108436A2

WIPER BLADE

BLADE, WIPER (rear)

1шт.
