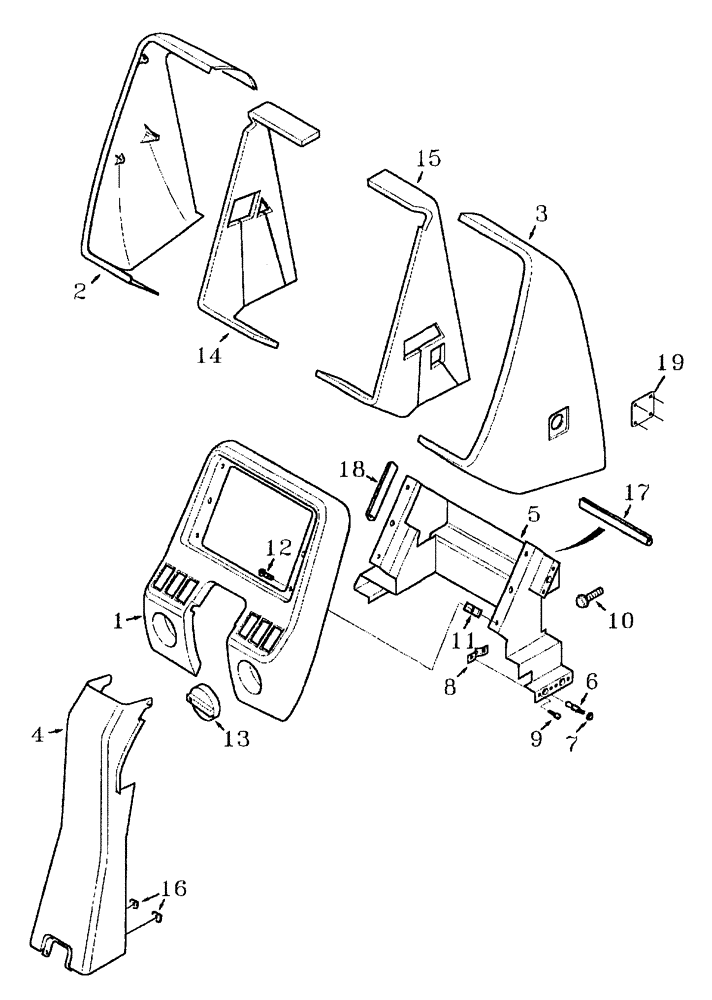

Запчасти Case IH AUSTOFT (A03[10]) - FRONT CONSOLE Mainframe & Functioning Components

1

194347A4

PANEL

COVER

1шт.

2

194347A4

PANEL

COVER

1шт.

3

194349A6

PANEL

COVER

1шт.

4

194350A4

PANEL

COVER

1шт.

5

194354A8

SUPPORT ASSY.

1шт.

6

1977929C1

STUD,M5 x 0.8

6шт.

7

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

6шт.

8

1961435C1

LATCH

6шт.

9

151-553

RIVET,Pop, 1/8" x .337"

12шт.

10

779-34395

SELF-TAP SCREW,Hex Hd, M4.8 x 9.5

4шт.

11

131-892

SPRING NUT,Tinn, U, #10-16

6шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

4шт.

13

1331046C2

KNOB

1шт.

14

246255A4

INSULATOR

PANEL

1шт.

15

246256A4

INSULATOR

PANEL

1шт.

16

222858A1

CLASP

FASTENER

2шт.

17

256196A1

ROLL

TRIM

1шт.

18

256196A1

ROLL

TRIM

1шт.

19

397903A1

COVER

1шт.
