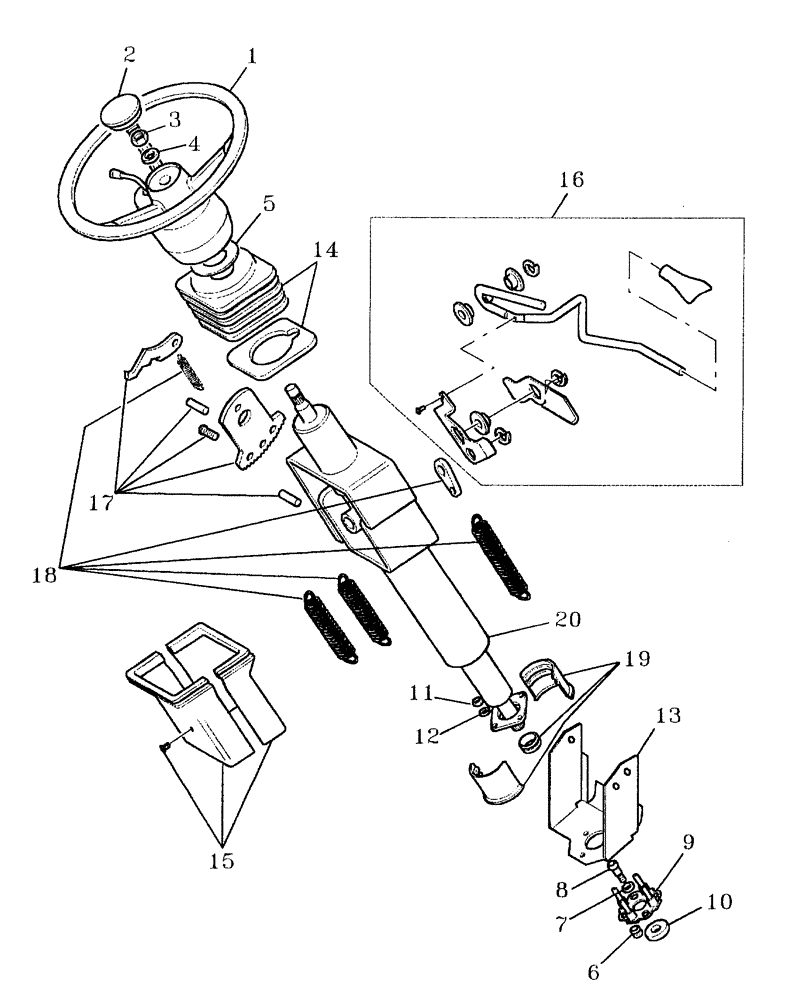

Запчасти Case IH AUSTOFT (A03[09]) - STEERING COLUMN Mainframe & Functioning Components

1

224818A3

STEERING WHEEL

1шт.

2

224819A2

CAP

1шт.

3

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

4

895-11014

WASHER,M14 x 28 x 2.5

1шт.

5

1977448C2

WASHER

1шт.

6

187282A2

GROMMET

4шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

561-702

HEX SOC SCREW,M10 x 34.4, 13 x 16mm shldr, Cl 12.9

4шт.

9

256390A2

SUPPORT ASSY.

BRACKET ASSY.

1шт.

10

257132A1

SEAL,25mm ID x 82mm OD x 15mm Thk

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

193345A2

SUPPORT

BRACKET

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

318946A1

SET OF PARTS

KIT (bellows)

1шт.

15

284997A1

PACKAGE, REPAIR

KIT (cover)

1шт.

16

284996A1

SET OF PARTS

KIT (lever)

1шт.

17

318942A1

REPAIR KIT

KIT (tilt)

1шт.

18

248993A1

KIT (spring)

1шт.

19

318943A1

BEARING ASSY

KIT (bearing)

1шт.

20

NSS

NOT SOLD SEPARAT

COLUMN

1шт.

21

188823A7

STEERING COLUMN

COMP (Incl's 14-20)

1шт.
