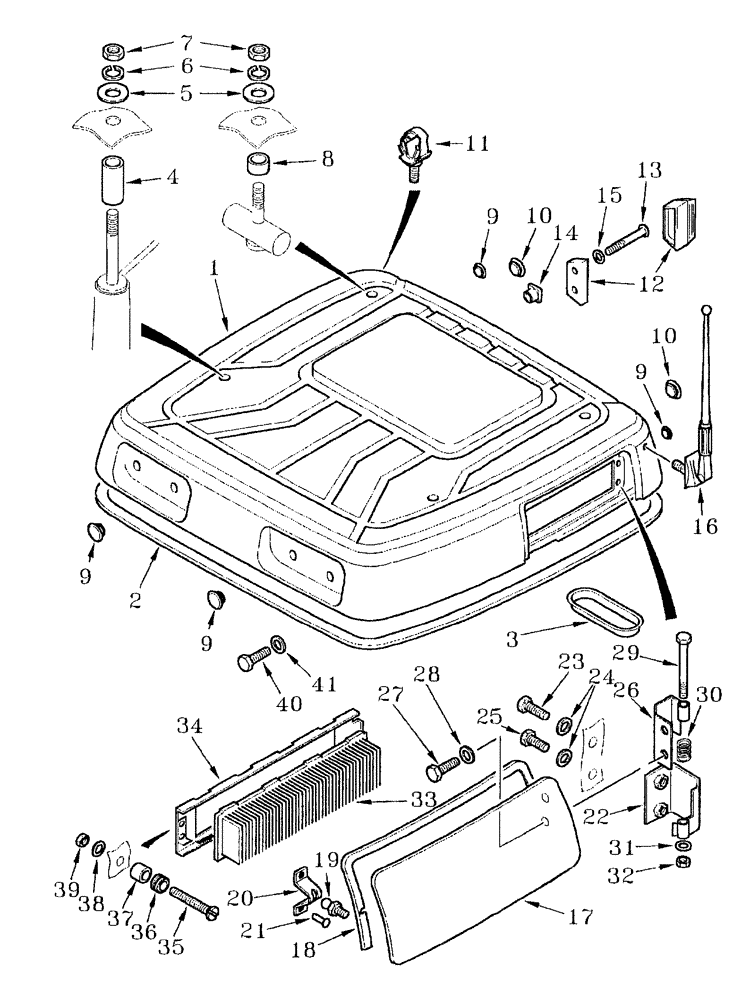

Запчасти Case IH AUSTOFT (A03[06]) - ROOF Mainframe & Functioning Components

1

225655A2

ROOF

ASSY.

1шт.

2

229602A3

RUBBER SEAL,25mm W x 5334mm L x 25mm Thk

1шт.

3

236557A1

PLUG

4шт.

4

NSS

NOT SOLD SEPARAT

SPACER

2шт.

5

221429A2

SPACER

4шт.

6

495-81140

WASHER,13/32" x 1 1/4" x .060"

4шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

8

223412A3

SPACER

2шт.

9

1340319C1

PLUG

6шт.

10

353-426

PLUG,1" Hole, Nylon

4шт.

11

233106A1

CLIP

8шт.

12

248700A1

LIGHT

LAMP ASSY.

2шт.

13

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

4шт.

14

228004A1

NUT

INSERT

4шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

16

197745A1

ANTENNA

1шт.

17

225657A3

COVER ASSY

(Includes Item 18)

1шт.

18

193053A2

SEALING STRIP,9.5mm W x 965mm L x 3mm Thk

1шт.

19

240699A2

BALL JOINT

STUD

1шт.

20

1961435C1

LATCH

1шт.

21

230206A2

RIVET

2шт.

22

228569A2

HINGE

ASSY.

1шт.

23

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

24

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

25

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

26

245367A2

HINGE

ASSY.

1шт.

27

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

28

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

29

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

30

228573A2

SPRING

1шт.

31

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

32

832-10406

NUT,M6 x 1, Cl 8

1шт.

33

248124A1

AIR FILTER

ELEMENT

1шт.

34

248881A1

SUPPORT

BRACKET ASSY.

1шт.

35

840-1425

SCREW,Pan, M4 x 25mm, Cl 4.8

1шт.

36

228567A1

SUPPORT

BUSHING

1шт.

37

229599A2

SPACER

1шт.

38

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

39

824-1404

NUT,M4, Cl 5

1шт.

40

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

41

892-11006

LOCK WASHER,M6

2шт.
